AE5400

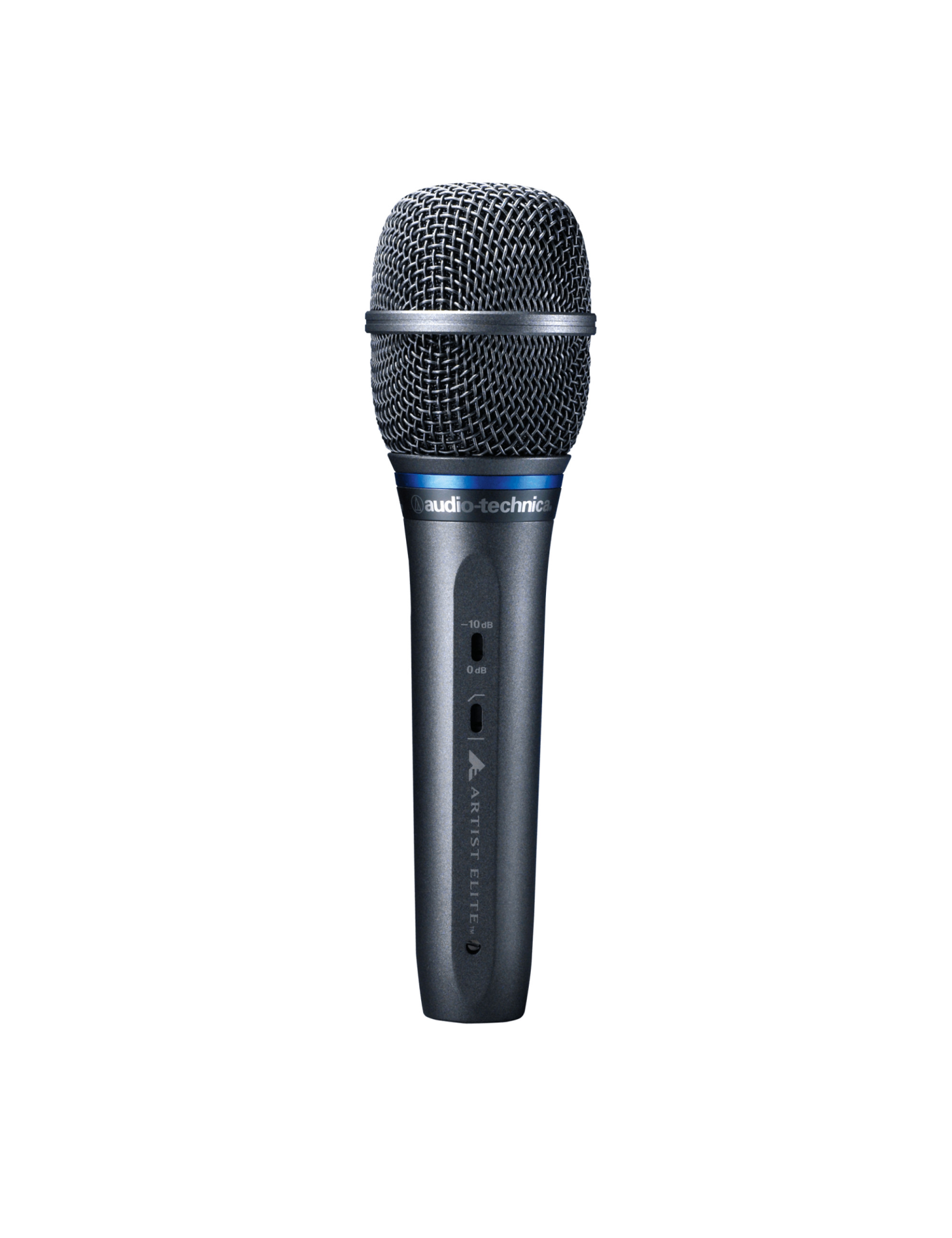

Audio-Technica AE5400 – Cardioid Large-Diaphragm Condenser Microphone, Studio-Quality Sound on Stage

The Audio-Technica AE5400 is a cardioid large-diaphragm condenser microphone delivering exceptional sound quality, thanks to the use of the same capsule as the renowned AT4050 studio microphone. Its sound reproduction is clear, natural, and highly detailed, ensuring faithful vocal capture in any situation.

Designed for the stage, the AE5400 features a robust die-cast body and a reinforced stainless steel grille composed of three layers: polyurethane foam, hardened steel, and fine mesh. This structure provides maximum protection against shocks, plosives, and sibilance, while offering outstanding durability.

Its internal shock mount drastically reduces handling noise and vibrations. With an 80 Hz low-cut filter and a switchable –10 dB attenuator, the AE5400 adapts to all vocal styles and the most demanding stages while maintaining precise, controlled sound.

With its ergonomic design, comfortable handling, and included Quiet-Flex™ mount, it stands as a professional reference microphone for discerning vocalists. The AE5400 delivers true studio sound… on stage.

Technical Specifications:

• Type: Large-diaphragm condenser microphone


• Polar Pattern: Cardioid


• Frequency Response: 20 – 20000 Hz


• Low-Cut Filter: 80 Hz, 12 dB/octave


• Sensitivity: –40 dB (10.0 mV) ref 1V/Pa


• Max SPL: 147 dB SPL (1% THD); 157 dB SPL with –10 dB attenuator


• Dynamic Range: 133 dB (1 kHz at max SPL)


• Signal-to-Noise Ratio: 80 dB


• Phantom Power: 11 – 52 V DC, 4 mA


• Weight: 330 g


• Dimensions: Length 179 mm; Head Ø 50 mm; Tapered body 33 → 22 mm


• Connector: Built-in 3-pin XLRM

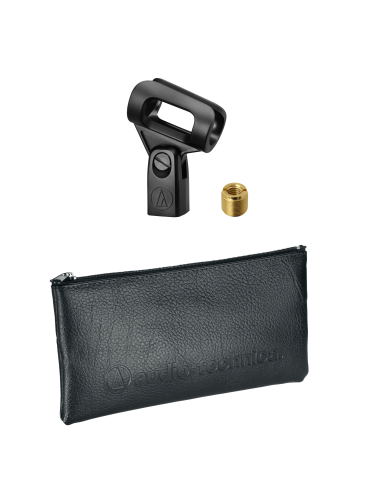

• Included Accessories: Quiet-Flex™ AT8470 mount, 5/8”-27 → 3/8”-16 adapter, soft protective pouch



Key Points:

• AT4050 capsule: studio-quality sound, clear and natural.


• Large diaphragm: high precision, richness, and sonic detail.


• Multi-layer grille: optimal plosive and sibilance reduction.


• Internal shock mount: nearly eliminates handling noise.


• Low-cut filter + attenuator: perfectly adapts to all voices and stages.


• Robust metal body: guaranteed reliability and longevity.


• Cardioid pattern: effective isolation of the vocal source.


• Included Quiet-Flex™ mount: flexible positioning and vibration reduction.
