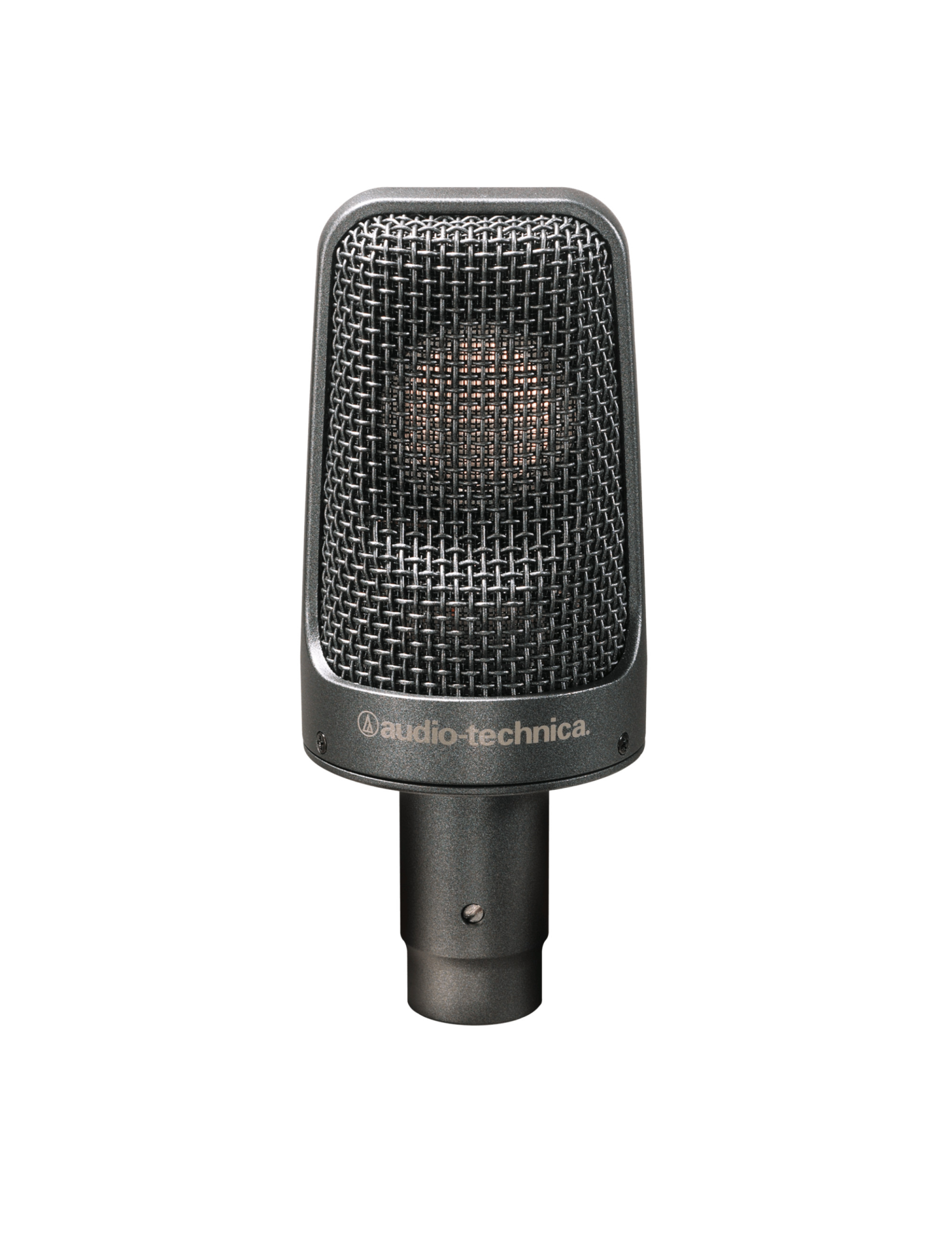

Audio-Technica AE3000 – Electret Cardioid Microphone for Percussive and Acoustic Instruments
The Audio-Technica AE3000 is an electret condenser cardioid microphone designed to deliver exceptional sound performance on acoustic and percussive instruments. Thanks to its ability to handle very high SPL levels and its large-diaphragm capsule, it excels on acoustic guitars, guitar amps, toms, overheads, percussion, snare drums, brass, timpani, and many other demanding sources.
Compact (only 11.5 cm), discreet, and easy to position, the AE3000 provides remarkable transparency thanks to its open-head design and tapered grille, allowing the capsule to be placed very close to the sound source. Its side-address design ensures optimal capture, even in complex stage setups.
Built to withstand the most demanding professional environments, the AE3000 features a 80 Hz low-cut filter and a -10 dB attenuator, offering great versatility for any live or studio recording situation. Made in Japan and backed by a 15-year warranty, it is a must-have reference for sound engineers seeking reliability, precision, and durability.
Technical Specifications:
- Type: Electret condenser microphone
- Polar Pattern: Cardioid
- Frequency Response: 20 - 20000 Hz
- Low-Cut Filter: 80 Hz, 12 dB/octave
- Sensitivity: –43 dB (7.0 mV) ref 1V/Pa
- Max SPL: 148 dB SPL (1% THD); 158 dB SPL with –10 dB pad
- Dynamic Range: 137 dB
- Signal-to-Noise Ratio: 83 dB
- Phantom Power: 11 – 52 V DC, 3 mA
- Dimensions: 115.5 mm (L) × 48 mm (Ø max.)
- Weight: 170 g
- Connector: Built-in 3-pin XLRM

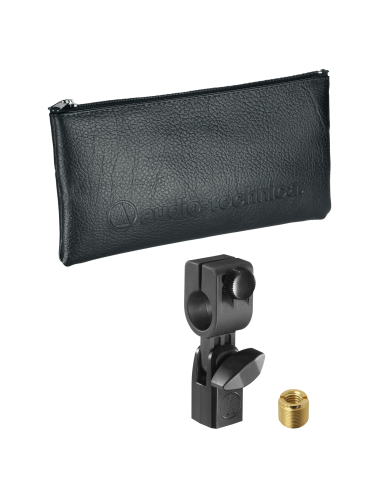

- Included Accessories: AT8471 clip, 5/8”-27 → 3/8”-16 adapter, soft protective pouch
- Applications: Toms, snare, overheads, percussion, acoustic guitars, guitar amps, brass, timpani
- Manufacturer Warranty: 15 years
Key Points:
- Compact and discreet microphone: only 11.5 cm, ideal for tight setups.
- Large-diaphragm capsule: high precision, transparency, and natural response.
- Handles up to 158 dB SPL with –10 dB pad engaged.
- 137 dB dynamic range for faithful capture of the fastest transients.
- Low-cut filter + pad for maximum flexibility depending on the source.
- Side-address design: optimal placement facing the source.
- Tapered grille allows very close placement to the instrument.
- Included AT8471 shock mount to reduce mechanical noise.
- Made in Japan: durability, reliability, consistent sound.
