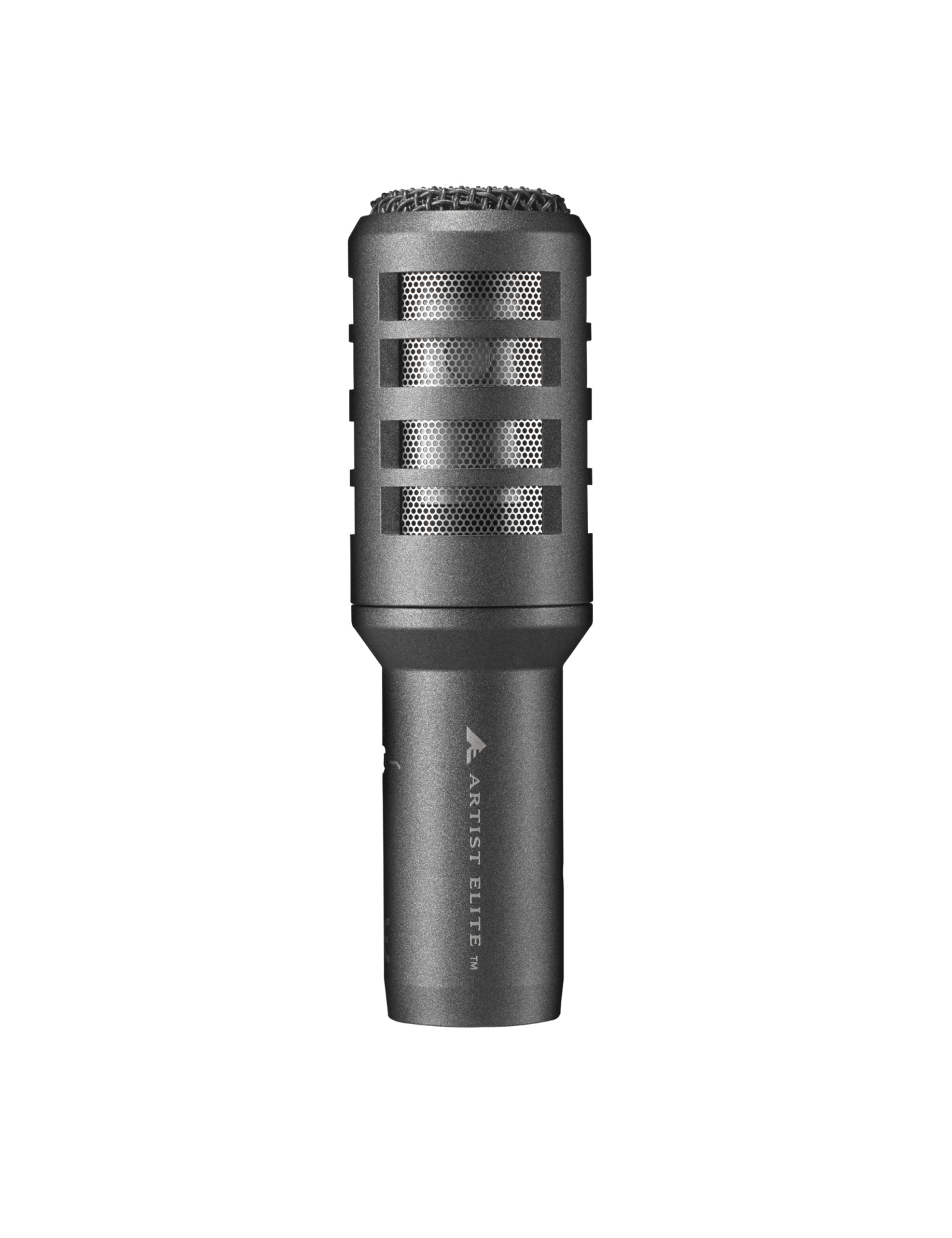

Audio-Technica AE2300 – Cardioid Dynamic Instrument Microphone
The Audio-Technica AE2300 is a high-performance cardioid dynamic microphone designed for professional instrument capture. As part of the prestigious Artist Elite series, it comes with an exceptional 15-year manufacturer warranty, ensuring long-term reliability for demanding studio and live applications.
Featuring a unique dual-dome diaphragm, the AE2300 delivers enhanced high-frequency response and excellent transient accuracy, providing clear, punchy and highly detailed instrument reproduction. Its design ensures minimal off-axis coloration, maintaining nearly identical frequency response at 0°, 90° and 180° for superior phase coherence regardless of microphone placement.

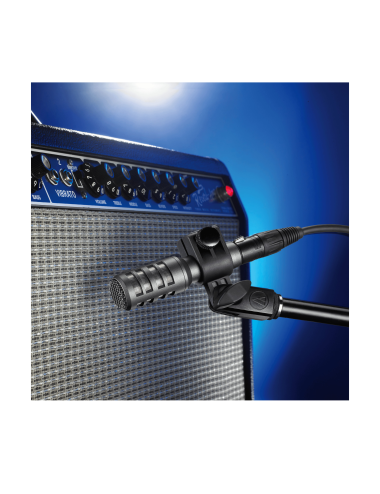

The microphone also incorporates a switchable low-pass filter (6 kHz), allowing the reduction of unwanted high-frequency harshness without affecting the overall tonal balance of the instrument. Built to withstand extremely high sound pressure levels, the AE2300 excels on snare drums, toms, guitar amps, brass, percussion and more.
Compact, rugged and easy to position, it features a durable metal housing suitable for both stage and studio use. Supplied with an AT8471 isolation clamp, a thread adapter and a protective carrying pouch, the AE2300 is ready for any professional environment.
Technical Specifications:
- Type: Dynamic instrument microphone
- Capsule: Dynamic, exclusive dual-dome diaphragm
- Polar Pattern: Cardioid
- Frequency Response: 60 – 20,000 Hz
- Sensitivity: –57 dB (1.4 mV) ref. 1V at 1 Pa
- Low-pass Filter: Switchable, 6 kHz cutoff
- Off-axis Coloration: Minimal, uniform at 0° / 90° / 180°
- SPL Handling: Excellent, ideal for high-level sources
- Dimensions: 95.6 mm (length) × 28 mm (max. diameter)
- Weight: 138 g
- Construction: Rugged metal body
- Output Connector: Integrated 3-pin XLRM
- Included Accessories: AT8471 isolation clamp, 5/8”-27 → 3/8”-16 thread adapter, soft protective pouch
- Manufacturer Warranty: 15 years (Artist Elite series)
Key Points:
- Exclusive dual-dome diaphragm for improved clarity and enhanced transient response.
- Minimal off-axis coloration ensuring exceptional phase coherence at all angles.
- Switchable low-pass filter to remove unwanted harshness and high-frequency buildup.
- Outstanding high-SPL handling – ideal for snare, toms, electric guitar, brass and more.
- Rugged all-metal construction for reliable stage and studio use.
- Compact design allowing discreet and easy instrument positioning.
- 15-year warranty for exceptional long-term durability.
- Complete accessory kit with clamp, adapter and protective pouch.
