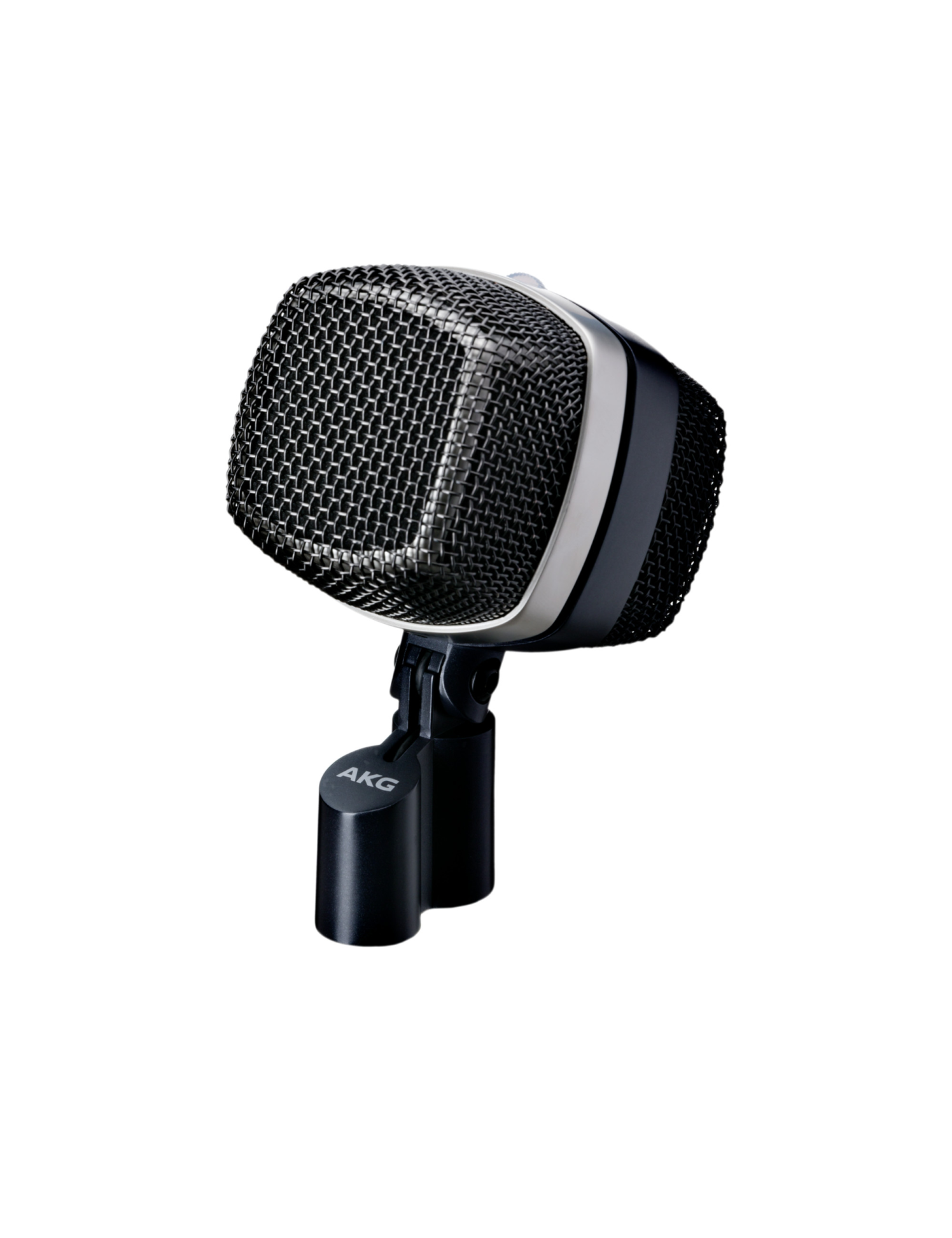

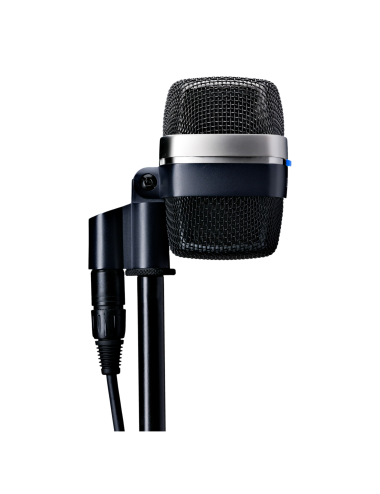

AKG D12 VR – Reference dynamic microphone for kick drum
The AKG D12 VR is a large-diaphragm dynamic microphone specifically designed for capturing kick drums and low-frequency-rich instruments. Thanks to its ultra-thin diaphragm, it delivers exceptionally deep, accurate and punchy low end while maintaining outstanding definition on the attack.
Its acoustic design integrates an optimized resonance chamber that increases low-frequency pressure without sacrificing clarity. The legendary transformer from the C414 gives the D12 VR a warm, organic and highly musical character, even at very high SPL levels.
The microphone also offers three switchable active filters — powered by 48 V phantom power — allowing instant sound-shaping depending on the desired style: enhanced low end, scooped mids, or boosted attack. When a filter is activated, the microphone automatically applies a -10 dB attenuation to maintain clean and controlled recording levels.
Without phantom power, the D12 VR operates in passive mode, delivering a natural, raw and authentic sound ideal for engineers seeking a neutral starting point before processing.
With extreme resistance to sound pressure levels up to 164 dB SPL, a robust all-metal construction and a wide frequency response, the D12 VR stands out as an essential choice for professional studios and live environments when capturing kick drums, heavy percussion and very powerful sound sources.
Specifications:
- Type: Large-diaphragm dynamic microphone
- Polar Pattern: Cardioid
- Frequency Response: 17 – 17000 Hz
- Sensitivity: 1.2 mV/Pa
- Electrical Impedance: 200 ohms
- Recommended Load Impedance: ≥ 1,000 ohms
- Maximum SPL: 164 dB SPL (0.5% THD)
- Technologies:
• Ultra-thin diaphragm optimized for low frequencies
• Low-frequency optimized acoustic chamber
• Three switchable active filters (require phantom power)
• Passive mode when phantom power is off
• Built-in AKG C414 transformer
- Connector: Balanced 3-pin XLR (pin 2 hot)
- Dimensions:
• Length: 101 mm
• Height: 125 mm
• Width / Diameter: 66 mm
- Weight: 500 g
- Applications: Professional studio, live, high-power instrument recording
- Instruments: Kick drum, low toms, heavy percussion, low-frequency instruments
- Included Accessories: Microphone carrying pouch
Key Points:
- High-end dynamic microphone dedicated to kick drum and powerful low-frequency sources.
- Ultra-thin diaphragm delivering deep, accurate and well-defined low end.
- Three active filtered modes for instant sound-shaping flexibility.
- Passive mode for natural sound reproduction without phantom power.
- C414 transformer providing characteristic analog warmth.
- Extreme SPL handling (164 dB) ideal for very powerful sources.
- Robust metal construction built for demanding professional use.
- Perfect for kick drum, low toms and heavy percussion.
