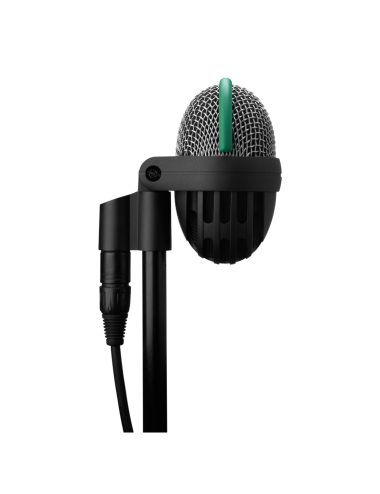

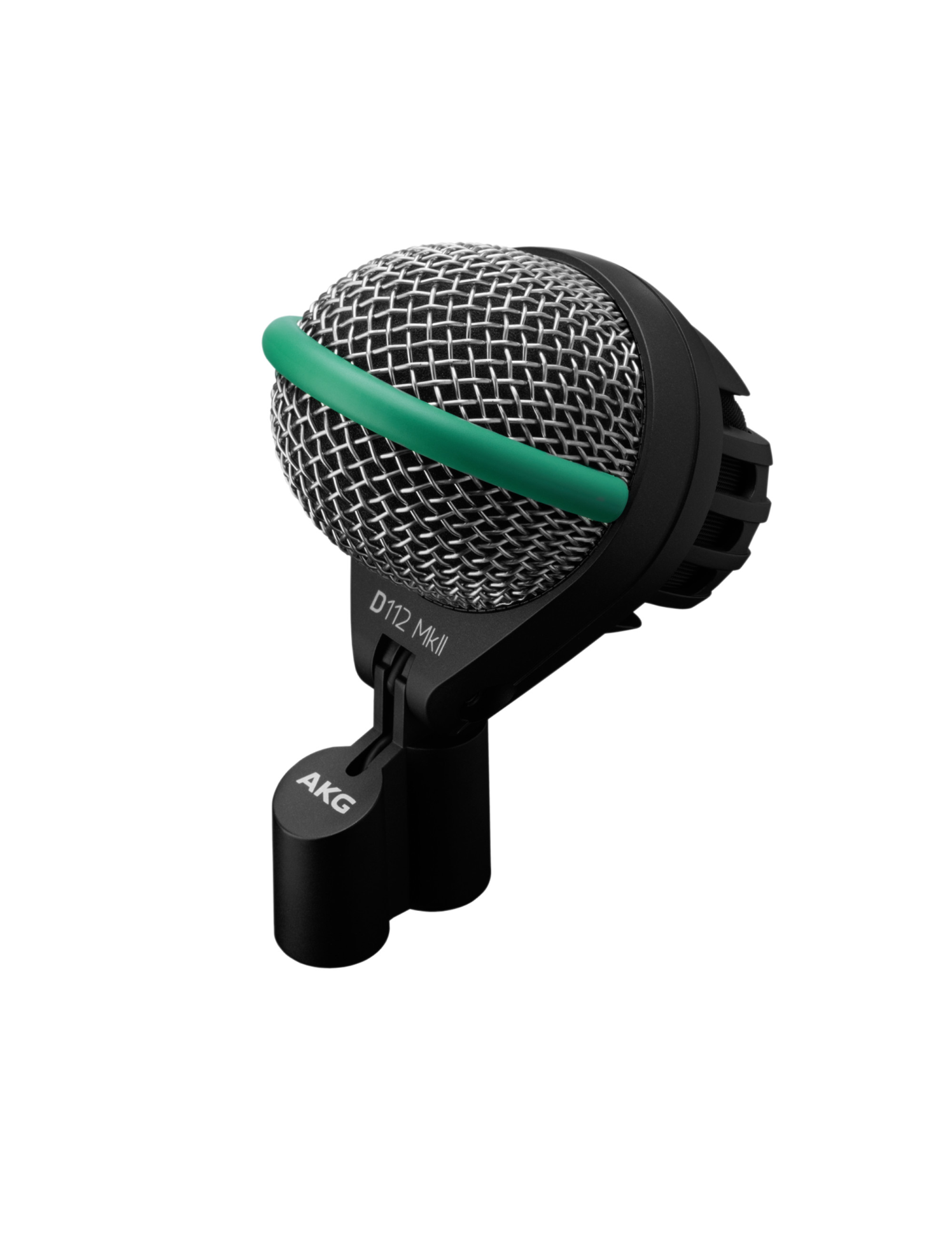

AKG D112 MKII – The reference for bass drum miking
A true industry standard for more than thirty years, the AKG D112 is widely recognized as one of the best bass drum microphones ever designed. The D112 MKII continues this legacy by retaining the powerful sonic signature of the original model while integrating a flexible mount directly built into the microphone for even easier and more versatile positioning.
Equipped with a large diaphragm dynamic capsule, the D112 MKII delivers extremely accurate reproduction of low frequencies. Its very low resonance frequency captures deep and powerful bass, while a presence boost around 4 kHz ensures excellent attack definition, even in dense mixes or at high stage volumes.
Thanks to its rugged design and its ability to handle sound pressure levels above 160 dB without distortion, this microphone is perfectly suited for capturing the most powerful instruments. It also features an integrated hum-compensation coil that effectively reduces interference and unwanted noise.
The famous bass resonance chamber gives the D112 MKII its unique sonic character: massive, punchy and tightly controlled low-end response that often works perfectly without additional equalization as soon as the fader is raised.
Designed for both stage and studio use, the D112 MKII excels on bass drum, but is also an excellent choice for miking bass cabinets, floor toms, brass instruments and other low-frequency sources.
Technical specifications:
- Type : Dynamic microphone
- Capsule : Large diaphragm dynamic capsule
- Polar pattern : Cardioid
- Sound signature : Powerful deep bass with precise attack and enhanced presence
- Frequency response : 20 – 17000 Hz
- Maximum SPL : > 160 dB SPL (calculated)
- Sensitivity : 1.8 mV/Pa (-55 dBV)
- Output impedance : 210 ohms
- Recommended load impedance : ≥ 2000 ohms
- Technologies :
• Dedicated bass resonance chamber
• Integrated hum-compensation coil
• Integrated flexible mount
- Applications :
• Bass drum
• Drums and percussion
• Bass amplifiers
• Guitar amplifiers
• Low brass instruments
- Operating temperature range : -10 °C to +60 °C
- Dimensions :
• Length: 115 mm
• Height: 126 mm
• Diameter: 70 mm
- Weight : 300 g
- Audio output : Balanced 3-pin XLR
Key Points :
- Industry-standard dynamic bass drum microphone used on stage and in studios for more than 30 years.
- Large diaphragm design delivering powerful and accurate low-frequency reproduction.
- Integrated flexible mount for quick and versatile positioning.
- Dedicated bass resonance chamber producing deep and punchy low-end response.
- Exceptional SPL capability (>160 dB) without distortion.
- Integrated hum-compensation coil effectively reducing interference and noise.
- Often requires no additional EQ thanks to its optimized tonal balance.
- Ideal for bass drum, bass cabinets and low-frequency instruments.
