DPA 4071-OP-C-B90 – Miniature Omnidirectional Lavalier Microphone with Presence Boost (Loud SPL) – Black
The DPA 4071-OP-C-B90 is a miniature omnidirectional lavalier microphone from the 4060/4071 CORE+ series, specially engineered for speech reproduction with its characteristic presence boost of +5 dB between 4 and 6 kHz. This natural high-frequency lift significantly enhances speech intelligibility, making the 4071 particularly suitable for professional environments where clarity is essential: broadcast, interviews, film production, theatre, conferencing and live events.
Like all miniature microphones in the 4060 series, the 4071 is based on DPA’s first miniature microphone, originally developed using technology from hearing aids and measurement microphones. This foundation guarantees high precision, stable response and excellent sonic consistency across the entire series.
Built to withstand demanding production environments, the 4071 features a 5.4 mm pre-polarized condenser capsule with a vertical diaphragm and an internal design optimized to reduce moisture and perspiration issues. Its Kevlar-reinforced cable provides outstanding resistance to pulls, twists and daily wear.
Unlike the 4060/4061 models, the 4071 includes a fixed acoustic grid that permanently integrates the presence boost—making it an ideal choice for chest-mounted or costume-mounted applications where the voice must stand out clearly without requiring heavy EQ adjustments.
Its omnidirectional pickup pattern ensures natural sound capture without precise aiming, while also minimizing handling noise, plosives and variations caused by movement. With a maximum SPL handling of 144 dB, the 4071 is suitable for both quiet dialogue and dynamic environments.
Specifications:
- Type: Miniature omnidirectional lavalier microphone
- Operating principle: Pressure
- Polar pattern: Omnidirectional
- Capsule type: Pre-polarized condenser
- Frequency response: 20 Hz – 20 kHz
- Effective frequency range ±2 dB: 100 Hz – 15 kHz, typical +5 dB presence boost @ 4–6 kHz
- Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)
- Equivalent noise level: Typ. 26 dB(A) (max. 28 dB(A))
- Equivalent noise (ITU-R BS.468-4): Typ. 38 dB (max. 40 dB)
- Dynamic range: Typ. 111 dB
- Max SPL (THD 10%): 144 dB SPL peak
- THD < 0.5%: 133 dB RMS / 136 dB peak
- THD < 1%: 136 dB RMS / 139 dB peak
- Output impedance: 30–40 Ω
- Cable drive capability: Up to 300 m (via DAD9001-BC XLR adapter)
- Power requirements: 5–10 V via DPA adapter (wireless) / P48 with DAD6001-BC
- Current consumption: Typ. 1.5 mA (3.5 mA with DAD9001-BC)

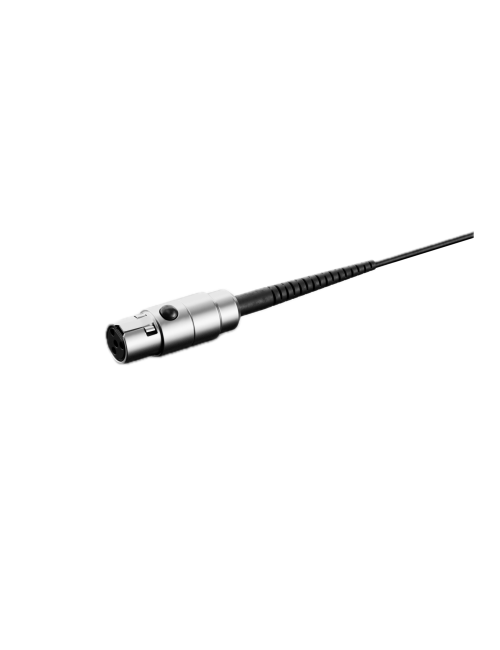

- Connector: MicroLock (other versions available: MicroDot, TA4F, LEMO, Mini-Jack)
- Weight: 7.5 g (incl. cable and MicroLock connector)
- Microphone diameter: 5.4 mm
- Microphone length: 17 mm
- Cable length: 1.8 m
- Polarity: Positive sound pressure = positive voltage on MicroLock pin
- Operating temperature: –40°C to +45°C
- Relative humidity: Up to 90%

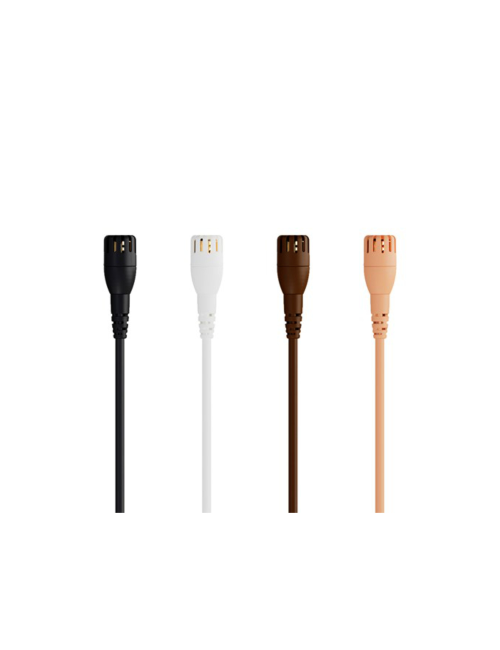

- Colour: Black (others available: Beige, Brown, White)
Key Points:
- Optimized for speech: built-in presence boost (4–6 kHz) for maximum intelligibility.
- Compact and discreet: perfect for film, interviews, theatre, broadcast and conferences.
- Professional durability: reinforced construction, Kevlar cable, high resistance to moisture.
- Wide dynamic range: handles up to 144 dB SPL—ideal for demanding environments.
- Natural capture: omnidirectional pickup with no need for precise aiming.
- Flexible compatibility: wide range of DPA adapters for professional wireless systems.
- Studio-grade sound: consistent performance across the entire 4060/4071 series.
