DPA 4466-OP-R-F90

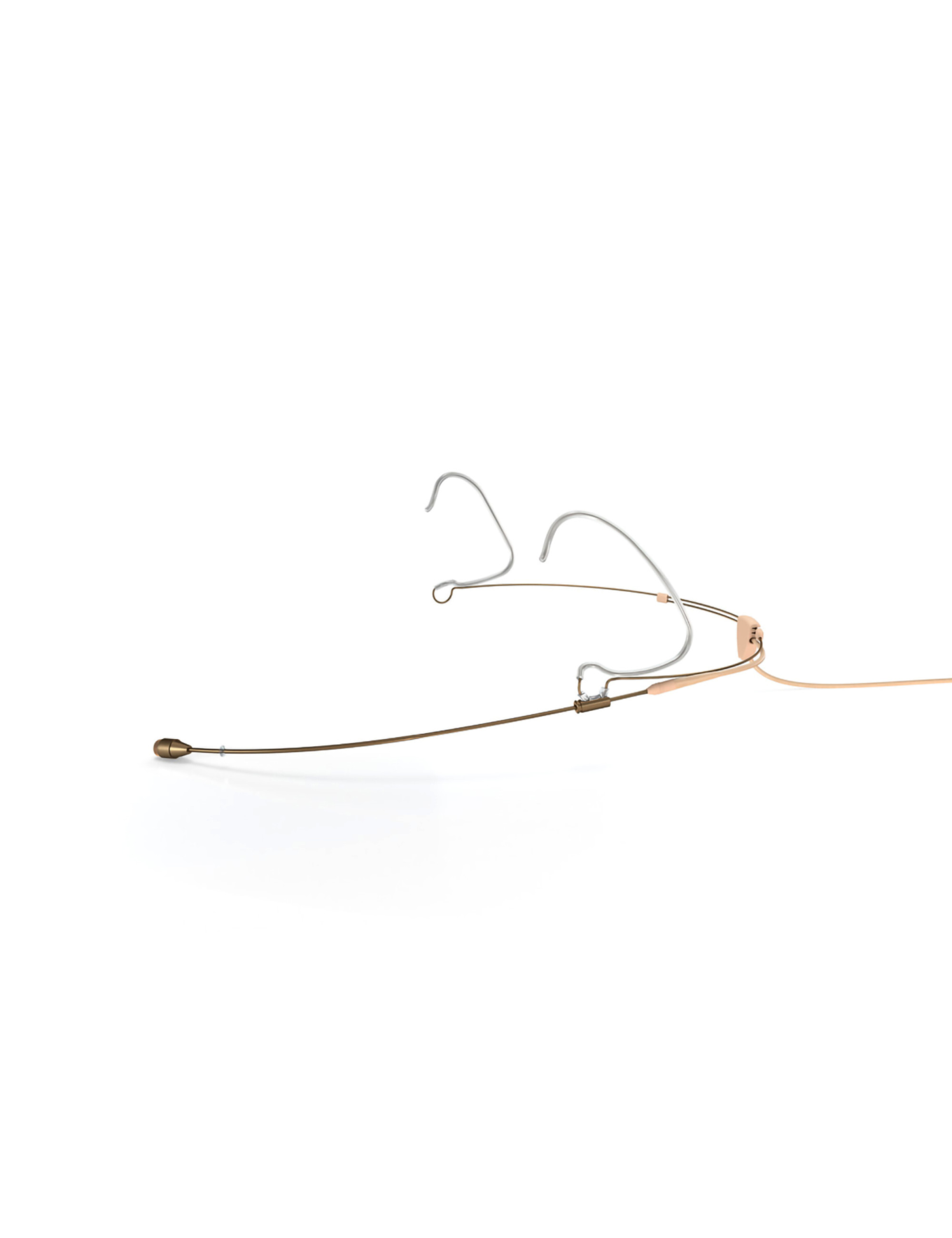

DPA 4466-OP-R-F90 – CORE+ Omnidirectional Headset Microphone with Refine Headset, MicroLock Connector, Beige Version

The DPA 4466-OP-R-F90 is a premium omnidirectional headset microphone featuring DPA’s renowned 5 mm CORE capsule, combined with the new ultra-thin Refine headset. Designed for environments requiring high-fidelity vocal reproduction — theatre, broadcast, high-end conferencing, houses of worship, and live performances — it delivers a transparent, natural and highly versatile sound.

Thanks to its omnidirectional pickup pattern, the 4466 captures voice with exceptional openness and consistency, even during head movement. Its 6 mV/Pa sensitivity and 111 dB dynamic range ensure outstanding speech intelligibility, while its ability to handle up to 144 dB SPL prevents distortion in the most demanding vocal applications.

This Loud SPL version is optimized to deliver an extended dynamic margin and clear, undistorted reproduction in high-SPL environments. Certified IP58, it offers advanced resistance to moisture, sweat and dust, ensuring long-term reliability on stage or outdoors.

The Refine headset marks a major leap in ergonomics: one-size-fits-all design, ultra-thin stainless-steel frame, 3-point support system (above, below and behind the ear), rapid adjustments and a dual-axis boom design for perfect placement without bending. The 90° cable management system ensures total visibility control on stage or on camera.

Its matte non-reflective PVD finish provides discretion and impressive durability. The MicroLock connector ensures secure attachment and full compatibility with DPA DAD9000-series adapters for professional wireless systems (not included).

Specifications:

• Type: 5 mm omnidirectional headset microphone


• Directivity: Omnidirectional


• Operating principle: Pressure


• Capsule type: Pre-polarized condenser, CORE+ technology


• Frequency response: 20 Hz – 20 kHz


• Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)


• Equivalent noise level: 26 dB(A) typical (max. 28 dB(A))


• Dynamic range: 111 dB typical


• Max SPL (10% THD): 144 dB peak


• Distortion < 0.5%: 133 dB RMS / 136 dB peak


• Distortion < 1%: 136 dB RMS / 139 dB peak


• Output impedance: 30–40 Ω


• Cable drive capability: up to 300 m with DAD9001-BC adapter


• Power supply: 5–10 V through DPA adapter (wireless) / P48 via DAD9001-BC (from 12 V)


• Current consumption: 1.5 mA (mic) / 3.5 mA with DAD9001-BC


• Connector: MicroLock (also available in TA4F, MicroDot, 3-pin LEMO, Mini-Jack)


• Weight: 10 g


• Capsule diameter: 5.4 mm


• Cable length: 1.3 m


• Cable diameter: 1.6 mm – Kevlar reinforced


• IP rating: IP58


• Temperature range: –40°C to +45°C


• Relative humidity: Up to 90%


• Available colors: Black, Beige, Brown, White



Key Points:

• Natural, open sound: perfect for theatre, broadcast, conferencing and worship.


• IP58 certified: enhanced resistance to moisture, sweat and dust.


• Refine headset design: ultra-thin, comfortable, adjustable one-size-fits-all frame.


• 3-point ear grip: excellent stability, even during extended use.


• Dual-axis adjustable boom: length and tilt adjustment without bending.


• Matte PVD finish: discreet, non-reflective and highly durable.


• Kevlar-reinforced cable: 1.6 mm diameter, 90° routing for full discretion.


• DPA modular system: compatible with most professional wireless transmitters.
