DPA 4088-DP-A-C90-LH – Cardioid CORE+ Headset Microphone with MicroLock Adapter, LoudSPL Version
The DPA 4088-DP-A-C90-LH (4088 CORE+) is a directional cardioid headset microphone designed to deliver a natural, open and highly accurate sound for vocal performance and spoken-word applications. With its excellent off-axis rejection and ultra-low distortion, it is ideal for demanding environments on stage or in studio settings.
Featuring a cardioid pickup pattern, the 4088 CORE+ provides optimal rejection of ambient noise and distant sound sources, significantly reducing the risk of feedback even in high-SPL environments. Its lightweight, flexible and moisture-resistant design ensures maximum comfort for long-wearing sessions, with the option to mount it on either the left or right side. The MicroLock system offers full compatibility with DAD 9000-series adapters (not included).

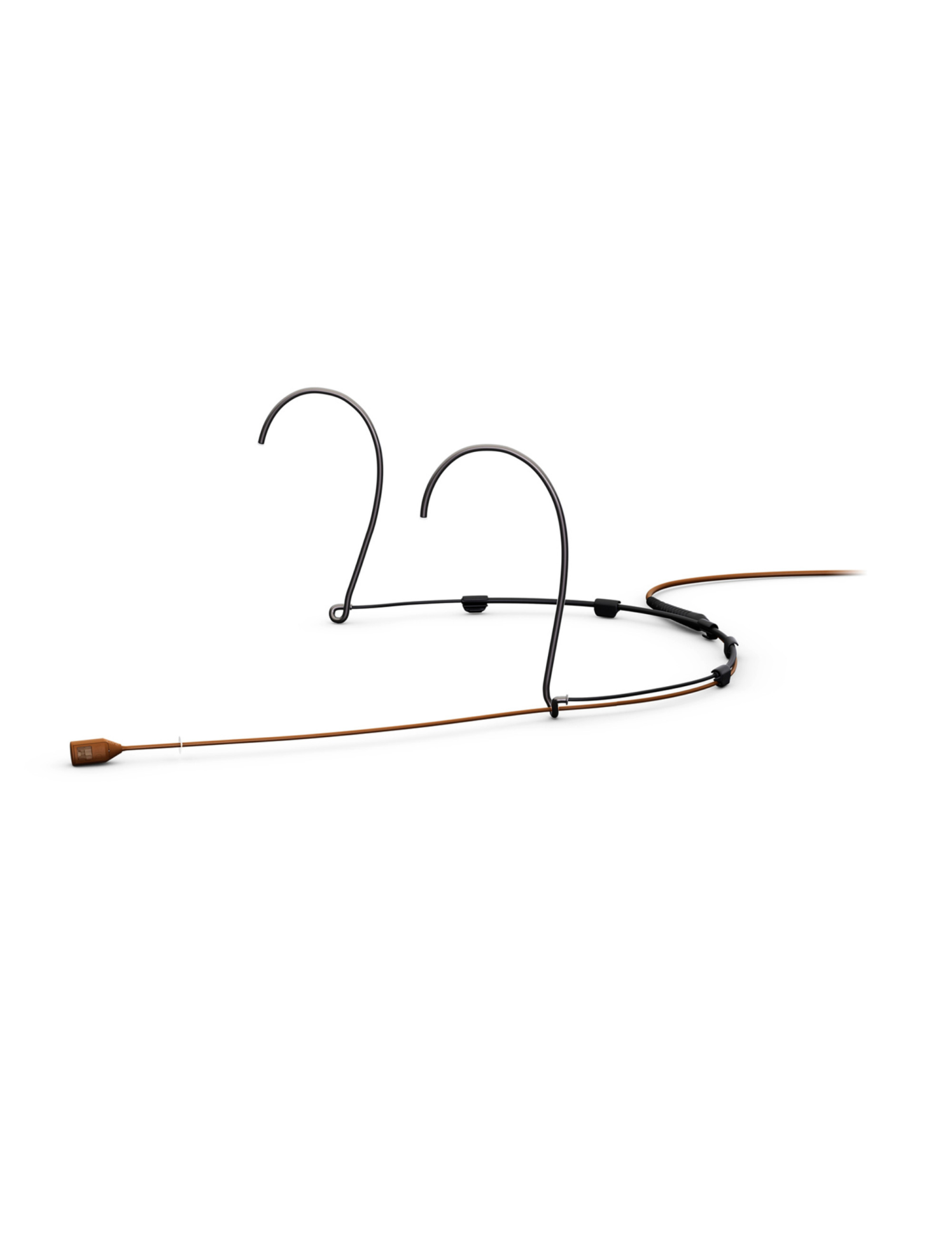

The 4088-DP-A-C90-LH version includes a brown 4088 CORE+ cardioid directional microphone with a black ACT headset, an extended boom arm for optimal placement at the corner of the mouth, and a MicroLock adapter for P48 phantom power operation via the DAD9001 (not included). The discreet dual-ear design and lightweight 14 g construction ensure a stable fit and maximum comfort during extended use. The microphone provides optimal bass linearity at 2–3 cm from the sound source while effectively attenuating ambient noise and feedback.
Specifications & Features:
- Type: Directional cardioid headset microphone
- Operating principle: Pressure gradient
- Capsule type: Pre-polarized condenser
- Frequency response: 20 Hz – 20 kHz
- Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)
- Equivalent noise level: 26 dB(A) typical, max. 28 dB(A)
- THD < 0.5%: 137 dB RMS, 140 dB peak
- THD < 1%: 139 dB RMS, 142 dB peak
- Dynamic range: 116 dB typical
- Max SPL (10% THD): 147 dB peak
- Output impedance: 30 – 40 Ω
- Cable compatibility: up to 300 m using DAD9001 adapter
- Power requirements: Min. 5 V – max. 10 V via DPA adapter for wireless systems. With DAD9001: P48 Phantom Power (operational from 12 V)
- Current consumption: 1.5 mA typical (mic), 3.5 mA with DAD9001
- Connector: MicroLock (also available in TA4F Mini-XLR, 3-pin LEMO, Mini-Jack)
- Weight: 14 g (with cable and MicroLock connector)
- Capsule diameter: 5.4 mm
- Microphone length: 11 mm
- Cable length: 1.2 m
- Cable diameter: 1.6 mm
- Polarity: Positive acoustic pressure produces a positive voltage on the MicroLock pin
- Operating temperature: –40°C to 45°C
- Relative humidity: Up to 90%
- Available colors: Black, Beige, Brown
- Included accessories: ACT headset, MicroLock adapter (DAD9001 not included), windscreen
Key Points:
- Outstanding audio quality: open, natural and highly detailed sound
- Lightweight & comfortable: only 14 g, ideal for long sessions
- Flexible mounting: left or right placement depending on preference
- Excellent off-axis rejection: perfect for high-SPL or noisy environments
- Flexible adapter system: compatible with most professional wireless systems
