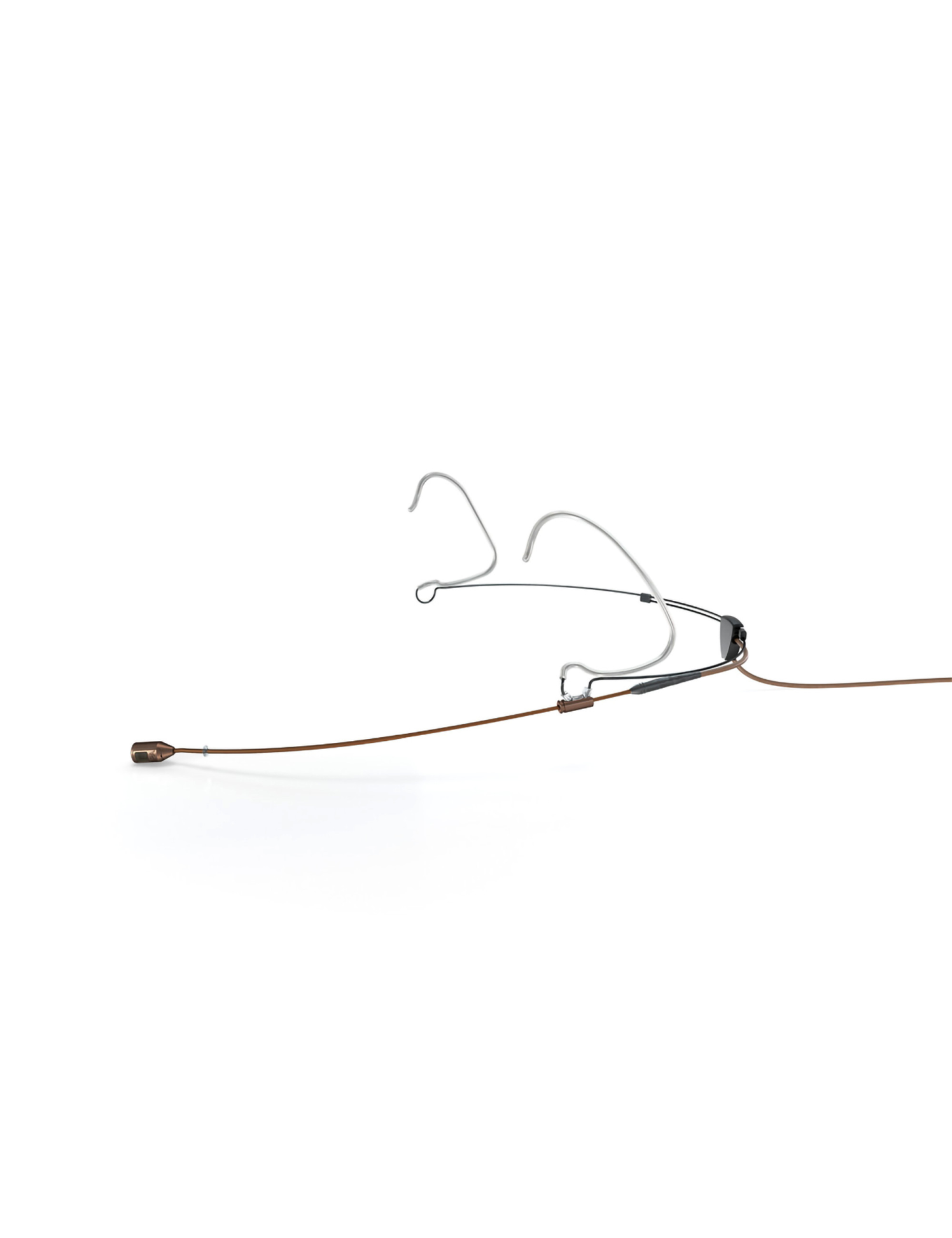

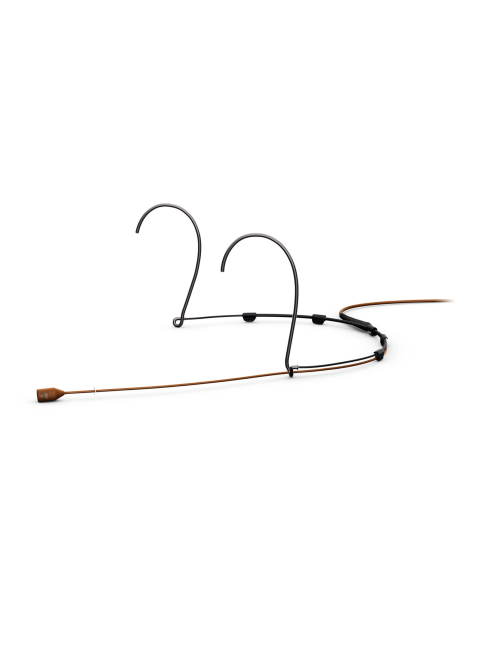

DPA 4488-DP-R-C90 – Cardioid headset microphone CORE+ with Red Dot Award headframe and MicroLock connector, brown version
The DPA 4488-DP-R-C90 is a premium directional cardioid headset microphone featuring the renowned 5 mm CORE+ capsule combined with DPA’s innovative Red Dot Award-winning headframe. It is designed for the most demanding vocal performance environments such as theatre, broadcast, high-end conferences, live productions and any application requiring maximum intelligibility and excellent noise rejection.
With its cardioid directivity, the 4488 CORE+ provides outstanding ambient noise rejection, suppresses distant sound sources and efficiently reduces feedback risks, even on high-SPL stages. Its low-end response is optimized for ideal linearity at 2–3 cm from the sound source, ensuring clear, natural and precisely focused vocal reproduction.
The new Red Dot Award headframe sets a new standard in ergonomics: one-size-fits-all with perfect adaptability, 3-point support (above, below and behind the ear), quick adjustments, dual-axis boom flexibility, and a 90° cable management system ensuring complete discretion on stage or in front of the camera.
Fully treated with a non-reflective matte PVD finish, this brown version blends seamlessly with skin tones, remaining nearly invisible on stage. The MicroLock connector ensures secure fastening and full compatibility with DPA DAD9000-series adapters (not included).
Features and Specifications:
- Type: Directional cardioid headset microphone, 5 mm

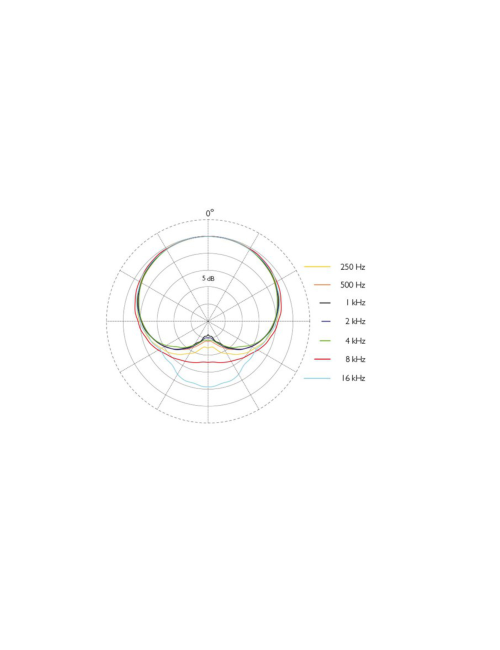

- Directivity: Cardioid (high off-axis rejection)
- Operating principle: Pressure gradient
- Capsule type: Pre-polarized condenser, CORE+ technology

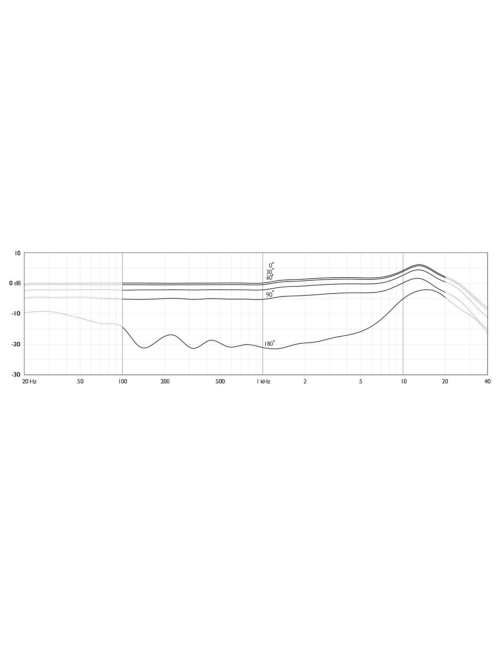

- Frequency response: 20 Hz – 20 kHz
- Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)
- Equivalent noise level: Typical 26 dB(A), max. 28 dB(A)

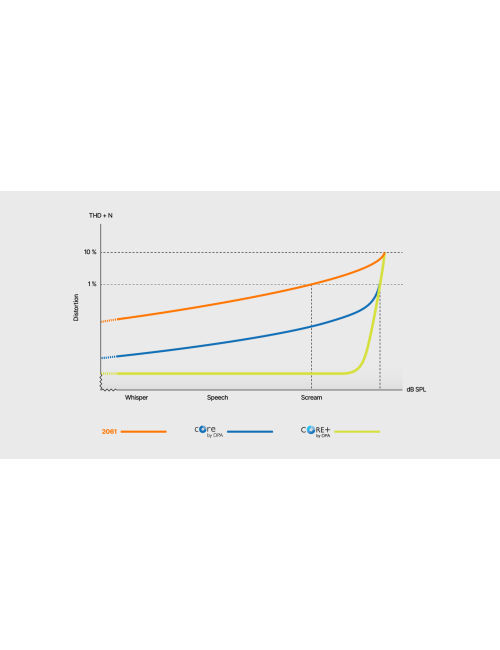

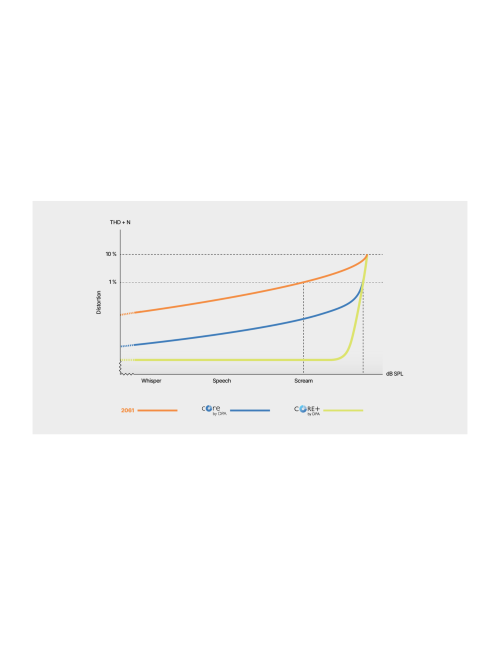

- THD < 0.5%: 137 dB RMS, 140 dB peak
- THD < 1%: 139 dB RMS, 142 dB peak
- Dynamic range: Typical 116 dB
- Max SPL (10% THD): 147 dB peak
- Output impedance: 30 – 40 Ω

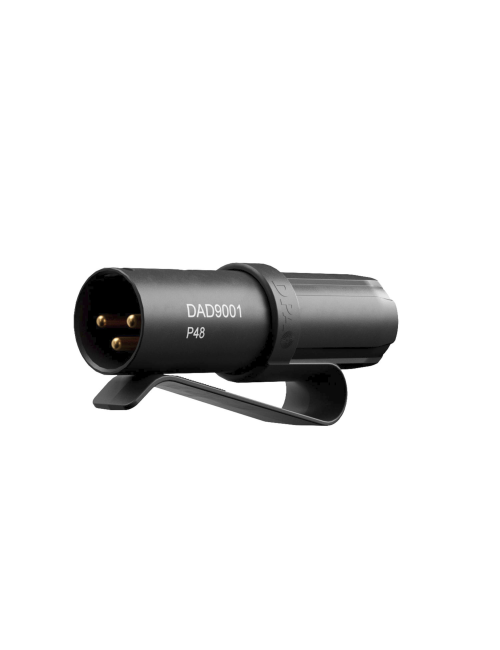

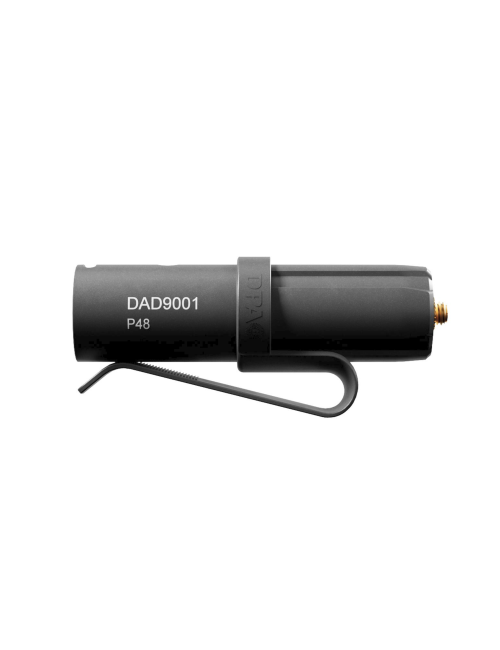

- Cable drive capability: Up to 300 m using DAD9001 adapter
- Power requirements: 5–10 V via DPA adapter (wireless systems) / P48 via DAD9001 (from 12 V)
- Current consumption: 1.5 mA (microphone) / 3.5 mA with DAD9001
- Connector: MicroLock (also available in TA4F, 3-pin LEMO, Mini-Jack)
- Weight: 18 g (including cable and MicroLock connector)
- Capsule diameter: 5.4 mm
- Cable length: 1.3 m
- Cable diameter: 1.6 mm – Kevlar-reinforced
- Temperature range: –40°C to +45°C
- Relative humidity: Up to 90%
- Available colors: Black, Beige, Brown
- Accessories included: Red Dot headframe, MicroLock adapter (DAD9001 not included), windscreen
Key Points:
- Open and natural sound: perfect vocal reproduction for theatre, broadcast and corporate events.
- Red Dot Award headframe: 3-point support, exceptional comfort, fully adjustable.
- Dual-axis boom adjustment: extendable boom + vertical pivot without bending.
- Outstanding off-axis rejection: excellent feedback resistance and noise suppression.
- Matte PVD construction: discreet, durable and ideal for stage and on-camera use.
- Reinforced professional cable: Ø1.6 mm Kevlar-core, discreet 90° routing.
- DPA modular system: compatible with most professional wireless transmitters.
