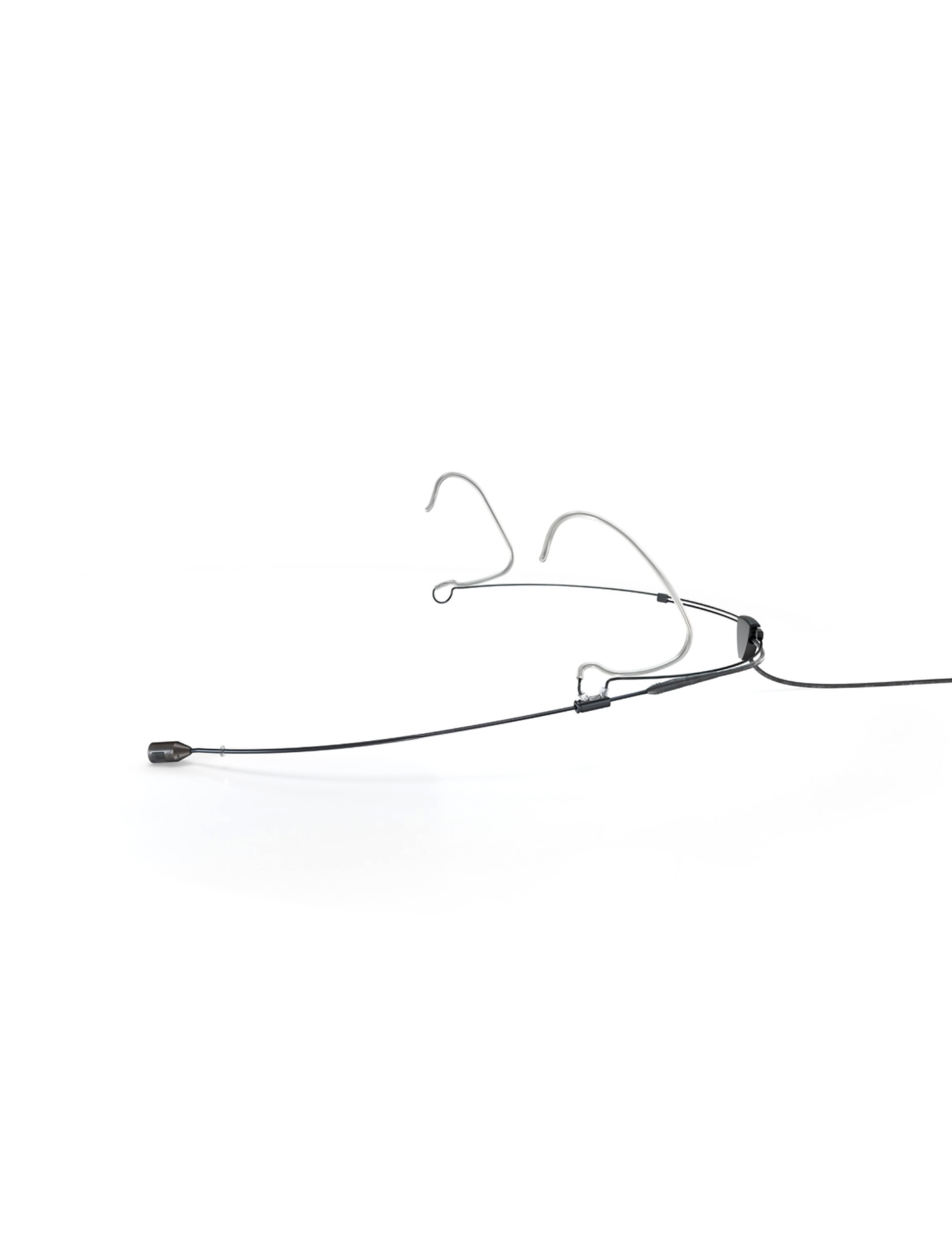

DPA 4488-DP-R-B90 – Cardioid headset microphone CORE+ with Red Dot Award headframe and MicroLock connector, black version
The DPA 4488-DP-R-B90 is a premium directional cardioid headset microphone featuring the renowned 5 mm CORE+ capsule paired with DPA’s new professional Red Dot Award-winning headframe. It is engineered for demanding vocal performance environments including theatre, broadcast, high-end corporate presentations, live shows and any application requiring maximum intelligibility with excellent noise rejection.

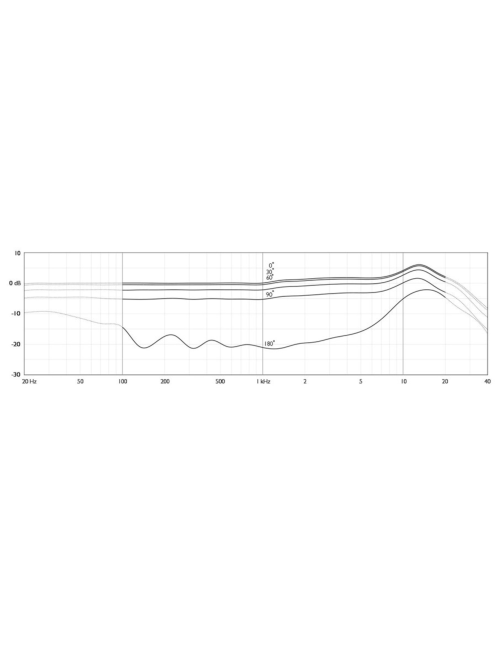

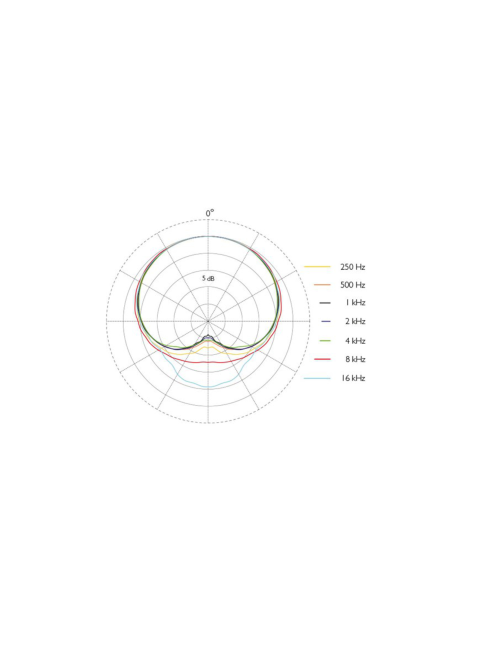

Thanks to its cardioid directivity, the 4488 CORE+ delivers superior ambient noise rejection, suppressing distant sound sources and dramatically reducing feedback, even on high-SPL stages. The low-frequency response is optimized for perfect linearity at 2–3 cm from the sound source, ensuring clear, natural and precisely focused vocal reproduction.
The new Red Dot Award headframe introduces a major ergonomic improvement: one-size-fits-all adaptability, 3-point support (above, below and behind the ear), rapid adjustments, a dual-axis pivoting boom, and a 90° cable management system that ensures absolute discretion on stage or on camera.
Fully treated with a matte, non-reflective PVD coating, this black version blends naturally with darker skin tones or stage lighting, remaining virtually invisible in professional productions. The MicroLock connector guarantees secure fastening and full compatibility with DPA DAD9000-series adapters (not included).
Features and Specifications:
- Type: 5 mm directional cardioid headset microphone
- Directivity: Cardioid (high off-axis rejection)
- Operating principle: Pressure gradient
- Capsule type: Pre-polarized condenser, CORE+ technology
- Frequency response: 20 Hz – 20 kHz
- Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)
- Equivalent noise level: Typical 26 dB(A), max. 28 dB(A)
- THD < 0.5%: 137 dB RMS, 140 dB peak
- THD < 1%: 139 dB RMS, 142 dB peak
- Dynamic range: Typical 116 dB
- Max SPL (10% THD): 147 dB peak
- Output impedance: 30 – 40 Ω
- Cable drive capability: Up to 300 m using DAD9001 adapter
- Power requirements: 5–10 V via DPA adapter (wireless) / P48 via DAD9001 (from 12 V)
- Current consumption: 1.5 mA (microphone) / 3.5 mA with DAD9001
- Connector: MicroLock (also available in TA4F, 3-pin LEMO, Mini-Jack)
- Weight: 18 g (incl. cable and MicroLock)
- Capsule diameter: 5.4 mm
- Cable length: 1.3 m
- Cable diameter: 1.6 mm — Kevlar-reinforced
- Temperature range: –40°C to +45°C
- Relative humidity: Up to 90%
- Available colors: Black, Beige, Brown
- Included accessories: Red Dot headframe, MicroLock adapter (DAD9001 not included), windscreen
Key Points:
- Open and natural sound: flawless vocal reproduction for theatre, conferences and broadcast.
- Red Dot Award headframe: 3-point support, exceptional comfort, fully adjustable one-size design.
- Dual-axis adjustable boom: extendable boom with up/down pivot—no need to bend the boom.
- Outstanding off-axis rejection: dramatically reduces feedback and distant noise.
- Matte PVD construction: discreet, rugged and ideal for video and stage use.
- Professional reinforced cable: Ø1.6 mm Kevlar-core with 90° cable routing.
- DPA modular system: compatible with most professional wireless transmitters.
