QSC Audio LS118-KIT-J

QSC Audio LS118-KIT-J – Jumper Kit for LS118 Subwoofers

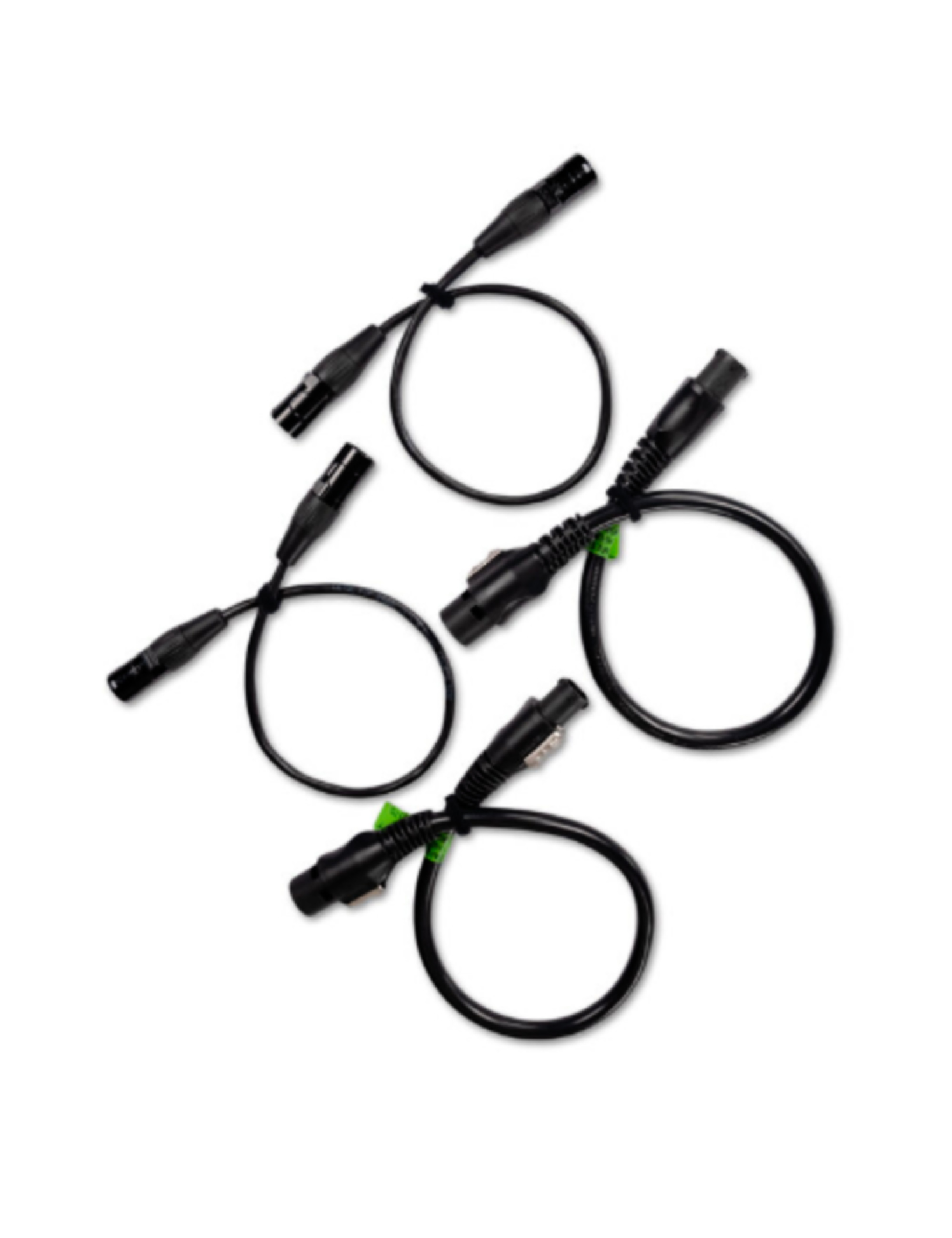

The QSC LS118-KIT-J is a jumper kit designed to simplify daisy-chaining of two pairs (four units) of LS118 subwoofers. It includes two 1.2 m PowerCON TRUE1 cables and two 1.2 m EtherCON cables, enabling both AC power and network connection between subwoofers. This kit is ideal for professional installations requiring fast, reliable connections without extra cabling.

The PowerCON TRUE1 system is rated for up to 16 A, allowing up to three LS118 subwoofers to be powered from a single AC point (see user manual for details). Compact and robust, the LS118-KIT-J ensures safe and practical daisy-chaining for floor or stage configurations while complying with QSC standards for AC and network connectivity. The included EtherCON cables allow direct integration into a digital audio system, ensuring stable data transmission over SoundGrid or Dante networks.

General Specifications:

• Type: Jumper kit for LS118 subwoofers


• Kit contents:
  • 2 × PowerCON TRUE1 cables – 1.2 m
  • 2 × EtherCON cables – 1.2 m (H05VV 1.5 mm²)


• Compatibility:
  • Up to 4 × LS118 for AC and network daisy-chaining
  • Power up to 3 subwoofers from a single PowerCON outlet (max 16 A)


• Use: AC and network daisy-chaining between subwoofers; simplifies cabling


• Installation:
  • Direct connection of PowerCON and EtherCON cables between subwoofers
  • Daisy-chaining possible for up to 4 subwoofers
  • Complies with QSC standards for AC and network


• Functions: Simplifies deployment, ensures stable AC and network connection


• Color: Black
