DPA ST2011C

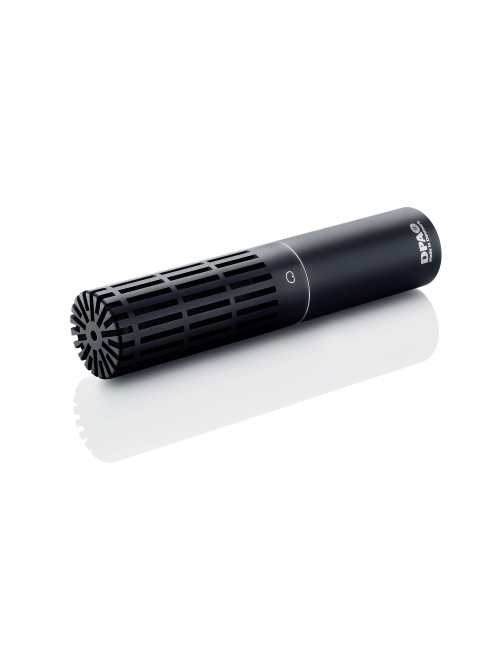

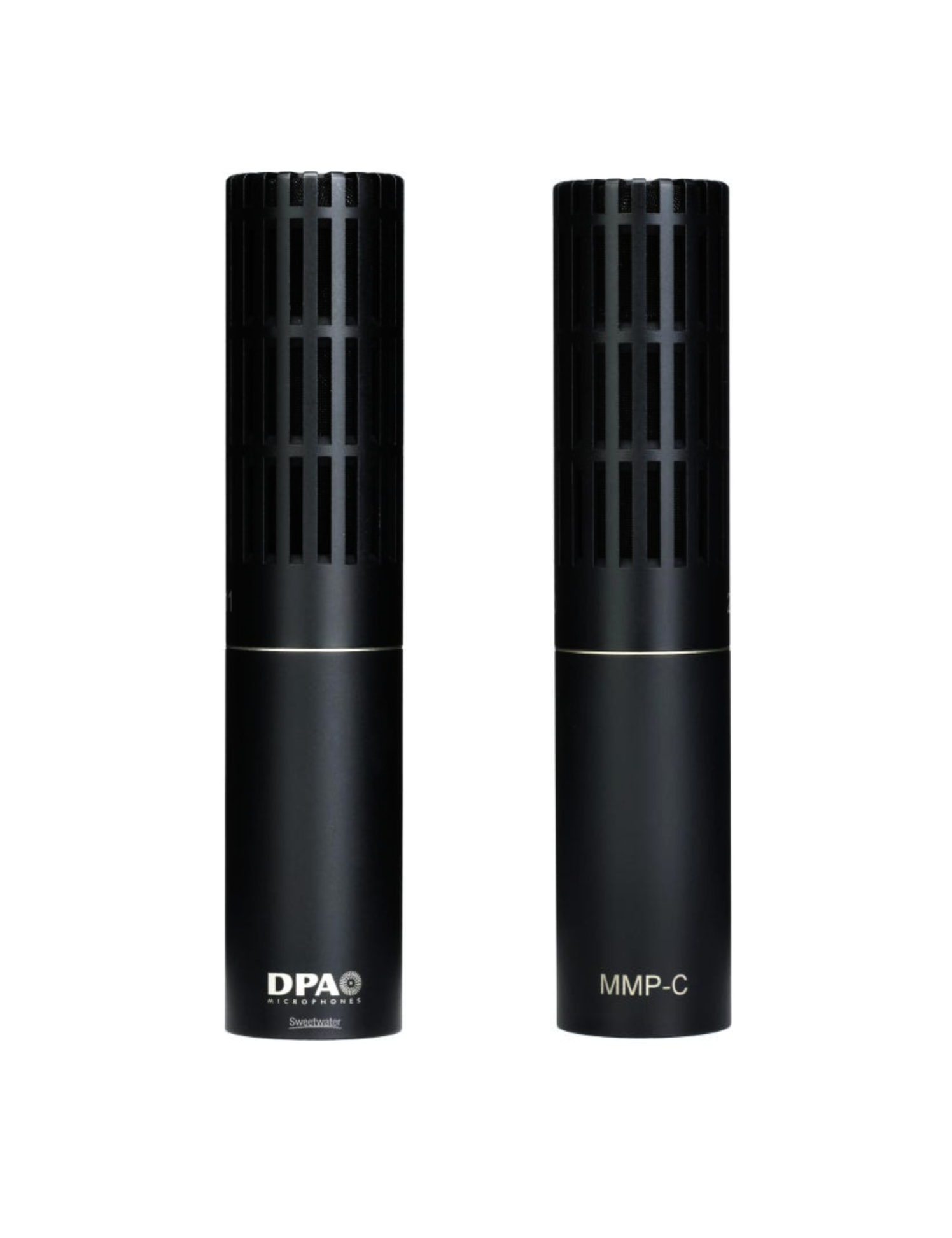

DPA ST2011C – Matched Stereo Set of Compact Twin-Diaphragm Cardioid Microphones – Compact Version

The DPA ST2011C is a matched stereo pair of twin-diaphragm cardioid microphones, built around DPA’s acclaimed Twin Diaphragm Capsule technology. Designed to deliver a unique blend of clarity, richness and dynamic detail, this stereo set is ideal for high-precision instrument recording in both live and studio environments.

Each 2011C microphone features two closely paired miniature capsules mounted as a single unit, combining the fast transient response of small diaphragms with the lower self-noise of a larger surface. This results in a natural, accurate and highly responsive sonic signature that excels on a wide variety of instruments.

With its integrated interference tube, the 2011C provides exceptional off-axis rejection, making it highly effective on stage for controlling spill and maintaining a focused stereo image. It also handles very high SPL (up to 146 dB peak) while preserving tonal consistency.

As part of DPA’s modular pencil microphone series, both microphones in the ST2011C set can be paired tool-free with a selection of DPA preamps (MMP-A, MMP-C, MMP-E, MMP-G), enabling sound engineers to tailor the tonal character and connectivity to any workflow—from live sound to broadcast or wireless systems.

More compact than the 2011A, the 2011C version offers a slightly warmer low-end response and superior placement flexibility, making this matched pair particularly suited for stereo miking of percussion, drum overheads, brass sections, strings, guitars, ensembles and room ambience.

Specifications:

• Type: Twin-diaphragm cardioid condenser microphone


• Directivity: Cardioid


• Operating principle: Pressure gradient with interference tube


• Capsule type: Pre-polarized condenser Twin Diaphragm Capsule

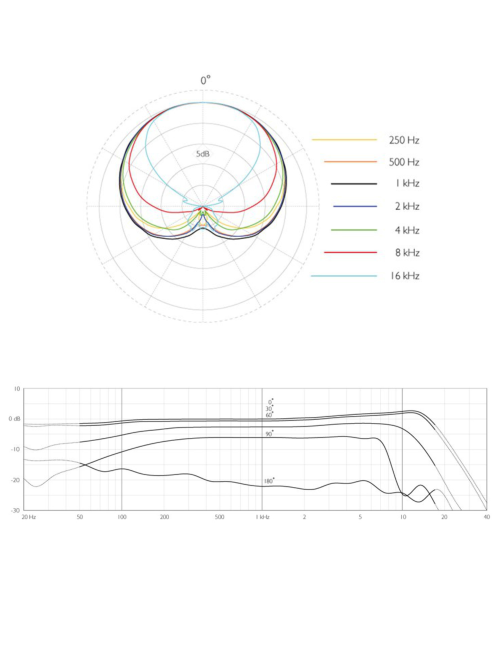

• Frequency response: 20 Hz – 20 kHz


• Effective frequency range ±2 dB (at 30 cm): 50 Hz – 17 kHz, +3 dB soft boost at 12 kHz


• Sensitivity: 10 mV/Pa (–40 dB re. 1 V/Pa)


• Equivalent noise level: Typ. 20 dB(A) (max. 23 dB(A))


• Equivalent noise level ITU-R: 33 dB (max. 36 dB)


• Dynamic range: 117 dB typical


• THD < 1 %: 134 dB SPL RMS / 137 dB SPL peak


• Max SPL (THD 10 %): 146 dB SPL peak


• Output impedance: 100 Ω


• Minimum load impedance: 2 kΩ


• Cable drive capability: Up to 100 m


• CMRR: > 50 dB


• Power supply: P48 phantom power


• Current consumption: 2.8 mA


• Connector: XLR-3M (Pin 2 = hot / positive phase)


• Weight: 64 g per microphone


• Microphone diameter: 19 mm


• Length: 92 mm


• Max output voltage: > 4 V RMS


• Operating temperature: –40°C to +45°C


• Relative humidity: Up to 90 %


• Sensitivity selection tolerance: ±1.5 dB @ 1 kHz

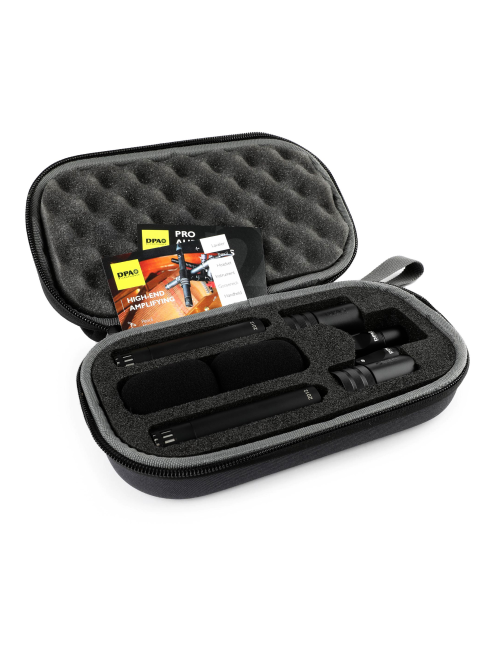

• Stereo Set includes: 2 microphones, 2 mic clips, 2 windshields, all supplied in a durable plastic transport case

Key Features:

• Signature blend of clarity, richness and dynamics from the Twin Diaphragm technology.


• Outstanding off-axis rejection thanks to the interference tube — perfect for live environments.


• Fully modular design compatible with all DPA pencil preamps (MMP-A, MMP-C, MMP-E, MMP-G).


• Handles high SPL up to 146 dB — ideal for snare, brass, percussion and high-energy instruments.


• Excellent transient response for precise and natural attack reproduction.


• Compact version (2011C) offers easier positioning and a slightly warmer low-end compared to the 2011A.


• Ideal for stereo applications: overheads, ensembles, strings, percussion, room ambience and more.
