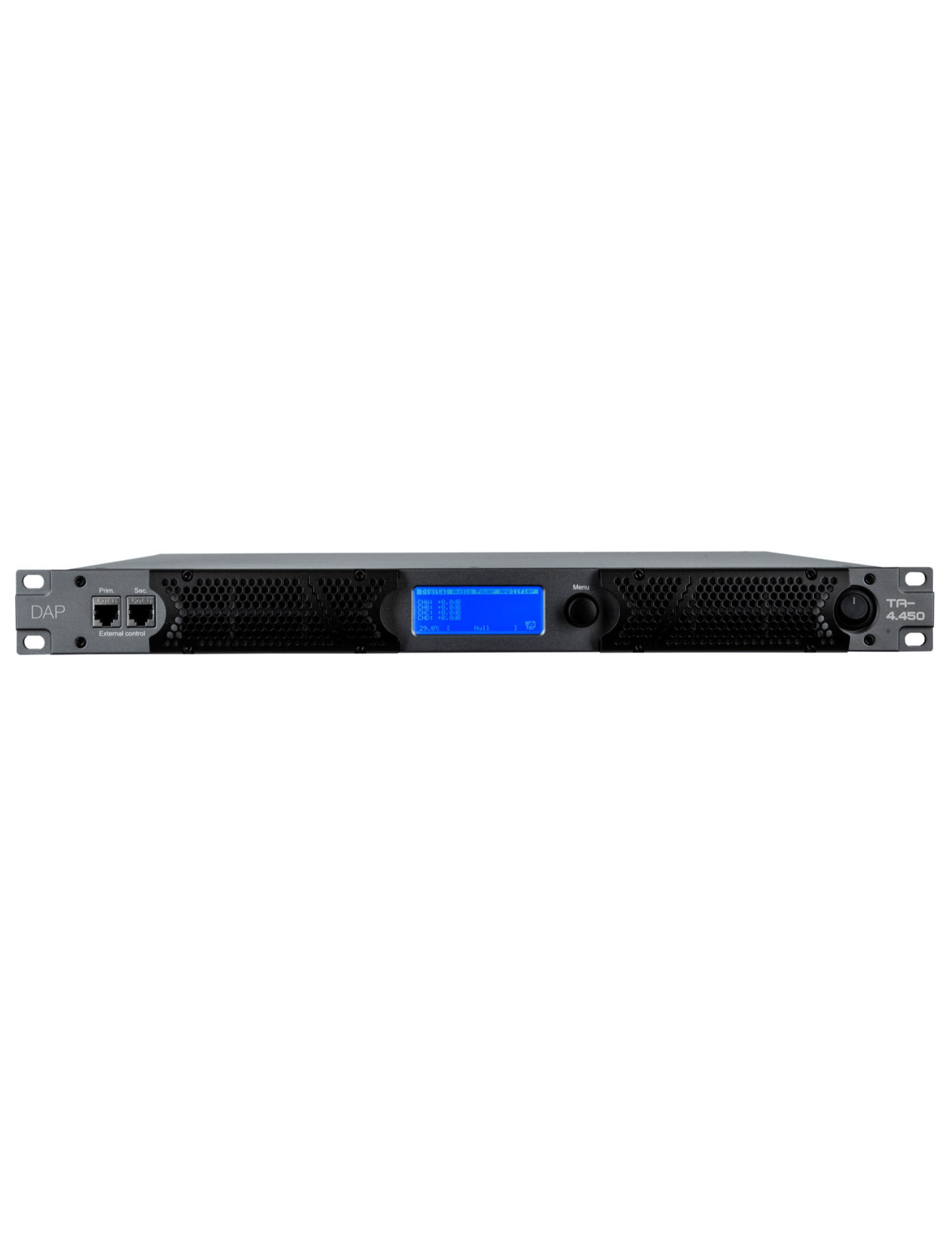

DAP TA-4.450

DAP TA-4.450 – 4-channel touring amplifier with FIR DSP

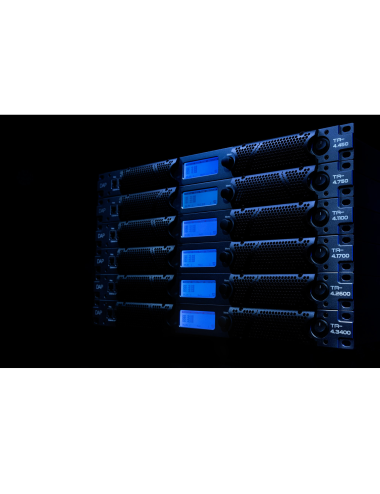

The DAP TA Series represents a new generation of power amplifiers designed for touring and professional installations. Lightweight, compact, and built around a high-efficiency Class-D architecture, TA amplifiers integrate a complete DSP engine including 512-tap FIR filters, 8-band parametric EQ, input/output delay, and advanced dynamic processing. Engineered to meet the demands of modern stages, they deliver powerful, accurate, and reliable audio reproduction while offering extremely flexible signal management. Thanks to their 100–240 V universal power supply with active PFC, TA amplifiers operate worldwide with high efficiency and low thermal dissipation.

The onboard DSP can be configured directly via the front LCD screen and multifunction encoder, or fully controlled through a PC software interface (Windows 10/11) for detailed adjustment of every parameter: FIR, EQs, limiters, delays, 4×4 routing, phase, HP/LP filters, user presets, and real-time IP monitoring. DAP also provides optimized DSP presets for Odin, WMS and NRG passive speaker systems, ensuring fast deployment, perfect integration, and maximum acoustic performance.

The TA-4.450 is the 4×450 W model of the series. Compact (1U), robust, and designed to handle low-impedance loads down to 2 Ω, it operates in stereo, parallel, or bridge modes. Its efficiency above 90%, high-current capability, and exceptional stability make it an ideal touring amplifier for rental companies, event professionals, and demanding mobile setups.

Specifications:

• Type: 4-channel Class-D touring amplifier with full integrated DSP


• Power: 4×450 W @4Ω · 4×250 W @8Ω · 4×700 W @2Ω · up to 1450 W bridge @8Ω


• Advanced DSP: 512-tap FIR filters, 8-band input/output EQ, delays, phase, HP/LP filters, 4×4 routing


• Universal power supply: 100–240 V AC SMPS with active PFC, worldwide operation, high efficiency


• Operating modes: 4-channel, stereo, mono, parallel, bridge


• Input connections: 4× 3-pin XLR (mono) – 20 kΩ impedance


• Output connections: 4-pole speaker terminals


• Control & monitoring: IP network via RJ45, PC software (Win10/11)


• Limiter & dynamics: peak + RMS limiters, attack/release control, gates


• Low-impedance stability: reliable operation down to 2 Ω


• Display: 3" LCD + rotary encoder


• Construction: 1U steel chassis, front-to-back airflow, black powder-coated finish


• Applications: touring, live sound, line-array, stage monitors, pro installations, clubs, theatres, events



Key Points:

• Full-featured DSP: 512-tap FIR, 8-band EQ, advanced delay, professional calibration tools.


• 4-channel touring power: 4×450 W @4Ω, 700 W @2Ω, 1450 W bridge @8Ω.


• Advanced IP control: Windows PC configuration + monitoring of voltage, current, temperature and protections.


• Universal PFC power supply: high efficiency, low heat, worldwide 100–240 V compatibility.


• DAP system compatibility: official Odin, NRG, WMS presets for immediate optimization.


• Compact 1U format: easy touring rack integration, low weight, front-to-back cooling.


• Rugged and stable: reliable performance on 2-ohm loads with full protection circuits.


• Flexible routing: internal 4×4 mixing, phase, filters, levels, limiters — fully adjustable.
