DAP TA-4.750

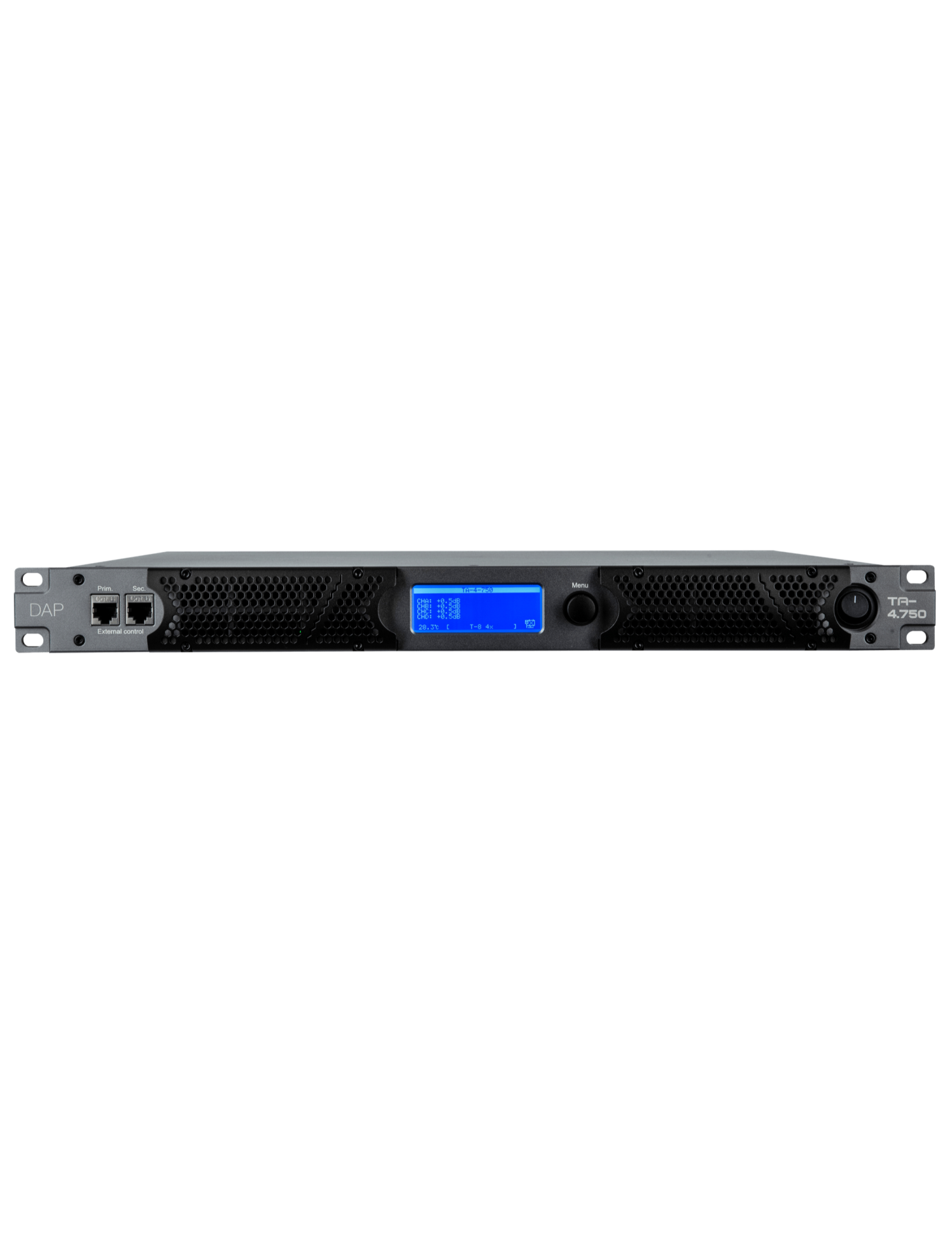

DAP TA-4.750 – 4-Channel Touring Amplifier with FIR DSP

The DAP TA Series represents a new generation of high-performance touring amplifiers for professional live sound and fixed installations. Lightweight, compact, and built on a high-efficiency class-D architecture, TA amplifiers feature a fully equipped DSP engine including 512-tap FIR filters, 8-band parametric EQ, input and output delays, and advanced dynamic processing. Engineered for today’s demanding stages, they deliver powerful, accurate and reliable audio reproduction with exceptional signal-processing flexibility. Equipped with a universal 100–240 V power supply with active PFC, every TA amplifier operates worldwide with high efficiency and reduced heat dissipation.

The built-in DSP can be configured via the front LCD screen and multifunction encoder, or fully controlled through a PC software suite (Windows 10/11) offering detailed access to all parameters: FIR, EQ, limiters, delays, 4×4 routing, phase, high-pass/low-pass filters, user presets and real-time IP monitoring. DAP also provides ready-to-use DSP presets for Odin, WMS and NRG passive systems, ensuring quick deployment and optimal performance.

The TA-4.750 is the high-power mid-range model of the TA lineup. Compact (1U), rugged and designed to handle loads as low as 2 Ω, it delivers 4×750 W @4 Ω and up to 2600 W in 8 Ω bridge mode (20 Hz–20 kHz). With over 90% efficiency, outstanding stability and a feature-rich DSP, it is an ideal solution for touring providers, live-sound reinforcement, and high-power professional installations.

Specifications:

• Type: 4-channel touring class-D amplifier with full integrated DSP


• Output Power: 4×750 W @4Ω · 4×450 W @8Ω · 4×1300 W @2Ω · up to 2600 W in 8Ω bridge (20 Hz–20 kHz)


• Advanced DSP: 512-tap FIR filters, 8-band input/output parametric EQ, input delay (100 ms), output delay (30 ms), phase control, HP/LP filters, 4×4 routing


• Universal Power Supply: SMPS 100–240 V AC with active PFC and Soft-Switch technology, high efficiency


• Operating Modes: 4-channel, stereo, mono, parallel, bridge


• Input Connectivity: 4× 3-pin XLR (mono) – 20 kΩ impedance, 21 dB gain


• Output Connectivity: 4-pole speaker terminals


• Control & Monitoring: IP network via RJ45, PC software (Windows 10/11), real-time monitoring of voltage, current, temperature, protections


• Limiters & Dynamics: Peak + RMS limiters, adjustable attack/release, gate, phase inversion


• Low-Impedance Stability: reliable operation down to 2 Ω


• Display: 3" LCD screen + rotary encoder


• Construction: 1U steel chassis, front-to-rear ventilation, black powder-coated finish


• Dimensions: 483 × 385 × 45 mm (W × D × H)


• Weight: 8.2 kg


• Applications: touring, front-of-house, line-array systems, stage monitors, pro installations, clubs, theatres, events



Key Points:

• Full FIR DSP: up to 512 taps, 8-band EQ, input/output delays, advanced filtering.


• High-Power 4-Channel Output: 4×750 W @4Ω, 1300 W @2Ω, up to 2600 W in 8Ω bridge.


• Professional IP Control: real-time monitoring + full configuration via Windows software.


• Universal SMPS with PFC: high efficiency, 100–240 V compatibility, improved stability.


• DAP System Compatibility: official Odin / WMS / NRG presets for instant optimisation.


• Compact 1U Format: ideal for touring racks, lightweight, front-to-back cooling.


• Maximum Reliability: stable 2-ohm operation + comprehensive protection circuitry.


• Flexible Routing: internal 4×4 matrix, phase control, filters, limiters — fully adjustable.
