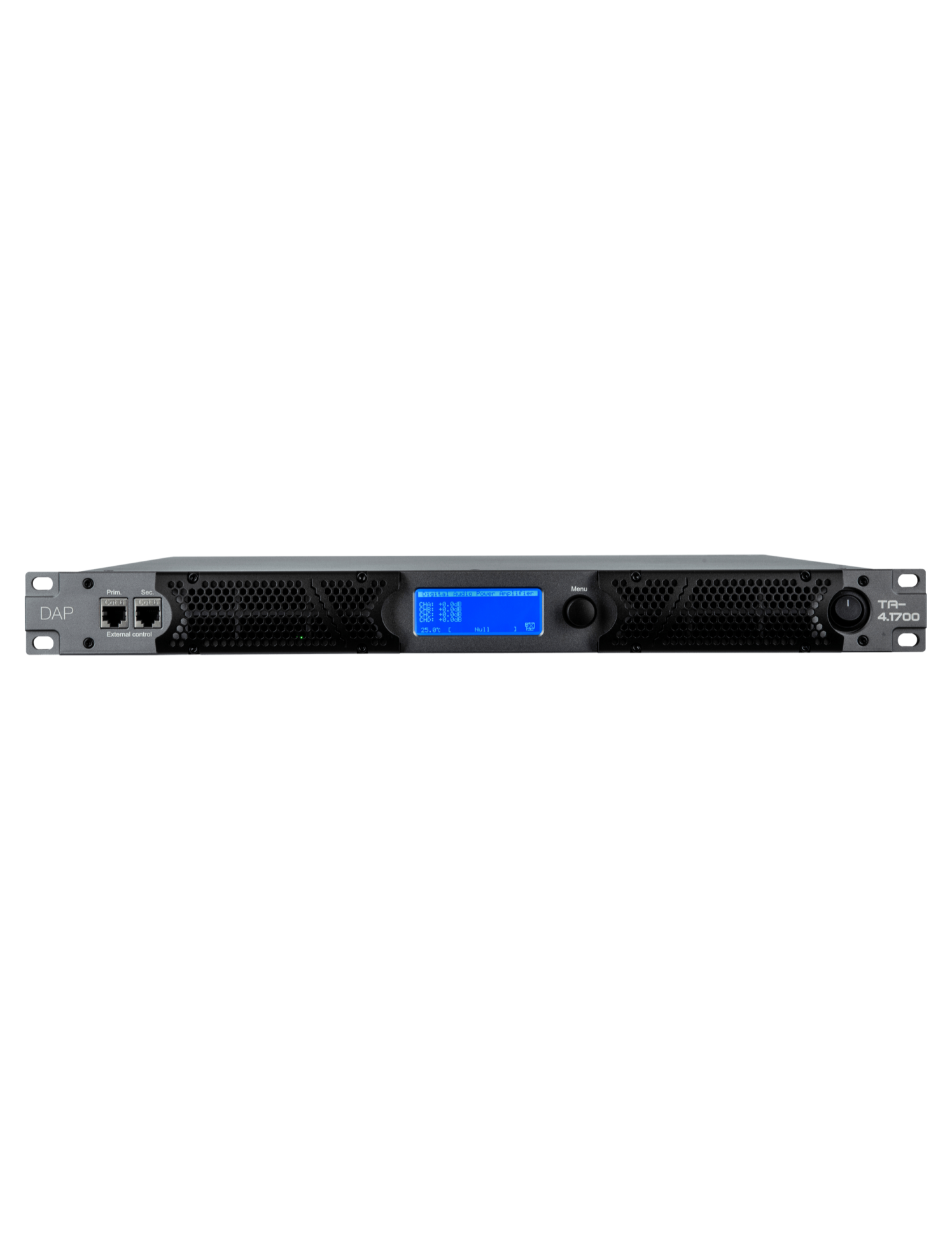

DAP TA-4.1700 – 4-channel touring amplifier with FIR DSP & high power output
The TA-4.1700 is a high-performance 4-channel DSP power amplifier designed for demanding touring applications. Housed in a rugged and compact 1U chassis, it delivers an impressive 4 × 1700 W at 4Ω, supports 2Ω loads, operates in bridge mode up to 5800 W (20 Hz–20 kHz), and can drive 70 V high-impedance lines. Built around a high-efficiency Class-D architecture with over 90% efficiency, it provides outstanding power, stability, reliability and thermal performance in any touring environment.
Its advanced DSP engine, fully controllable over IP via the Windows 10/11 PC software, includes: input delay up to 100 ms, output delay up to 20 ms, 8-band parametric EQ on inputs and outputs, internal 4×4 routing, HP/LP filters, FIR filtering up to 512 taps, RMS + peak limiters, phase control, and a full suite of tools dedicated to system optimization for high-power touring setups.
With the universal SMPS power supply (100–250 V AC) featuring Active PFC + Soft-Switch technology, the TA-4.1700 ensures flawless stability on any international power grid. IP monitoring via RJ45 provides real-time control of voltage/current, temperature, protection status and daisy-chain networking.
The integrated 3" LCD display combined with the rotary control knob ensures quick access to all parameters, enabling effortless operation on stage and fast adjustments during live productions.
Specifications:
- Type: high-efficiency Class-D 4-channel touring amplifier with FIR DSP
- Power Output: 4×1000 W @8Ω (1 kHz) • 4×1700 W @4Ω (1 kHz) • 4×2900 W @2Ω (1 kHz) • 4×1700 W (70 V mode) • 3400 W bridge @8Ω (1 kHz) • 5800 W bridge @8Ω (20 Hz–20 kHz)
- Operating Modes: 4-channel, Stereo, Mono, Parallel, Bridge, 70 V lines
- Advanced DSP: up to 512-tap FIR, 8-band input/output EQ, delays (input 100 ms / output 30 ms), phase control, HP/LP filters (Bessel, Butterworth, Linkwitz-Riley), ±18 dB gain trim, RMS + peak limiters
- IP Control: Windows 10/11 PC software, real-time monitoring (voltage/current/temperature/protection), RJ45 daisy-chain linking
- Inputs: 4× 3-pin XLR — 21 dB gain — 2 kΩ impedance

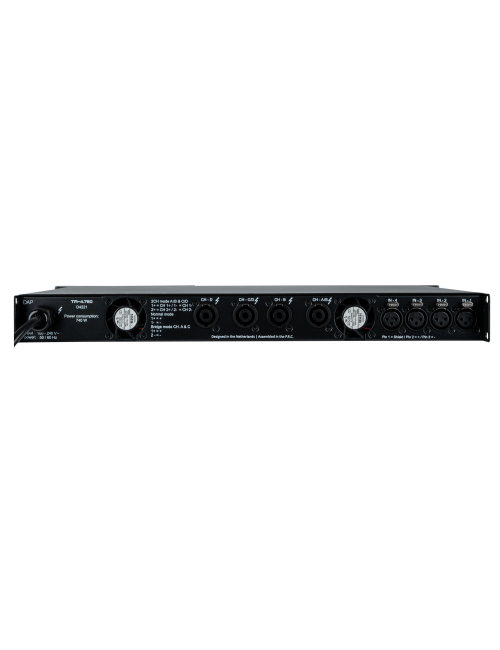

- Outputs: 4-pole speaker connectors — fully stable down to 2Ω
- Audio Performance: THD <0.05%, 20 Hz–20 kHz frequency response, >105 dB SNR, 1000:1 damping factor, 50 V/μs slew rate, 90 dBu crosstalk
- Power Supply: universal 100–250 V AC SMPS, Active PFC, Soft-Switch, max consumption 1650 W

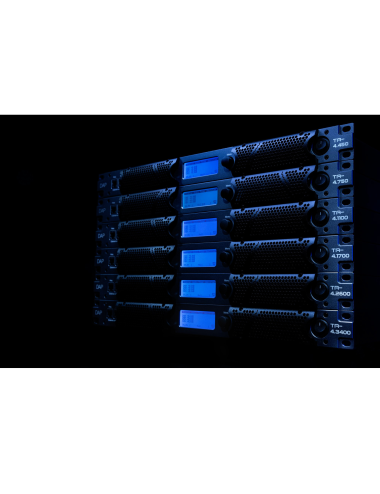

- Display: 3" LCD with rotary selector
- Construction: 1U steel chassis – front-to-back ventilation – axial fan – black powder-coated finish – IP20
- Dimensions: 483 × 385 × 45 mm (W × D × H) – 19" rackmount – 385 mm installation depth
- Weight: 10.1 kg
- Protections: clip limiter, DC, over-voltage, thermal, overload, under-voltage
- Applications: line-array systems, touring, rental companies, 70 V installations, clubs, theatres, professional audio venues
Key Points:
- Extreme power: up to 2900 W per channel at 2Ω and 5800 W bridged — ideal for high-energy line-array systems.
- Advanced FIR DSP: 512-tap FIR, 8-band EQ, extended delays, precision filters, full routing capabilities.
- 70 V compatibility: perfect for high-impedance installations requiring strong output power.
- Complete IP control: real-time monitoring and full configuration via Windows software.
- Efficiency & stability: >90% efficiency, safe 2Ω operation, full electronic protection suite.
- 1U touring chassis: compact, rugged, front-to-back cooling — perfect for mobile racks.
- Universal PFC power supply: worldwide operation, low heat, maximum stability.
- Total flexibility: 4-channel, stereo, parallel, bridge and 70 V modes — one amplifier for all scenarios.
