DAP TA-4.3400

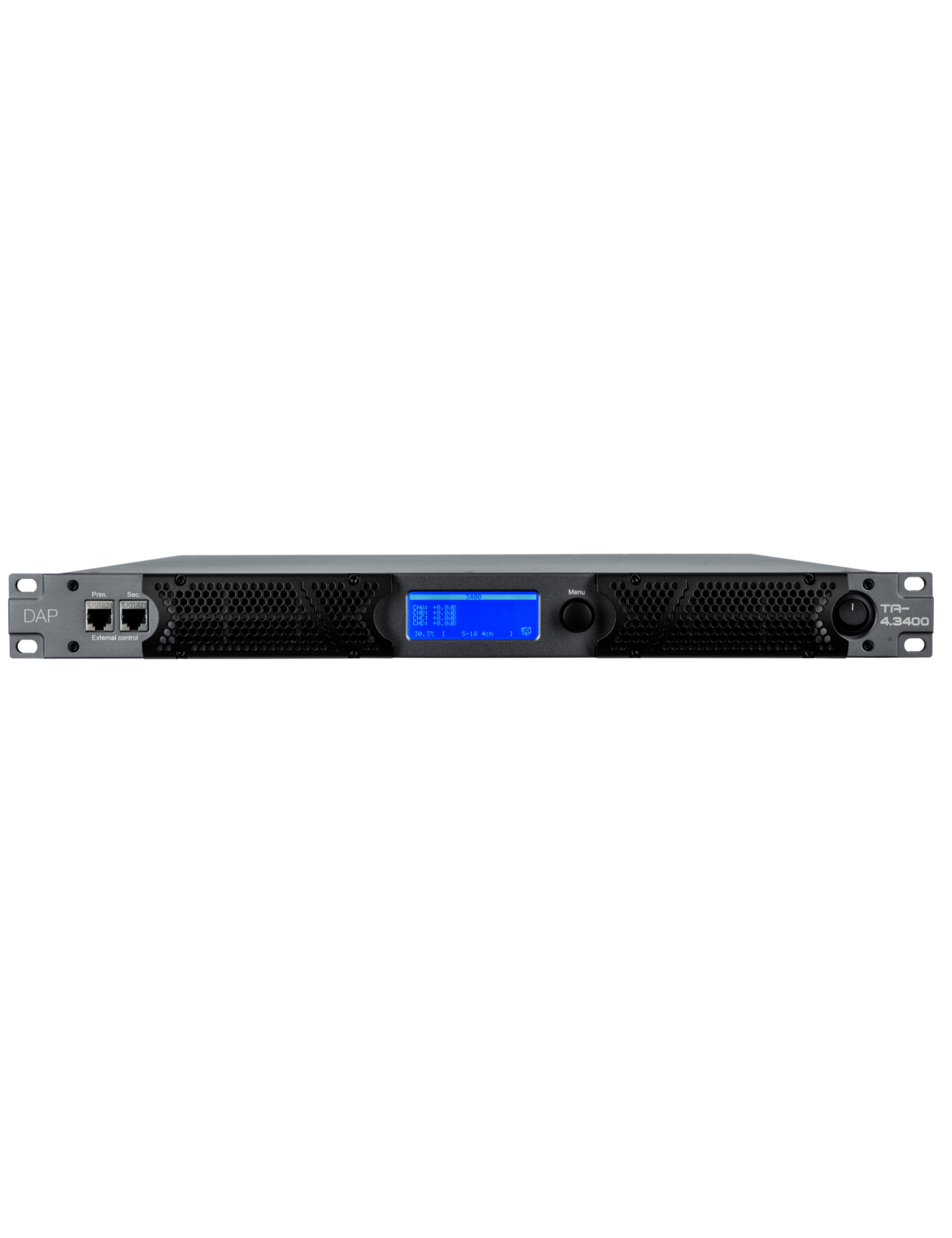

DAP TA-4.3400 – Ultra-high-power 4-channel touring amplifier with FIR DSP & 70/100 V modes

The TA-4.3400 is the most powerful model in the DAP TA touring amplifier series. Delivering an impressive 4 × 3400 W at 4 Ω, supporting extreme 2-ohm loads, and reaching up to 11,500 W in bridge mode (1 kHz), it is designed for maximum output and reliability in the most demanding applications. Supporting both Lo-Z systems (2/4/8 Ω) and 70/100 V high-voltage lines, it is a premium solution for large line-array systems, professional touring setups and high-power fixed installations. Its compact 1U chassis combined with a high-efficiency Class-D architecture (>90%) guarantees exceptional performance, stability and energy efficiency for large-scale productions.

The fully integrated DSP, controllable over IP via Windows 10/11 software, provides extensive processing: input delays (100 ms), output delays (30 ms), 8-band parametric EQ on input/output, HP/LP filters (Bessel, Butterworth, Linkwitz-Riley), FIR processing up to 512 taps, internal 4×4 mixing matrix, peak and RMS limiters, phase inversion, user presets and full network supervision (voltage, current, temperature and protection status).

Its universal SMPS power supply (100–250 V AC) with active PFC and Soft-Switching technology ensures optimal efficiency, stable operation and maximum reliability even under challenging electrical conditions. The 3" LCD display with rotary encoder provides quick and intuitive access to all parameters, ideal for touring technicians and rental professionals.

Specifications:

• Type: ultra-high-power 4-channel Class-D touring amplifier with FIR DSP


• Power output:
  • 4×2000 W @8Ω (1 kHz)
  • 4×3400 W @4Ω (1 kHz)
  • 4×5750 W @2Ω (1 kHz)
  • 4×3400 W at 70/100 V
  • 6800 W bridge @8Ω (1 kHz)
  • 11,500 W bridge @4Ω (1 kHz)


• Operating modes: 4-channel, stereo, mono, parallel, bridge, 70/100 V lines


• Advanced DSP: FIR up to 512 taps, 8-band parametric EQ (input/output), delays (input 100 ms / output 30 ms), phase reverse, HP/LP filters (Bessel, Butterworth, Linkwitz-Riley), peak & RMS limiters, ±18 dB gain, 4×4 internal routing matrix


• IP control: Windows 10/11 software, real-time monitoring (voltage/current/temperature/protection), network daisy-chain via RJ45


• Inputs: 4× 3-pin XLR – 21 dB gain – 2 kΩ impedance


• Outputs: 4-pole speaker connectors – 2 Ω stable


• Audio performance: THD < 0.05 %, 20 Hz–20 kHz response, SNR >100 dB, damping factor 1000:1, 50 V/µs slew rate, 90 dBu crosstalk


• Power supply: universal SMPS 100–250 V AC, active PFC, Soft-Switch, max power consumption 3290 W


• Display: 3" LCD with rotary controller


• Construction: 1U steel chassis – front-to-back ventilation – axial fan – black powder-coated finish – IP20


• Dimensions: 483 × 455 × 45 mm (W × D × H) – 19" rackmount – 455 mm installation depth


• Weight: 13.2 kg


• Protections: short circuit, overload, overvoltage, DC protection, over-temperature, undervoltage


• Applications: XXL line-array systems, festivals, outdoor stages, international touring, long-distance 70/100 V installations, large-scale professional audio infrastructures



Key Points:

• Extreme power: up to 5750 W per channel at 2 Ω and 11,500 W in bridge mode — built for the most demanding line-array systems.


• 70/100 V compatibility: perfect for long-distance high-power installations.


• Professional FIR DSP: 512 taps, 8-band EQ, extended delays, advanced filtering and 4×4 routing.


• Full network control: real-time monitoring and full configuration via Windows software.


• Outstanding efficiency: >90 %, stable 2 Ω operation, multi-stage protection system.


• Rugged 1U touring chassis: powder-coated steel, front-to-back ventilation, ideal for mobile racks.


• Universal SMPS with PFC: optimal worldwide performance, low heat generation, maximum touring reliability.


• Ultimate flexibility: Lo-Z, 70/100 V, stereo, parallel, bridge — one amplifier for every large-scale configuration.
