DAP TA-4.2600

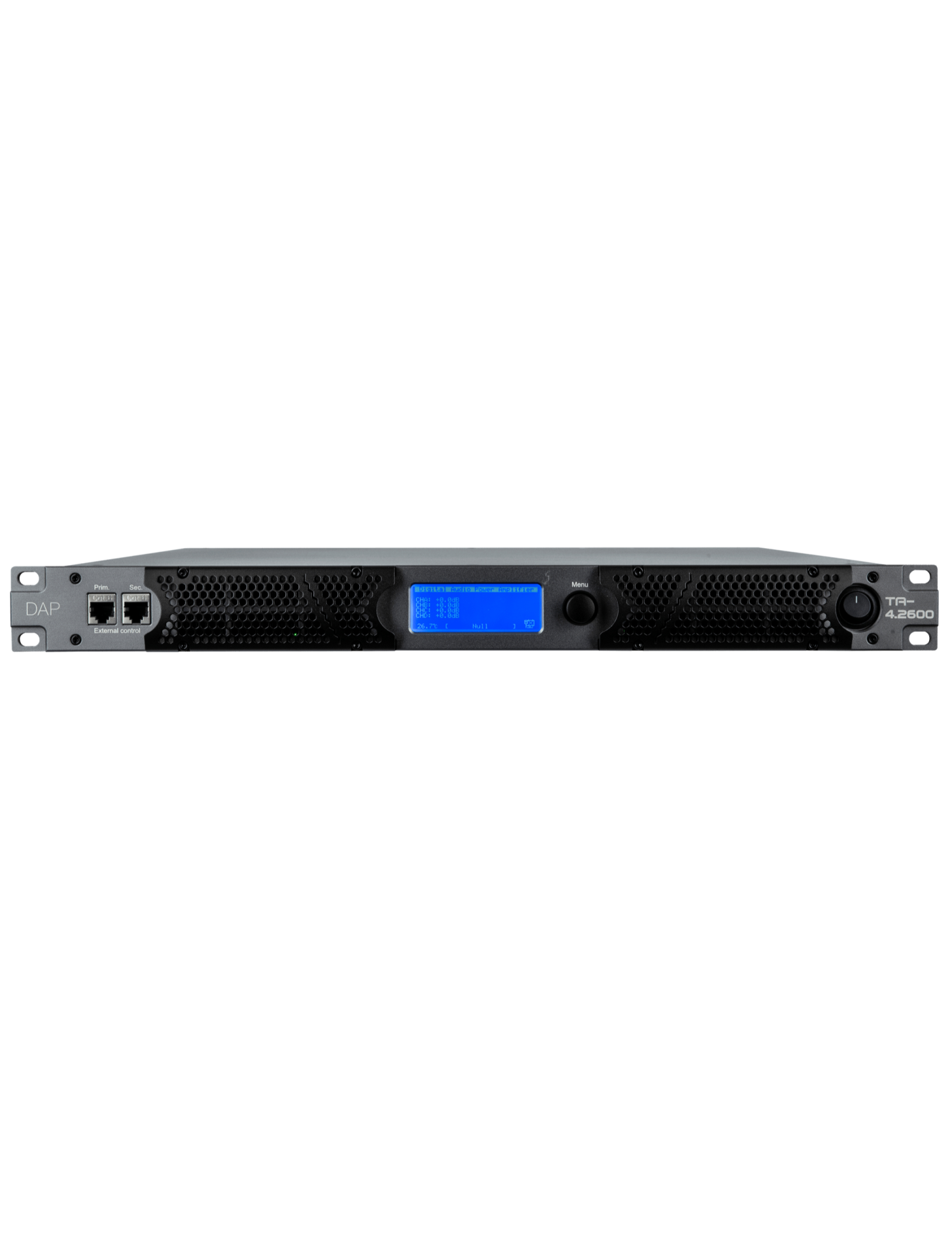

DAP TA-4.2600 – Ultra-powerful 4-channel touring amplifier with FIR DSP & 70/100 V modes

The TA-4.2600 stands at the top of the DAP TA touring amplifier series. Engineered for the most demanding applications, it delivers an exceptional 4 × 2600 W at 4 Ω, handles extreme 2-ohm loads and can operate in bridge mode up to 8600 W (1 kHz), or drive 70/100 V lines with impressive dynamic headroom. Housed in a compact 1U chassis, it combines massive output power, outstanding stability and a highly efficient Class D architecture (>90 %) to meet the needs of professional touring, large line-array systems and high-power installations.

Its integrated DSP, fully controllable via IP and Windows 10/11 software, provides comprehensive processing: input delays (100 ms), output delays (30 ms), 8-band parametric EQ on inputs/outputs, HP/LP filters (Bessel, Butterworth, Linkwitz-Riley), FIR filtering up to 512 taps, internal 4×4 routing, peak and RMS limiters, phase control and user presets. Network supervision allows real-time monitoring of voltage, current, temperature and protection states.

With its universal 100–250 V AC SMPS featuring active PFC and Soft-Switch technology, the TA-4.2600 ensures optimal performance anywhere in the world, even under challenging electrical conditions. The 3" LCD with rotary encoder gives fast, intuitive access to parameters—ideal for touring technicians and rental companies.

Specifications:

• Type: ultra-high-power 4-channel Class D touring amplifier with FIR DSP


• Power output:
  • 4×1500 W @8Ω (1 kHz)
  • 4×2600 W @4Ω (1 kHz)
  • 4×4350 W @2Ω (1 kHz)
  • 4×2500 W at 70/100 V outputs
  • 5000 W bridge @8Ω (1 kHz)
  • 8600 W bridge @4Ω (1 kHz)


• Operating modes: 4-channel, stereo, mono, parallel, bridge, 70/100 V lines


• Advanced DSP: FIR up to 512 taps, 8-band parametric EQ in/out, delays (input 100 ms / output 30 ms), phase, HP/LP filters (Bessel, Butterworth, Linkwitz-Riley), RMS + peak limiters, ±18 dB gain control, 4×4 internal routing


• IP control: Windows 10/11 PC software, monitoring of voltage/current/temperature/protection, network daisy-chain via RJ45


• Inputs: 4× 3-pin XLR – 21 dB gain – 2 kΩ impedance


• Outputs: 4-pole speaker connectors – 2 Ω stable


• Audio performance: THD < 0.05 %, 20 Hz–20 kHz response, SNR >105 dB, damping factor 1000:1, slew rate 50 V/µs, crosstalk 90 dBu


• Power supply: universal SMPS 100–250 V AC, active PFC, Soft-Switch, max consumption 2470 W


• Display: 3" LCD with rotary control


• Construction: 1U steel chassis – front-to-back ventilation – axial fan – black powder-coated – IP20


• Dimensions: 483 × 455 × 45 mm (W × D × H) – 19" rack – 455 mm installation depth


• Weight: 13.2 kg


• Protections: short-circuit, overload, over-voltage, DC fault, overheating, under-voltage


• Applications: large-scale line-array systems, touring, XXL events, long-distance 70/100 V installations, venues, professional audio parks



Key Points:

• Massive power: up to 4350 W per channel at 2 Ω and 8600 W in bridge — ideal for line-array and extreme applications.


• 70/100 V compatibility: perfect for long-distance installations requiring high power and maximum stability.


• Full FIR DSP: 512 taps, 8-band EQ in/out, extended delays, advanced filtering, 4×4 routing.


• Full network control: real-time monitoring + full configuration via Windows software.


• Efficiency & stability: >90 %, fully stable at 2 Ω, multi-level professional protection.


• 1U touring chassis: rugged steel, front-to-back cooling, compact footprint for mobile racks.


• Universal SMPS with PFC: optimal performance worldwide, low heat dissipation, maximum reliability.


• Ultimate flexibility: Lo-Z, 70/100 V, stereo, parallel, bridge — one amplifier for every configuration.
