DPA 4099-DP-1-101-A accordion

DPA 4099-DP-1-101-A – Stereo CORE+ Supercardioid Kit for Accordion

The DPA 4099 CORE+ is a miniature supercardioid condenser microphone designed to capture the nuances of acoustic instruments with precision and naturalness. Featuring CORE+ technology, it provides ultra-low distortion, an extended dynamic range, and exceptionally pure sound reproduction. With its 5.7 mm capsule and premium Danish design, it is the ultimate reference for musicians seeking clear, balanced, and faithful sound, both in studio and on stage.

Equipped with a supercardioid pattern, the 4099 CORE+ ensures excellent source isolation and high gain before feedback. Its modular construction with a MicroDot MicroLock® connector allows full compatibility with DAD adapters for wired or wireless use. The robust housing, certified IP58, provides enhanced dust and moisture resistance, while the internal suspension effectively reduces handling noise and unwanted vibrations. This microphone is a precision tool for sound engineers and professional instrumentalists.

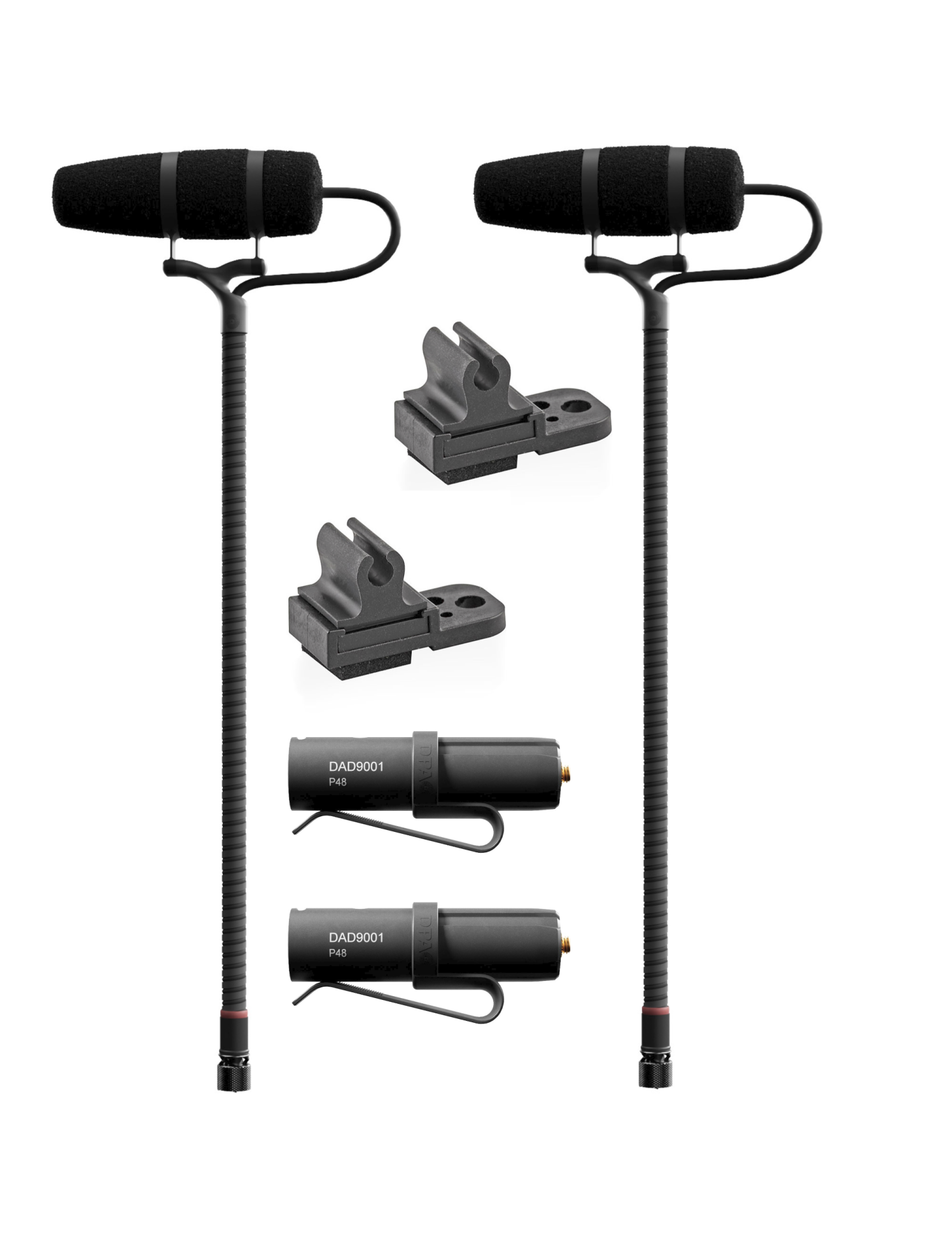

The DPA 4099-DP-1-101-A version is a stereo kit specially designed for accordion. It includes two 4099 CORE+ microphones with their AC4099 mounting clips and two DAD9001 adapters for standard P48 phantom power. The clips can be permanently mounted to the instrument with screws, ensuring optimal hold and perfect stability. The flexible gooseneck allows precise and reproducible positioning while securing the microphones safely without risking the accordion’s finish. This stereo kit delivers a detailed sound image and faithful reproduction of the instrument’s full range, from low to high notes, with complete transparency.

Features and Specifications:

• Type: Miniature supercardioid condenser microphones (stereo pair)


• Technology: DPA CORE+ – ultra-low distortion, extended dynamic range


• Version: Loud SPL (red ring) – up to 145 dB SPL before clipping


• Frequency Response: 20 Hz – 20 kHz (+2 dB at 10–12 kHz)


• Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)


• Equivalent Noise: Typ. 23 dB(A) re. 20 µPa


• Polar Pattern: Supercardioid – excellent isolation and high gain before feedback


• Signal-to-Noise Ratio: 71 dB(A), dynamic range 108 dB(A)


• Output Impedance: 30–40 Ω (microphone) / 100 Ω via DAD9001 adapter


• Power Supply: 48 V ±4 V via DAD9001 adapters (P48 phantom)


• Connector: Detachable MicroDot MicroLock®


• Gooseneck Length: 140 mm


• Capsule Dimensions: Ø 5.7 mm × 50 mm


• Weight: approx. 30 g per microphone (excluding adapter)


• Protection: IP58 – dust and moisture resistant


• Included Accessories: 2 AC4099 clips, 2 DAD9001 adapters, 2 windshields



Key Points:

• Complete Stereo Kit: two 4099 CORE+ microphones for natural and balanced capture


• DPA CORE+ Technology: extended dynamics and exceptional sonic accuracy


• AC4099 Clips: secure and stable attachment to accordion without risk to finish


• DAD9001 Adapters Included: balanced P48 phantom power


• Robust Danish Design: ideal for stage, studio, and touring
