DPA 4099-DP-1-101-CM – CORE+ Supercardioid Microphone Kit for Brass and Saxophone
The DPA 4099 CORE+ is a miniature supercardioid condenser microphone specially designed to capture the nuances of acoustic instruments with exceptional accuracy and clarity. Thanks to CORE+ technology, it delivers ultra-low distortion, a wide dynamic range, and a transparent, true-to-source sound reproduction. Its Danish design, featuring a 5.7 mm capsule and optimized directionality, makes it the reference choice for musicians and sound engineers in both studio and live applications.
With its supercardioid pickup pattern, the 4099 CORE+ ensures excellent source isolation and a high gain before feedback, even at high sound pressure levels. Its MicroDot MicroLock® connector provides full compatibility with DAD adapters for both wired and wireless setups. The modular construction, rated IP58, ensures high resistance to dust and moisture, while the internal shock mount effectively minimizes handling noise and unwanted vibrations.

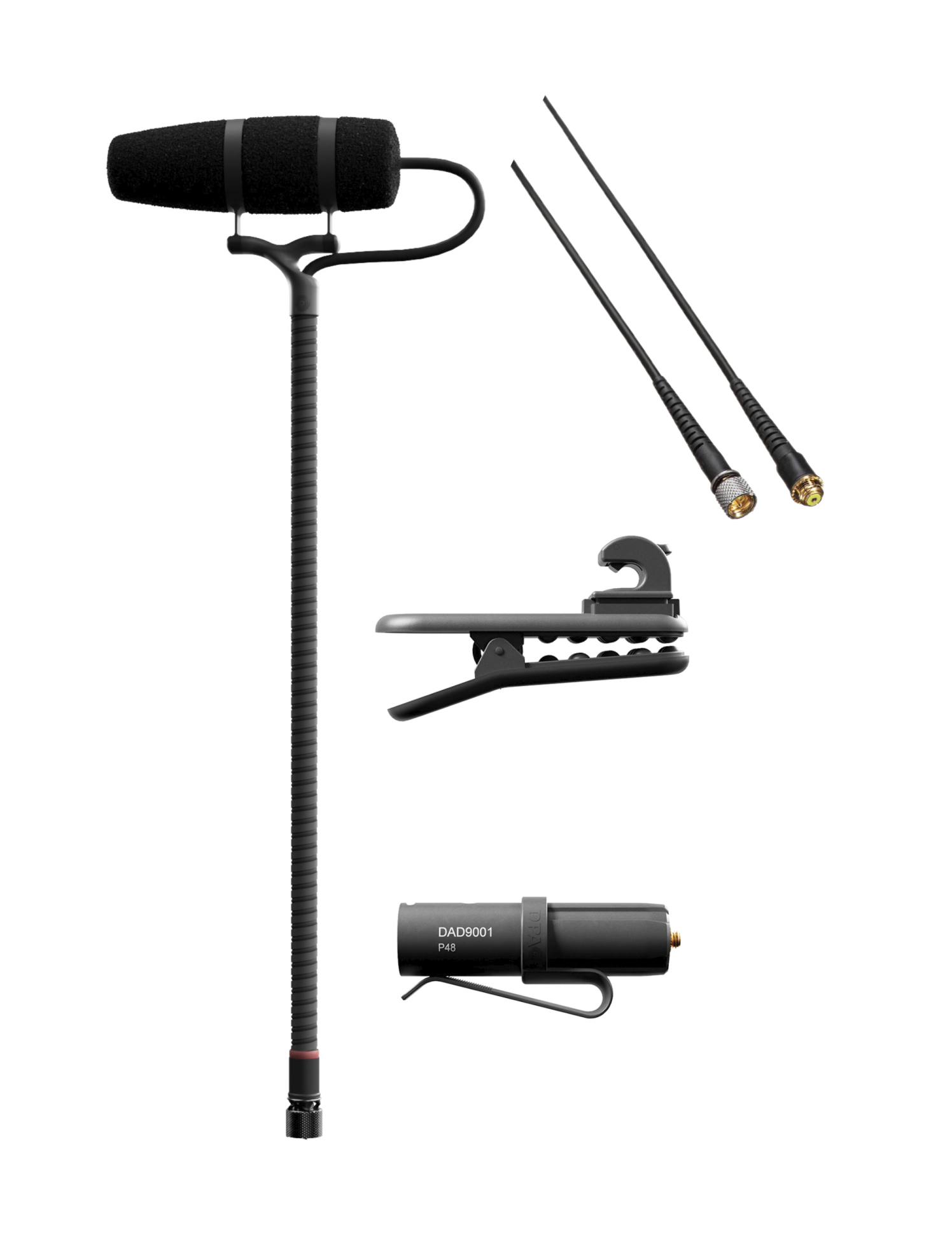

The DPA 4099-DP-1-101-CM is a complete kit designed for brass instruments and saxophones. It includes a 4099 CORE+ microphone in the Loud SPL version (up to 145 dB SPL), a CM-CLIP mounting clamp for brass, and a DAD9001 adapter for standard P48 phantom power. The CM-CLIP features the new G-MOUNT gooseneck locking system, allowing faster setup, greater stability, and precise mic positioning. The kit delivers faithful, powerful, and detailed reproduction of brass and wind instrument timbres across the full frequency spectrum.
Features and Specifications:
- Type: Miniature supercardioid condenser microphone
- Technology: DPA CORE+ – ultra-low distortion, extended dynamic range
- Version: Loud SPL (red ring) – up to 145 dB SPL before clipping
- Frequency response: 20 Hz – 20 kHz (+2 dB at 10–12 kHz)
- Sensitivity: 6 mV/Pa (–44 dB re. 1 V/Pa)
- Equivalent noise level: Typ. 23 dB(A) re. 20 µPa
- Directivity: Supercardioid – excellent isolation and off-axis rejection
- Signal-to-noise ratio: 71 dB(A), dynamic range 108 dB(A)
- Output impedance: 30–40 Ω (mic) / 100 Ω via DAD9001 adapter
- Power supply: 48 V ±4 V via DAD9001 adapter (P48 phantom power)
- Connector: Detachable MicroDot MicroLock®
- Gooseneck length: 140 mm
- Capsule dimensions: Ø 5.7 mm × 50 mm
- Weight: approx. 30 g (without adapter)
- Protection: IP58 – resistant to dust and moisture
- Included accessories: CM-CLIP, DAD9001 adapter, windscreen
Key Points:
- Complete kit for brass and saxophones: natural, dynamic and precise sound capture
- CM-CLIP with G-MOUNT system: enhanced stability, easy handling and accurate mic placement
- DPA CORE+ technology: minimal distortion and wide dynamic range
- DAD9001 adapter included: balanced P48 phantom power connection
- Premium Danish design: perfect for stage, studio and touring use
