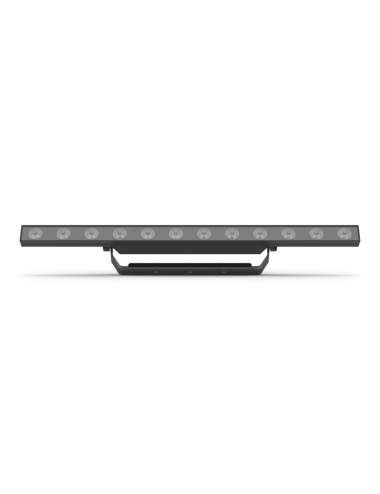

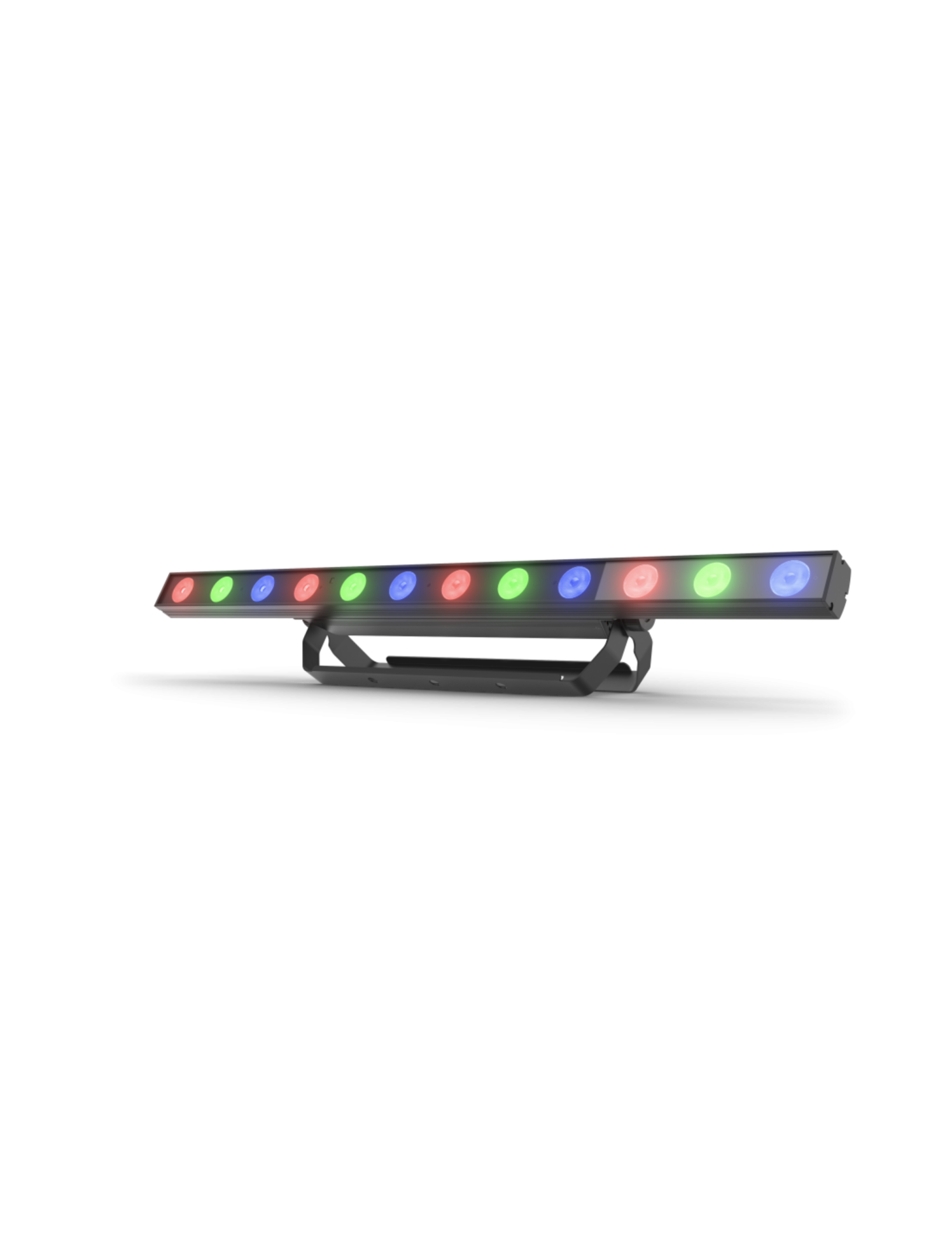

Chauvet DJ COLORband PIX ILS – RGB LED Bar with Pixel Mapping, ILS, D-Fi USB, and Wireless Control
The COLORband PIX ILS is a versatile LED bar offering blinder, wall wash, and pixel mapping effects. Equipped with 12 RGB LEDs of 3 W with individual control, it allows you to create dynamic animations and video effects with uniform output. Thanks to pixel mapping technology, you can design precise and original visual sequences, suitable for both stage and fixed installations.
This fixture is fully compatible with the ILS ecosystem (Integrated Light Shows) for automatic synchronization with other compatible devices. It also supports D-Fi™ USB connectivity (sold separately) for wireless DMX or master/slave control. The integrated RF receiver allows operation via RFC or RFC-XL remotes (optional), and numerous built-in programs are available with or without DMX.
Flicker-free operation makes the COLORband PIX ILS ideal for video recording and environments requiring silent lighting. Compact and easy to transport with the CHS-60 VIP Gear Bag (optional), it is perfect for DJs, live events, TV sets, or any setup requiring creative and reliable LED lighting.
Technical Specifications:
- RGB LED bar with pixel mapping and blinder or wall wash effects
- 12 RGB LEDs of 3 W with individual control – lifespan: approx. 50,000 hours
- Compatible with the ILS ecosystem (Integrated Light Shows – D-Fi™ USB sold separately)
- Wireless control via D-Fi USB, DMX, or RFC/RFC-XL remotes (optional)
- DMX channels: 3, 4, 6, 7, 8, 9, 12, 18, 36, or 41
- Beam angle: 14° / Field angle: 27°
- Illuminance: 4,142 lux @ 2 m / 663 lux @ 5 m
- Lumens: 1402
- Strobe rate: 0 to 20 Hz
- Power linking: 19 units @ 120 V / 35 units @ 230 V
- Power consumption: 49 W, 0.7 A @ 120 V, 60 Hz / 48 W, 0.4 A @ 230 V, 50 Hz
- Dimensions: 987 x 49 x 157 mm
- Weight: 3.2 kg
- DMX connectors: 3- and 5-pin XLR
- Approvals: CE, UKCA, RoHS, MET
- Included accessories: COLORband PIX ILS, power cord, quick reference guide
Key Features:
- Pixel mapping for custom visual effects and animations
- Individual LED control for creative and precise sequences
- Wireless control via D-Fi USB, RFC/RFC-XL, or DMX
- ILS compatibility for synchronized light shows
- Flicker-free and silent, ideal for video recording and quiet environments
