COLORband PiX-M ILS

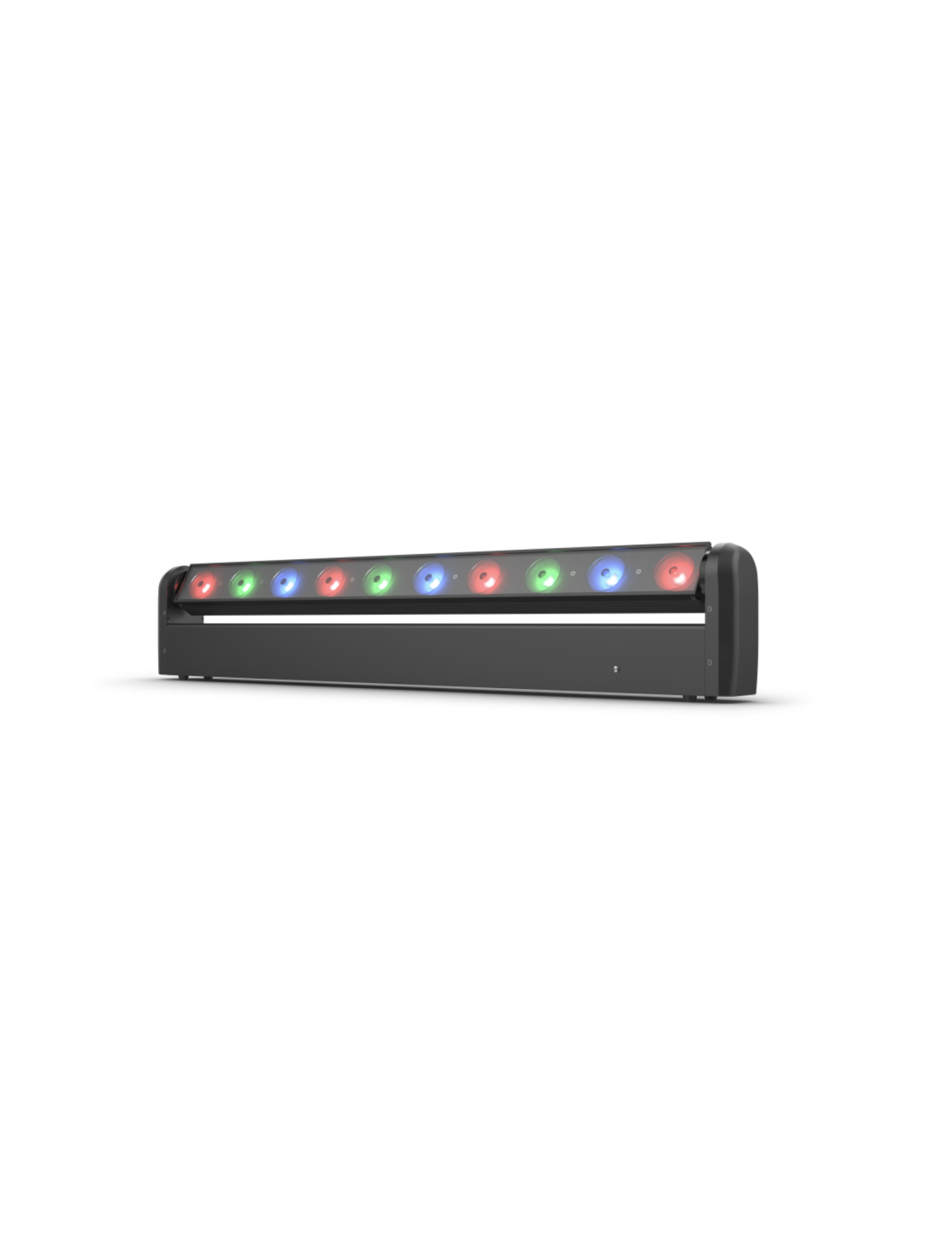

Chauvet DJ COLORband PiX-M ILS – Motorized RGB LED bar with pixel mapping, sweeping movements, ILS, D-Fi USB and wireless control

The COLORband PiX-M ILS is a versatile motorized LED bar delivering blinder, wall wash, pixel mapping and dynamic sweep effects. Featuring 10 x 6W RGB LEDs with individual control, it allows you to create eye-catching animations and video effects with smooth color blending. Integrated motors let you aim the light exactly where you need it, adding extra visual impact on stage or in fixed installations.

This fixture is fully compatible with the ILS (Integrated Light Shows) ecosystem for automatic synchronization with other compatible devices. It also supports D-Fi™ USB connectivity (sold separately) for wireless DMX or master/slave control. The built-in RF receiver enables control via RFC or RFC-XL remotes (optional), and numerous built-in programs are accessible with or without DMX. Integrated 3-pin and 5-pin DMX connectors offer flexible control options.

Flicker-free and capable of delivering powerful lighting effects, the COLORband PiX-M ILS is ideal for video productions, DJs, live concerts, or any installation requiring a creative and reliable motorized LED lighting solution. It is easily portable with the optional CHS-60 VIP Gear Bag.

Technical specifications:

• Motorized RGB LED bar with blinder, wall wash, pixel mapping and sweep effects


• 10 x 6W RGB LEDs with individual control – lifespan: approx. 50,000 hours


• Tilt movement: 245° for flexible positioning


• Compatible with the ILS ecosystem (Integrated Light Shows – D-Fi™ USB sold separately)


• Wireless control via D-Fi USB, DMX or RFC/RFC-XL remotes (optional)


• DMX channels: 5, 6, 8, 10, 17, 32 or 36


• Beam angle: 15° / Field angle: 27°


• Illuminance: 7441 lux @ 2 m


• Strobe rate: 0 to 29 Hz


• Power linking: 12 units @ 120 V / 20 units @ 230 V


• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)


• Power consumption: 86 W, 1.2 A @ 120 V, 60 Hz / 84 W, 0.7 A @ 230 V, 50 Hz


• Dimensions: 785 x 67 x 123 mm


• Weight: 3.7 kg


• DMX connectors: 3-pin and 5-pin XLR

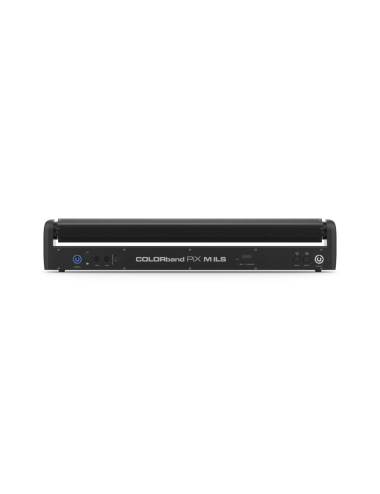

• Power connections: powerCON® in/out


• Certifications: CE, UKCA, RoHS


• Included accessories: COLORband PiX-M ILS, power cable, quick reference guide



Key points:

• Motorized LED bar for dynamic and spectacular sweeping effects


• Pixel mapping with individual LED control for creative visuals


• Precise aiming thanks to integrated motors (245° tilt)


• Wireless control via D-Fi USB, RFC/RFC-XL or DMX


• ILS compatibility for synchronized light shows
