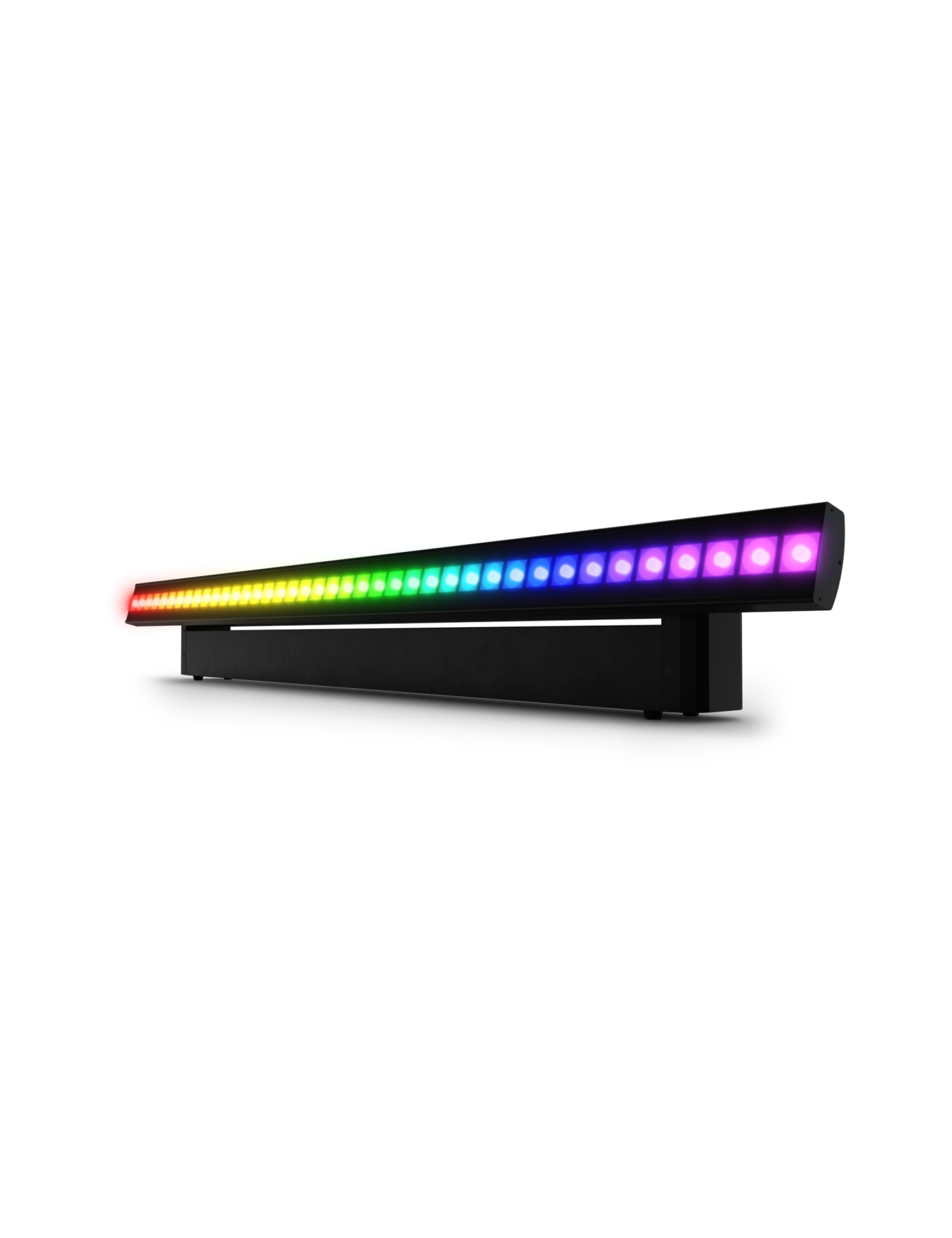

Chauvet DJ COLORband Spectra ILS – Motorized RGB+WW LED bar with pixel mapping and ILS compatibility
The Chauvet DJ COLORband Spectra ILS is a professional motorized LED bar designed to deliver maximum versatility on stage, at events, or in fixed installations. A true hybrid fixture, it can operate as a wall wash, linear blinder, dynamic effects bar, or a pixel-mappable LED strip. Thanks to its built-in motorization offering 180° tilt, you can easily aim the light exactly where you want, creating striking, fully customizable visual effects.
Equipped with 40 quad-color RGB+WW 4 W LEDs, the COLORband Spectra ILS delivers saturated colors, natural warm whites and impressive output with 3,872 lux at 2 m. Its 17° beam angle and 32° field angle provide smooth and even coverage, ideal for walls, stage areas or truss structures. Individual pixel control allows for advanced mapping effects, including dynamic chases, patterns and complex animations.
ILS compatibility and advanced control options
The COLORband Spectra ILS integrates seamlessly with the ILS (Integrated Lighting System) ecosystem from Chauvet DJ, enabling instant synchronization with other ILS-compatible fixtures for cohesive and fully automated light shows. With the optional D-Fi™ USB module, it supports wireless DMX and wireless Master/Slave, reducing cable runs and simplifying setups.
The bar offers multiple control modes: DMX (6, 11, 17, 19 or 164 channels), standalone, RF, Master/Slave and full ILS integration. This flexibility makes it a perfect solution for both event professionals and permanent installations requiring advanced visual effects.
Rugged chassis and professional connectivity

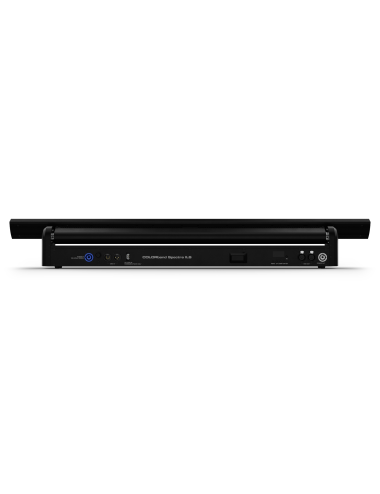

Built with a durable housing designed to withstand touring conditions and frequent setup/teardown, the COLORband Spectra ILS is ideal for rental companies and demanding technicians. It features 3- and 5-pin DMX connectors, along with powerCON® input/output for clean and reliable integration into any rig.
Compatible with the CHS-60 VIP Gear Bag, it is easy to transport and perfectly protected between events.
Technical Specifications:
- Type: Motorized LED bar (pixel-mapping, blinder, wash, chase)
- Tilt: 180° motorized
- Light source: 40 × 4 W quad-color RGB+WW LEDs (approx. 50,000 h lifespan)
- Illuminance: 3,872 lux @ 2 m
- Luminous flux: 1,938 lm
- Color temperature: 3,000 K to 14,000 K
- Beam angle: 17°
- Field angle: 32°
- DMX: 6, 11, 17, 19 or 164 channels
- DMX connectors: 3-pin and 5-pin XLR
- Control modes: DMX, ILS, RF, Master/Slave, standalone
- Wireless compatibility: D-Fi™ USB (optional)
- Strobe: 0 to 20 Hz
- Power linking: 9 units @ 120 V – 16 units @ 230 V
- Input voltage: 100–240 V AC, 50/60 Hz (auto-ranging)
- Power consumption: 86 W @ 120 V / 72 W @ 230 V
- Weight: 4.6 kg
- Dimensions: 1000 × 60 × 142 mm
- Optional controllers: RFC, RFC-XL, ILS Command
- Certifications: CE, RoHS, MET
Key Points:
- Professional versatility: Sweep effects, wall wash, blinder, or pixel-mapped visuals.
- Integrated motorization: 180° tilt for precise, dynamic positioning.
- Advanced control: DMX (up to 164 channels), ILS, RF, Master/Slave, standalone.
- D-Fi™ USB compatibility: Full wireless DMX or Master/Slave control.
- High output: 3,872 lux @ 2 m using RGB+WW LEDs.
- Rugged construction: Built for touring and intensive setups.
- Pro connectivity: 3/5-pin DMX + powerCON® in/out.
- Easy transport: Fits the CHS-60 VIP Gear Bag.
