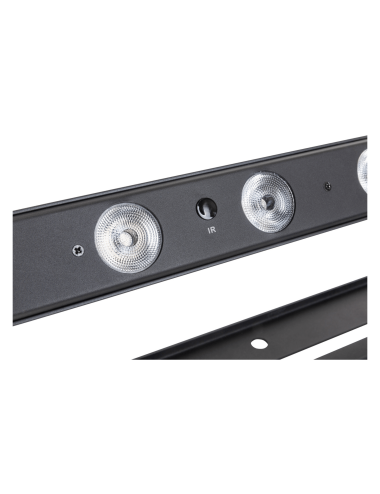

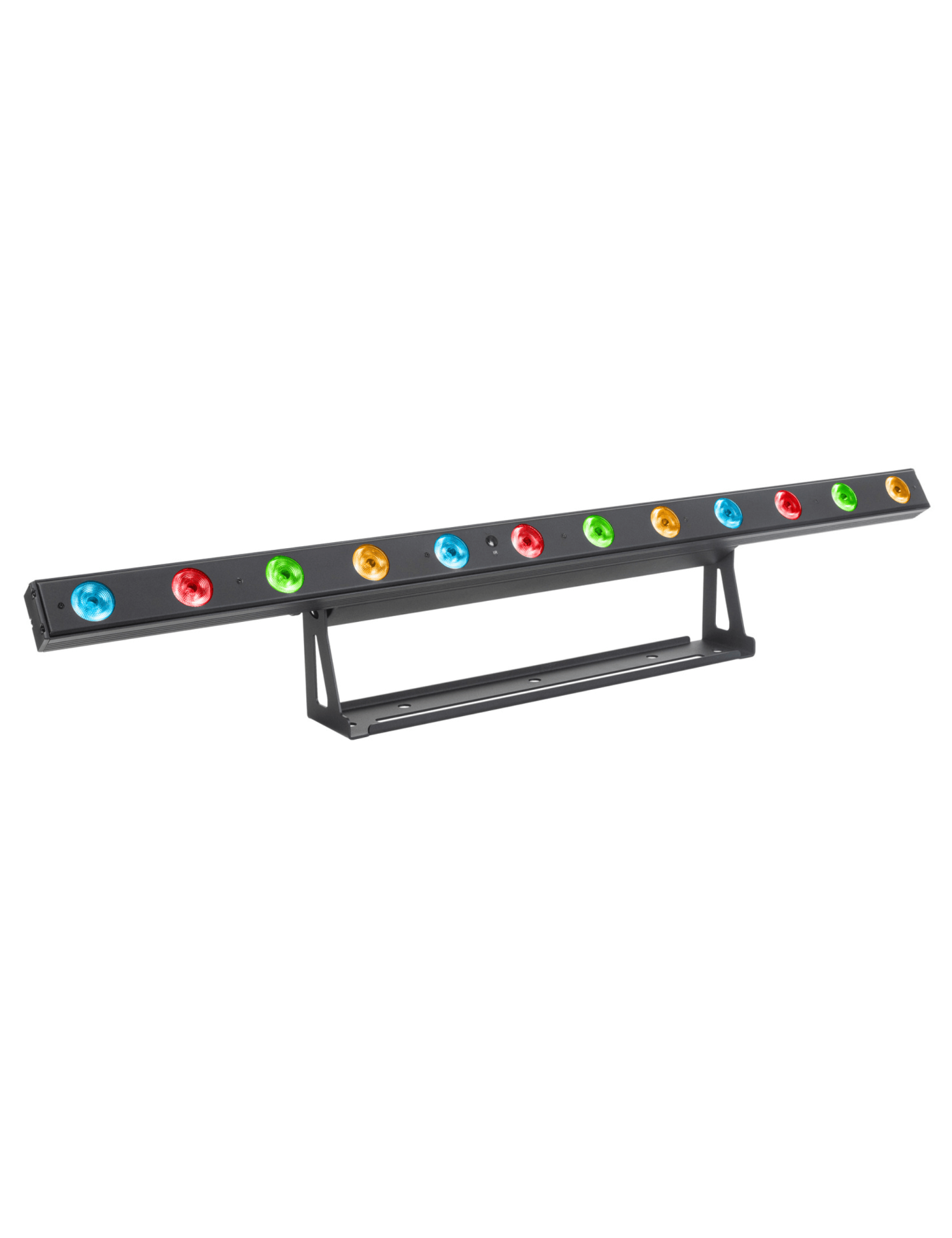

PixBar 12TC – RGB LED Light Bar with Individual Pixel Control
The PixBar 12TC is a versatile RGB LED light bar designed for DJs, clubs, stages, and event installations. Equipped with twelve 3W RGB LEDs with individual pixel control, it allows the creation of dynamic effects, complex chases, and precise lighting animations—perfect for energizing a stage or dancefloor. Its 23° beam angle ensures even and impactful light distribution, ideal for wash applications and linear effects.
With its extended 1-meter format, the PixBar 12TC is ideal for backlighting, architectural lighting, or highlighting structures. It is an essential tool for both mobile performers and fixed indoor installations.
Advanced control and maximum flexibility
The PixBar 12TC offers highly comprehensive DMX control with multiple configuration options (3, 4, 5, 8, 36, 39, or 41 channels), enabling simple operation or advanced pixel-mapping control. It also features numerous built-in automatic programs and a sound-active mode with an internal microphone for quick standalone use.
It can operate in Master/Slave mode for synchronized setups and includes a wireless infrared remote control, ideal for direct use without a DMX console. The PixBar 12TC is also compatible with the Ledcon-XL controller, allowing the use of chase patterns organized into 4 groups of 3 LEDs.
Wireless DMX ready and simplified integration
Prepared for wireless DMX, the PixBar 12TC accepts an optional WTR-DMX dongle, significantly reducing cabling and setup time. It features 3-pin XLR connections and PowerCon® or compatible connectors for clean and reliable power linking. Robust, easy to operate, and highly efficient, the PixBar 12TC stands out as a creative and powerful lighting solution for all indoor stage applications.
Technical Specifications:
- Type: RGB LED light bar with individual pixel control
- Light source: 12 × 3W RGB LEDs
- Beam angle: 23°
- Power consumption: 50 W
- Power supply: AC 100–240 V, 50/60 Hz
- Modes: Static standalone, automatic, sound-active, remote, manual, DMX, Master/Slave
- Protocols: DMX, Wireless DMX (optional)
- DMX channels: 3 / 4 / 5 / 8 / 36 / 39 / 41
- Sound activation: Yes, internal microphone
- Remote control: Infrared remote included
- Display: LED display
- Protection rating: Indoor
- Input connections: 3-pin XLR, optional wireless DMX, PowerCon® or compatible
- Output connections: 3-pin XLR, PowerCon® or compatible
- Dimensions: 100 × 14 × 8 cm
- Weight: 3.8 kg
- Color: Black
Key Points:
- Individual pixel control: Dynamic effects, chases, and advanced animations.
- 12 × 3W RGB LEDs: Intense colors and even light output.
- Extensive DMX modes: Up to 41 channels for precise control.
- Full versatility: Ideal for DJs, clubs, stages, and event setups.
- Wireless DMX ready: Fast installation with optional WTR-DMX dongle.
