4Bar Quad ILS

Chauvet DJ 4BAR Quad ILS – Complete Wash Lighting Bar with RGBA LEDs and ILS Compatibility

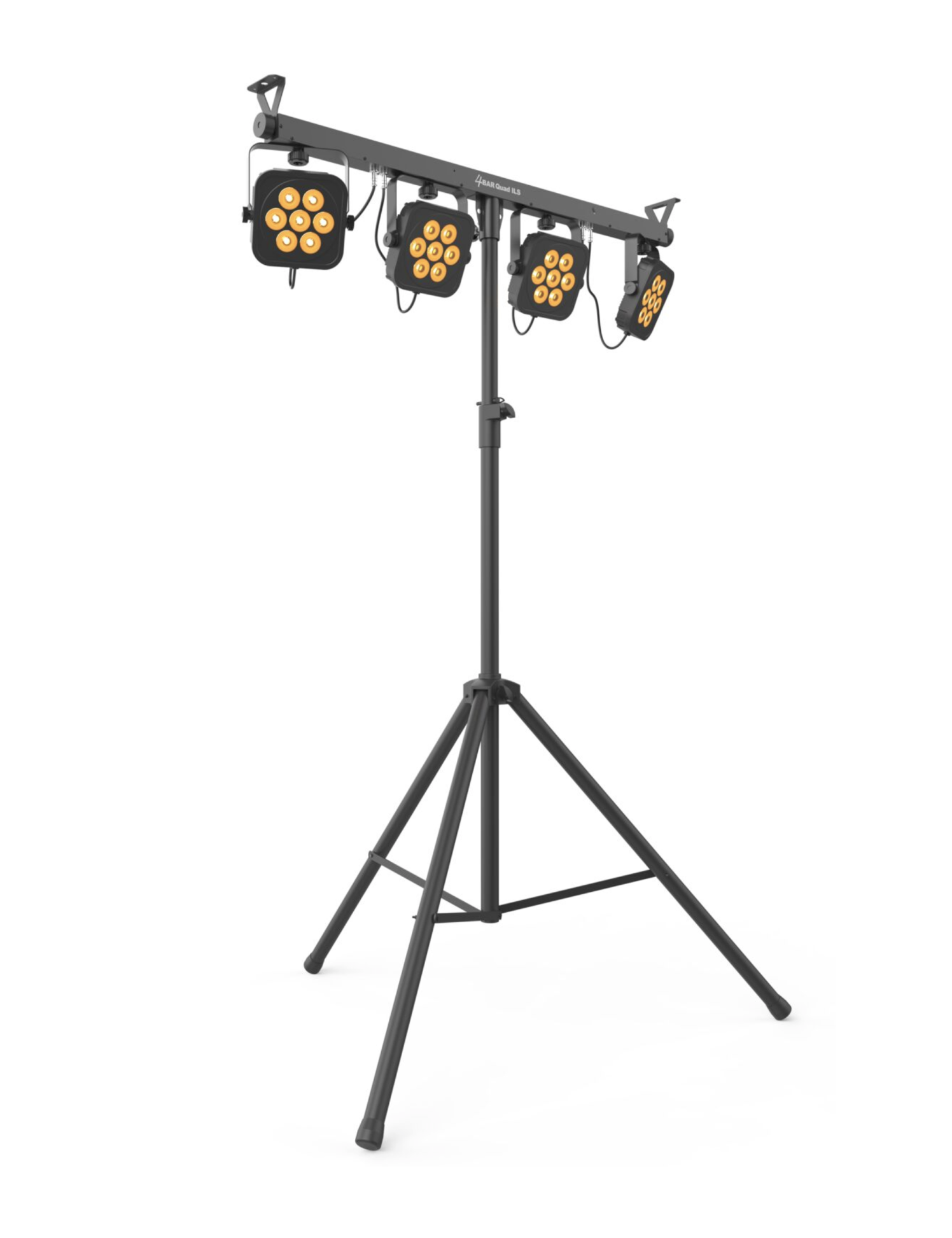

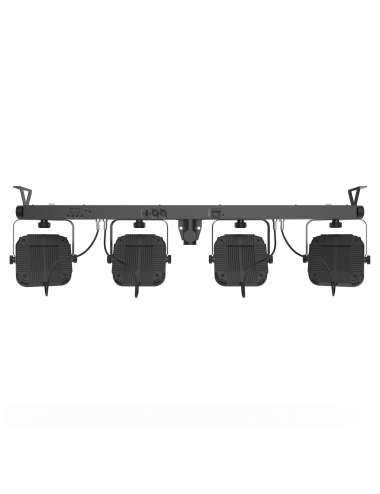

The 4BAR Quad ILS is a complete wash lighting solution equipped with high-intensity quad-color (RGBA) LEDs mounted on a single bar. With its 4 individually adjustable heads, it delivers full coverage and maximum flexibility for your performances. Easy to set up and operate, it comes with a sturdy tripod and carrying bag, ensuring quick and effortless installation.

Compatible with the ILS (Integrated Lighting System) ecosystem, the 4BAR Quad ILS allows you to create coordinated light shows with an unlimited number of different fixtures. It is also D-Fi USB compatible (sold separately) for wireless DMX or master/slave control.

Thanks to its striking amber LEDs, it can generate natural and warm color temperatures, perfect for enhancing your events. The included wireless footswitch offers instant control, while the optional IRC-6 controller further expands its usability. For even more flexibility, the 4BAR Quad ILS can be securely mounted on truss using its built-in bolts.

Technical Specifications:

• Type: 4-head wash lighting system with RGBA LEDs


• ILS compatibility for coordinated shows


• Wireless control via included footswitch or optional IRC-6


• D-Fi USB compatibility (sold separately) for wireless DMX


• DMX channels: 4, 6 or 19


• DMX connectors: 3-pin XLR


• Light source: 28 quad-color (RGBA) LEDs, 3.5 W, approx. 50,000 h lifespan


• Strobe rate: 0 to 20 Hz


• Beam angle: 14°


• Field angle: 23°


• Illuminance: 2,353 lux @ 2 m (per head)


• Input voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)


• Power consumption: 80 W, 1.2 A @ 120 V / 78 W, 0.6 A @ 230 V


• Dimensions: 1186 x 50.8 x 305 mm


• Weight: 5.5 kg (bar) / 0.6 kg (footswitch)


• Certifications: CE, RoHS, UKCA


• Operating frequencies: D-Fi (2.412 to 2.484 GHz) / footswitch (433 MHz)


• Maximum distance: 30.5 m with footswitch

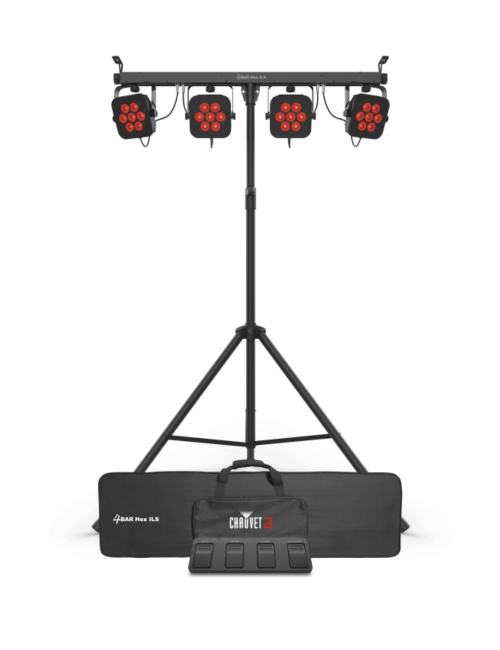

• Included accessories: power cable, carrying bag, tripod with bag, wireless footswitch, quick reference guide



Key Features:

• Complete solution with 4 high-intensity RGBA wash heads


• ILS compatibility for coordinated shows with other fixtures


• Wireless control via included footswitch or optional IRC-6


• D-Fi USB compatibility for wireless DMX or master/slave control


• Quick setup with included tripod and bags


• Maximum coverage thanks to 4 individually adjustable heads


• Secure mounting on truss using built-in bolts
