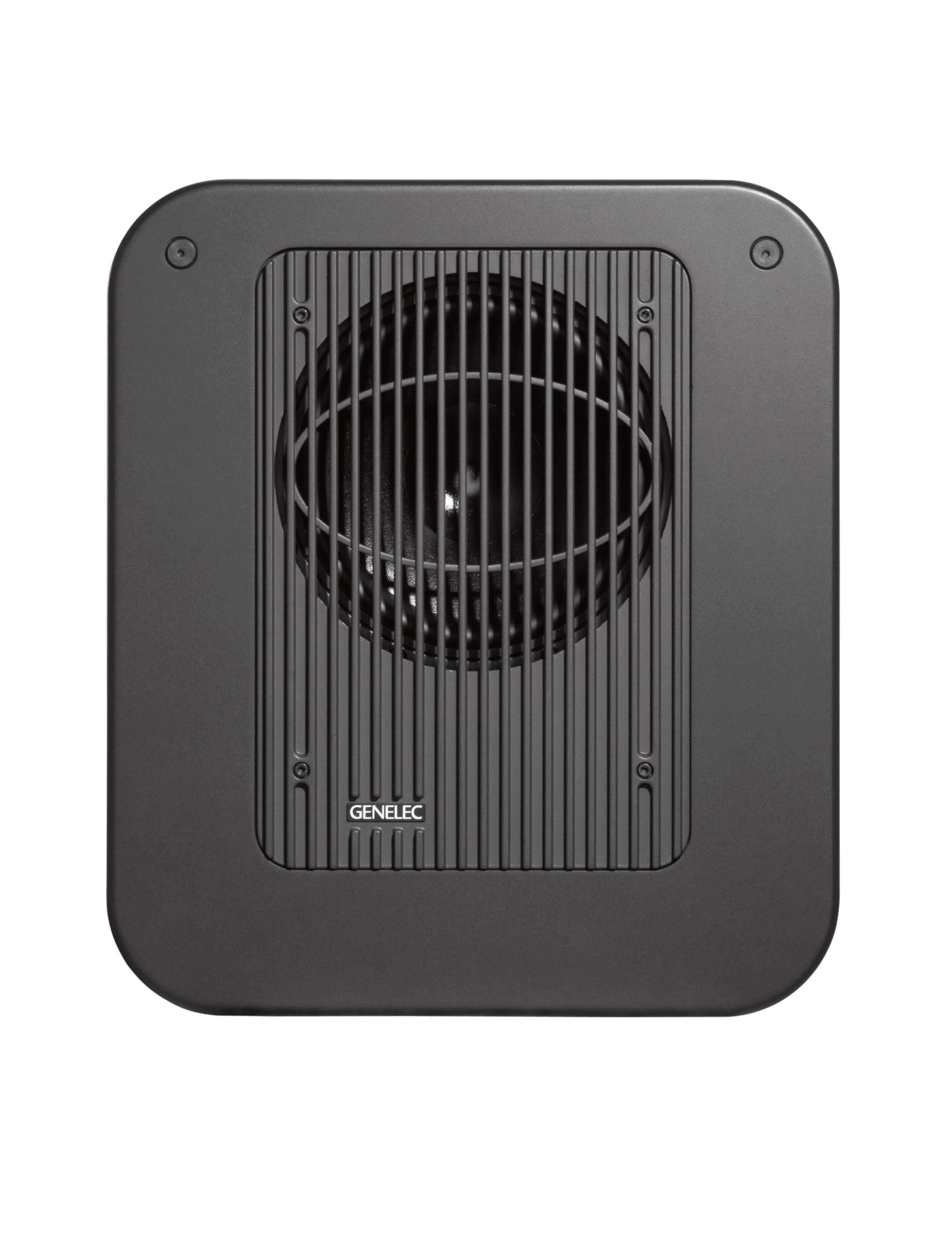

7360A SAM Subwoofer

The 7360A is an active subwoofer designed to offer a precise and powerful return of low frequencies, with an impressive extension up to 19 Hz and a sound pressure of up to 109 dB SPL. Thanks to its technology-based design Laminar Spiral Enclosure (LSETM), it guarantees a diffusion of bass clean, without distortion and articulated, ideal for mixing studios, post-productions, broadcast and OB vehicles (Outside Broadcast). With his 250 mm speaker, sound 300 W amplification in class D, and sound integrated bass manager 7360A optimizes the distribution of severe frequencies and improves the overall dynamics of the listening system.

The 7360A is part of the range of subwoofers SAMTM (Smart Active Monitoring) of Genelec, which also includes the 7350A, 7370A and 7380A, each adapted to specific configurations according to the power and extension needs of the bass. Through integration with the gLMTM software, this subwoofer can be intelligently calibrated to adapt to the acoustic characteristics of the room. GLMTM adjusts phase, level, frequency and delay, ensuring perfect cohesion between the subwoofer and the monitoring speakers.

With numerous AES/EBU analog and digital inputs and outputs 7360A is designed for stereo and multichannel systems. Sound compact and robust design, allied with intelligent Signal Management Technology (ISSTM) optimised energy consumption and efficient operation. Whether for mixing, mastering or audio post-processing, the 7360A is positioned as a essential reference for ultra-precise low frequency monitoring.

Characteristics:

• Subwoofer of active monitoring studio


• Frequency response : 19 Hz - 150 Hz (-6 dB)


• Frequency response accuracy : ±3 dB (19 Hz - 100 Hz)


• SPL max : Short term : ≥109 dB / Crest ≥114 dB


• Amplification 300 W (Class D)


• Speaker : Diameter 250 mm (10"), magnetically shielded cone


• Case Laminar Spiral Enclosure Technology (LSETM)


• 7 x entries Analog XLR / 7 x outputs Analog XLR


• 1 x input and output AES/EBU XLR


• 1 x input Analogue XLR LFE


• 1 x output Analogue XLR LFE


• 2 x RJ45 ports (GLMTM control)


• Dimensions (W x H x P) : 462 x 527 x 363 mm


• Weight : 27 kg

Key Points:

• Extended frequency response (19 Hz - 150 Hz, -6 dB) for the return of serious ultra-precise


• Laminar Spiral Enclosure Technology (LSETM) for distortion-free bass diffusion


• Smart Active Monitoring (SAMTM) and GLMTM calibration for perfect integration into the acoustic environment


• Amplification in class D of 300 W providing a maximum sound pressure level of 109 dB SPL


• Complete connector (A analogue XLR and AES/EBU, RJ45 for network control) suitable for stereo and multichannel installations
