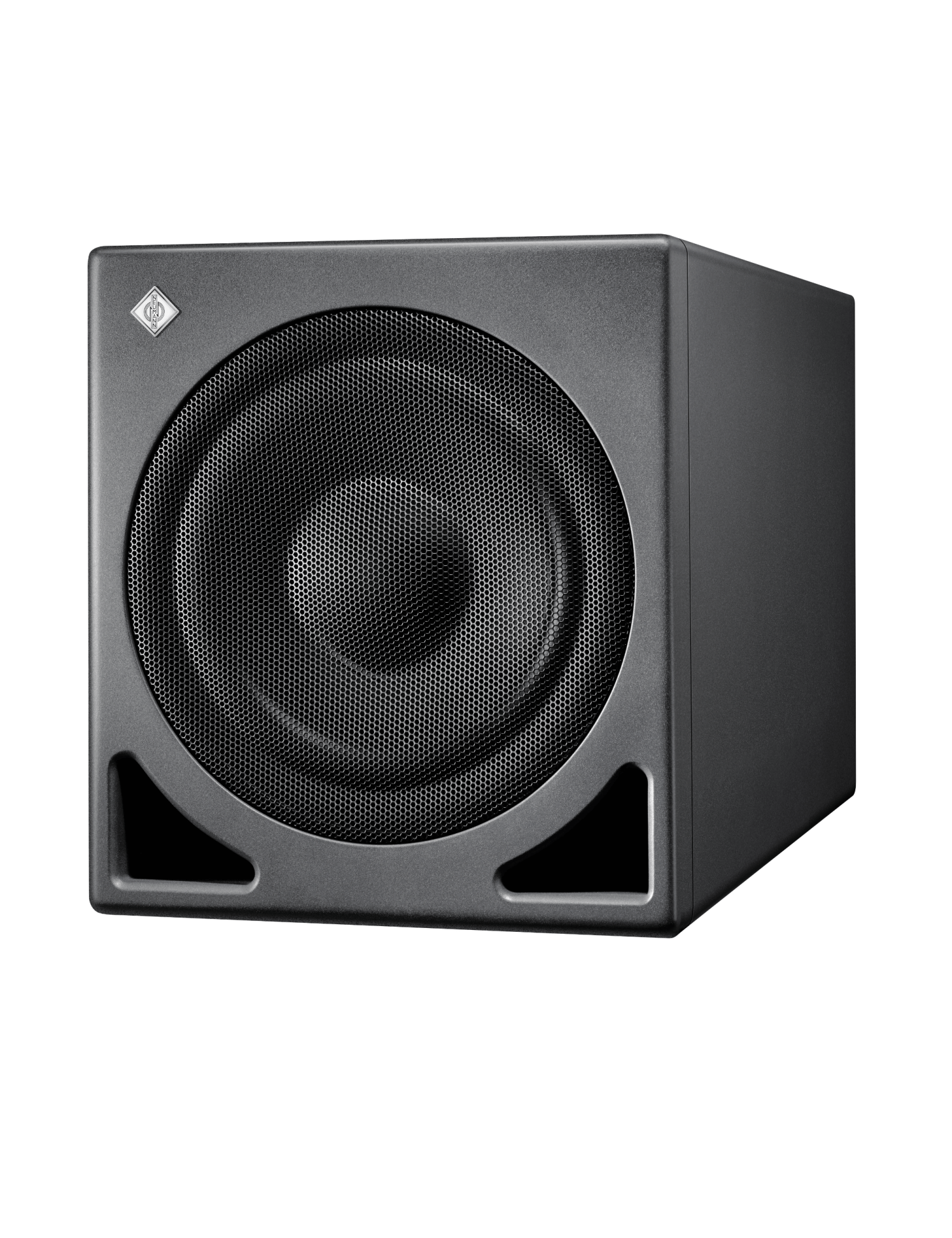

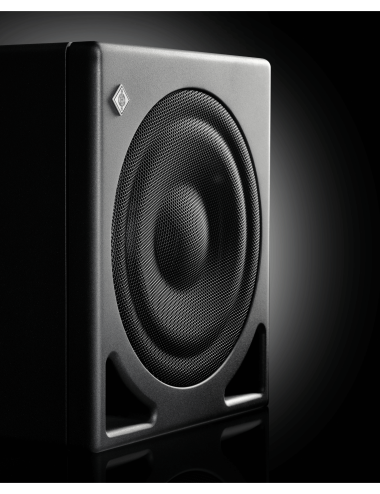

Neumann KH 805 II – Reference 10" DSP Subwoofer for Studio Monitoring
The Neumann KH 805 II is a next-generation professional subwoofer, designed to deliver extended low-frequency reproduction down to 16 Hz with exceptional accuracy. Powered by DSP, it ensures reliable sound reproduction, perfect alignment via the MA 1 Automatic Monitor Alignment system (sold separately), and optimal integration with KH series monitors. With flexible stereo bass management and increased power, it is the ideal companion for Neumann KH 150 and KH 310 monitors, as well as for surround and immersive systems.
Equipped with a 10’’ long-excursion woofer using Neumann’s proprietary Extremely Linear Force Factor™ (ELFF™) technology, the KH 805 II delivers powerful, precise bass with extremely low distortion, even at high sound pressure levels. Its ultra-rigid cabinet and optimized bass-reflex system eliminate resonances and ensure faithful low-end reproduction. This subwoofer offers about twice the power of the KH 750 DSP, opening new possibilities for mixing, mastering, and post-production.
Featuring balanced analog inputs and outputs, as well as digital AES3/S-PDIF connectivity, the KH 805 II integrates seamlessly into the most demanding studio environments. Compatibility with the MA 1 software enables precise alignment even with analog KH series monitors, optimizing frequency and phase response. Robust, versatile, and highly accurate, it is an indispensable tool for music, broadcast, and post-production studios.
Specifications:
- Type: Professional active subwoofer with DSP, bass-reflex with front-firing ports
- Woofer: 10’’ (265 mm) long-throw with ELFF™ technology, metal protection grille
- Frequency response (±6 dB): 16 Hz – 750 Hz | (±3 dB): 18 Hz – 310 Hz
- Frequency response consistency: 20 Hz – 295 Hz, ±1.5 dB
- Max SPL: 110 dB (50–100 Hz, 3% THD, 1 m half space); up to 118 dB SPL (Dolby DARDT bass managed)
- Distortion: THD < 0.5 % between 42 – 200 Hz (95 dB SPL @ 1 m)

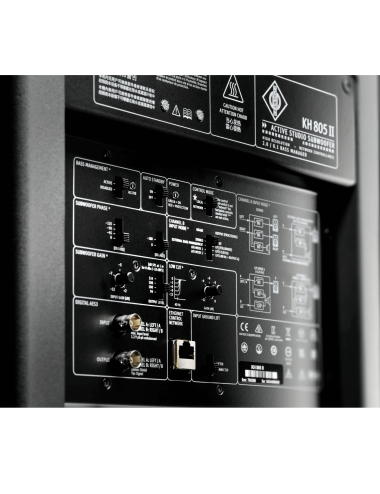

- Analog connectivity: 2x balanced XLR inputs, 2x balanced XLR outputs
- Input impedance: >13 kΩ – max level +24 dBu
- Digital connectivity: BNC I/O (75 Ω) AES3 and S/PDIF – 16 to 24-bit resolution, up to 192 kHz
- Latency: 1.5 ms (A-D-A), 1.2 ms (D-A); delay adjustable up to 100 ms
- Amplifier power: 222 W RMS (Class D, universal SMPS 100–240 V)
- Local controls: input gain (+2 to –12 dB), output level (94 / 100 / 108 / 114 dB SPL), phase (0°, 45°, 90°, 135°, 180°), low cut (30 Hz, 0 to –12 dB)
- Control & calibration: network via Ethernet, compatible with Neumann MA 1 Automatic Monitor Alignment (sub + KH analog speakers)
- Filters & bass management: fixed 80 Hz crossover (24 dB/oct), switchable bass management (2.0 / 0.1 / LFE)
- Protection: smart limiters (peak, thermal, power supply, current), start-up mute
- Power consumption: 17 W (idle), 310 W max, <300 mW auto-standby (20 min)
- Dimensions: 368 x 330 x 645 mm (H x W x D)
- Net weight: 25.5 kg
- Finish: painted wood cabinet, metallic anthracite (RAL 7021), rear panel black (RAL 9005)
- Included accessories: power cables, quick start guide, user manual
Key Points:
- Powerful and precise bass down to 16 Hz for reference monitoring
- Integrated DSP with MA 1 automatic alignment
- 10’’ ELFF™ woofer with ultra-low distortion
- Comprehensive connectivity: balanced XLR and digital AES3/S-PDIF
- Robust, optimized cabinet for accurate and resonance-free reproduction
