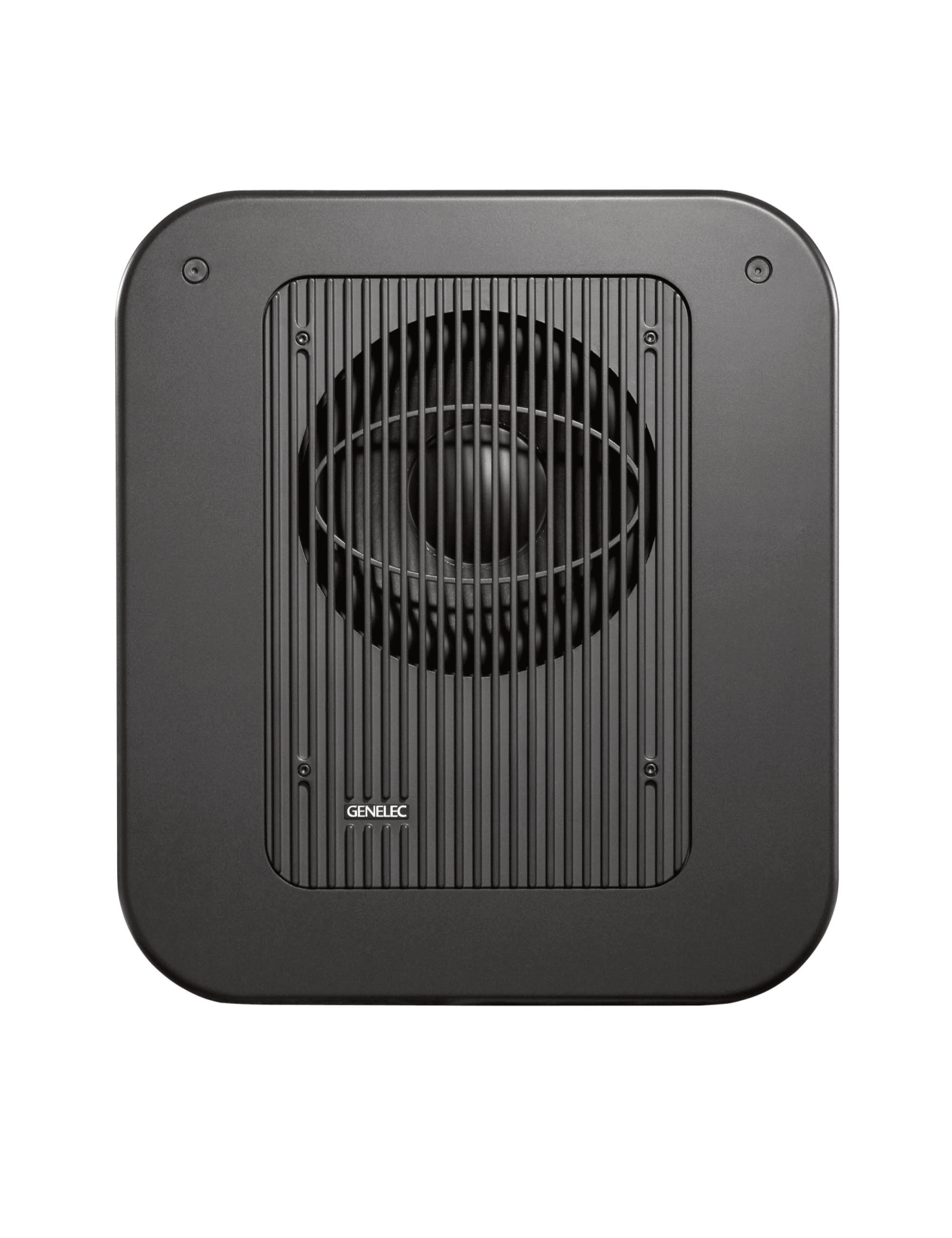

7370A SAM Subwoofer

The 7370A is a high-precision active subwoofer designed for music studios, post-production and broadcast. With a 305 mm speaker (12") and an amplifier class D of 400 W, it offers a impressive frequency response from 19 Hz to 150 Hz (-6 dB) with a Maximum SPL of 113 dB. Thanks to its design Laminar Spiral Enclosure (LSETM), it guarantees a return of bass clean, detailed and non-distorting, even at high volume levels. This model surpasses the more compact subwoofers of the Genelec series, such as the 7360A and 7350A, while remaining more accessible than the 7380A, designed for most demanding configurations.

The 7370A integrates technology Smart Active Monitoring (SAMTM), allowing automatic calibration via GLMTM software. This solution analyses the acoustics of the part and adjusts automatically phase, level, frequency and delay to ensure optimal integration with your monitoring speakers. For configurations stereo or multichannel, the 7370A guarantees extremely accurate low frequency monitoring, providing mixing which translates faithfully into all listening systems.

In terms of connectivity, the 7370A offers analog XLR inputs and outputs, AES/EBU and RJ45 for network control, making its integration simple and flexible in any professional audio production environment. In addition, with its intelligent Signal Sensing (ISSTM) Power Management System, it reduces energy consumption when not used. Robust and designed to last, this subwoofer is a essential reference for sound engineers and mixing professionals looking for a low frequency monitoring solution accurate and efficient.

Characteristics:

• Subwoofer of active monitoring studio


• Frequency response : 19 Hz - 150 Hz (-6 dB)


• Frequency response accuracy : ±3 dB (19 Hz - 100 Hz)


• SPL max : Short term : ≥113 dB / Crest ≥118 dB


• Amplification : 400 W (Class D)


• Speaker : Diameter 305 mm (12"), magnetically shielded cone


• Case Laminar Spiral Enclosure Technology (LSETM)


• 7 x entries Analog XLR / 7 x outputs Analog XLR


• 1 x input and output AES/EBU XLR


• 1 x input Analogue XLR LFE


• 1 x output Analogue XLR LFE


• 2 x RJ45 ports (GLMTM control)


• Dimensions (W x H x P) : 555 x 625 x 496 mm


• Weight : 48 kg

Key Points:

• Extended frequency response (19 Hz - 150 Hz, -6 dB) for deep and precise basses


• Laminar Spiral Enclosure Design (LSETM) ensuring a net, distortion-free sound, even at high volume


• Smart Active Monitoring Technology (SAMTM) and GLMTM calibration for optimal acoustic integration


• Class D expansion of 400 W, offering a maximum SPL of 113 dB (118 dB peak)


• Full connection (A analogue XLR, AES/EBU, RJ45 for GLMTM) suitable for stereo and multichannel systems
