7040A PM

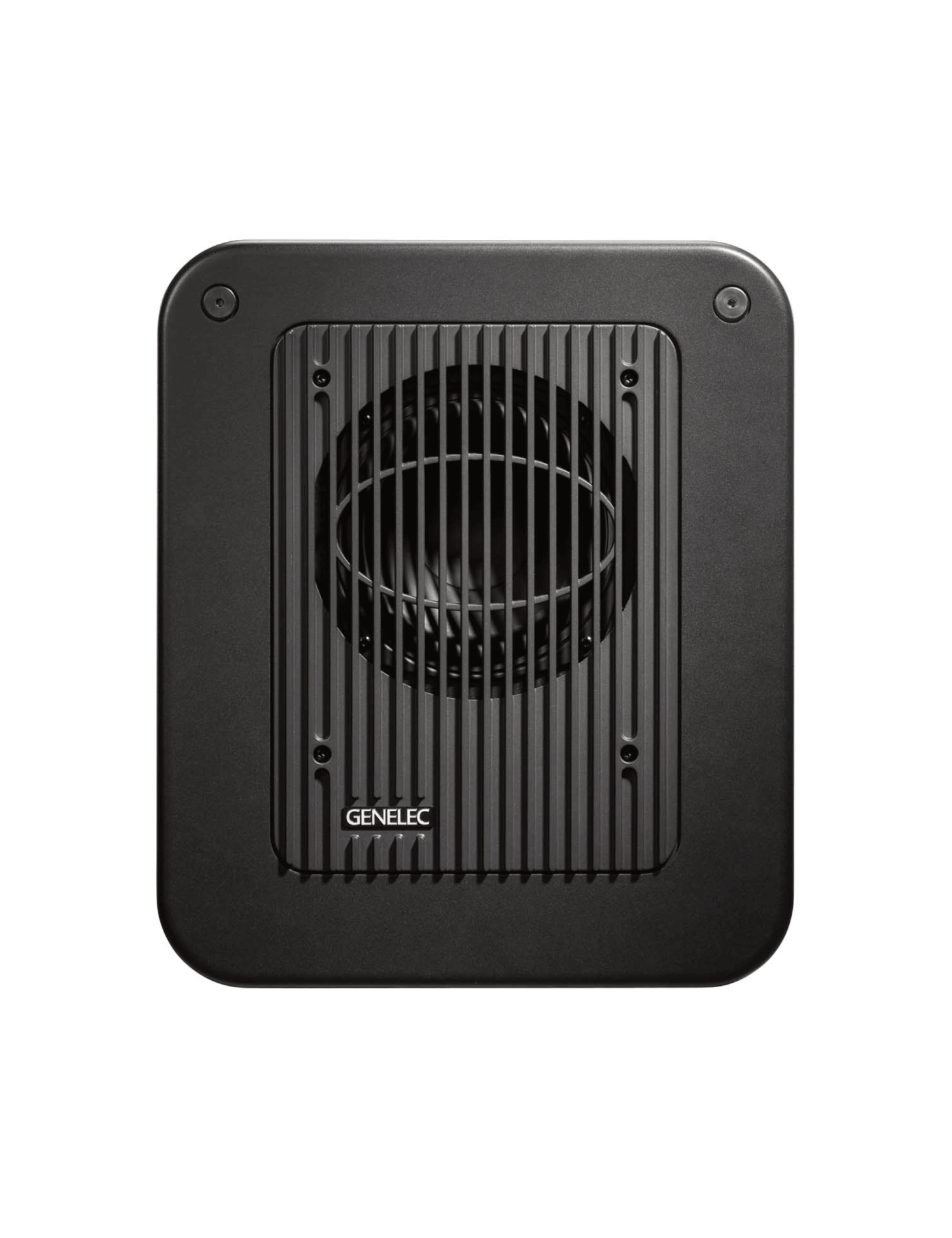

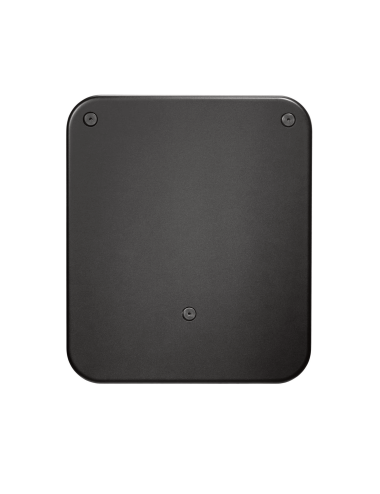

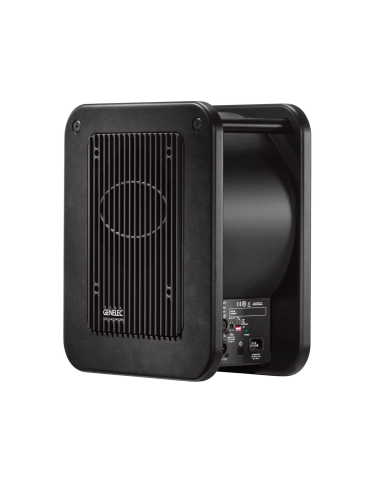

The Genelec 7040A is the most compact professional bass box of the brand, designed to offer an extension of the serious controlled and precise, even in the most restricted workspaces. Do not be deceived by its format: behind its small size is a state-of-the-art technology capable of going down to 30 Hz, with minimum distortion and maximum SPL of 100 dB. Thanks to its laminar Spiral EnclosureTM (LSETM) design, the 7040A guarantees fast response and optimal air flow management, for a clean and controlled serious.

Associated with monitors Genelec 8010A or 8020D, it forms a fully consistent system. The bass integrated management makes it possible to filter the low frequencies of satellites and redirect them to the subwoofer, which improves system accuracy while increasing the dynamic margin of the main speakers. This approach allows better mix clarity, lightening the charge of monitors on the low spectrum.

If you need a stronger serious for a larger room, the Genelec 7050C, his older brother, will be the ideal choice, with an extended answer up to 24 Hz and increased power (130 W). But for small studios, home studios or mobile workstations, the 7040A is a concentrate of efficiency, integrating all brand technologies into a minimalist, reliable and professional design.

Characteristics:

• Subwoofer of active monitoring studio


• Frequency response : 33 Hz – 85 Hz (± 3 dB)


• Frequency response accuracy : -6 dB (30 Hz - 90 Hz)


• SPL max ≥100 dB


• Amplification : 50 W (Class D)


• Speaker : diameter 6.5" (165 mm), magnetically shielded cone


• Harmonic distortion (at 90 dB SPL) 40–85 Hz, 2nd harmonic ≤ 2,5 %


• 2 x entries Analog XLR / 2 x outputs XLR analog (Left / right)


• Construction: MDF, Bass-reflex type


• Integrated technologies : Laminar Spiral EnclosureTM (LSETM), Bass Management System, Active Crossovers, Intelligent Signal Sensing (ISSTM)


• Room Response Compensation


• Dimensions (W x H x P) : 350 x 410 x 205 mm


• Weight : 11.3 kg

Key Points:

• Ultra-compact subwoofer with a grave articulated up to 30 Hz


• LSETM Technology for a laminar airflow without unwanted vibration


• Bass integrated management to relieve satellite monitors


• 50 W Class D amplifier, efficient and low distortion


• Sound response checks for optimal piece integration
