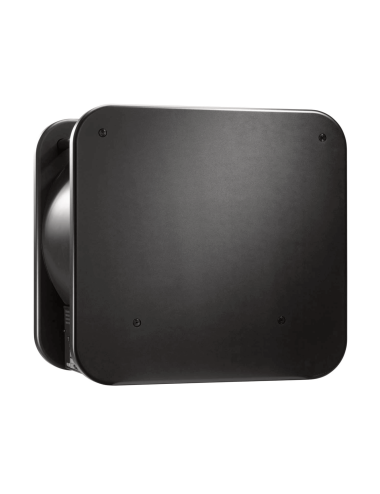

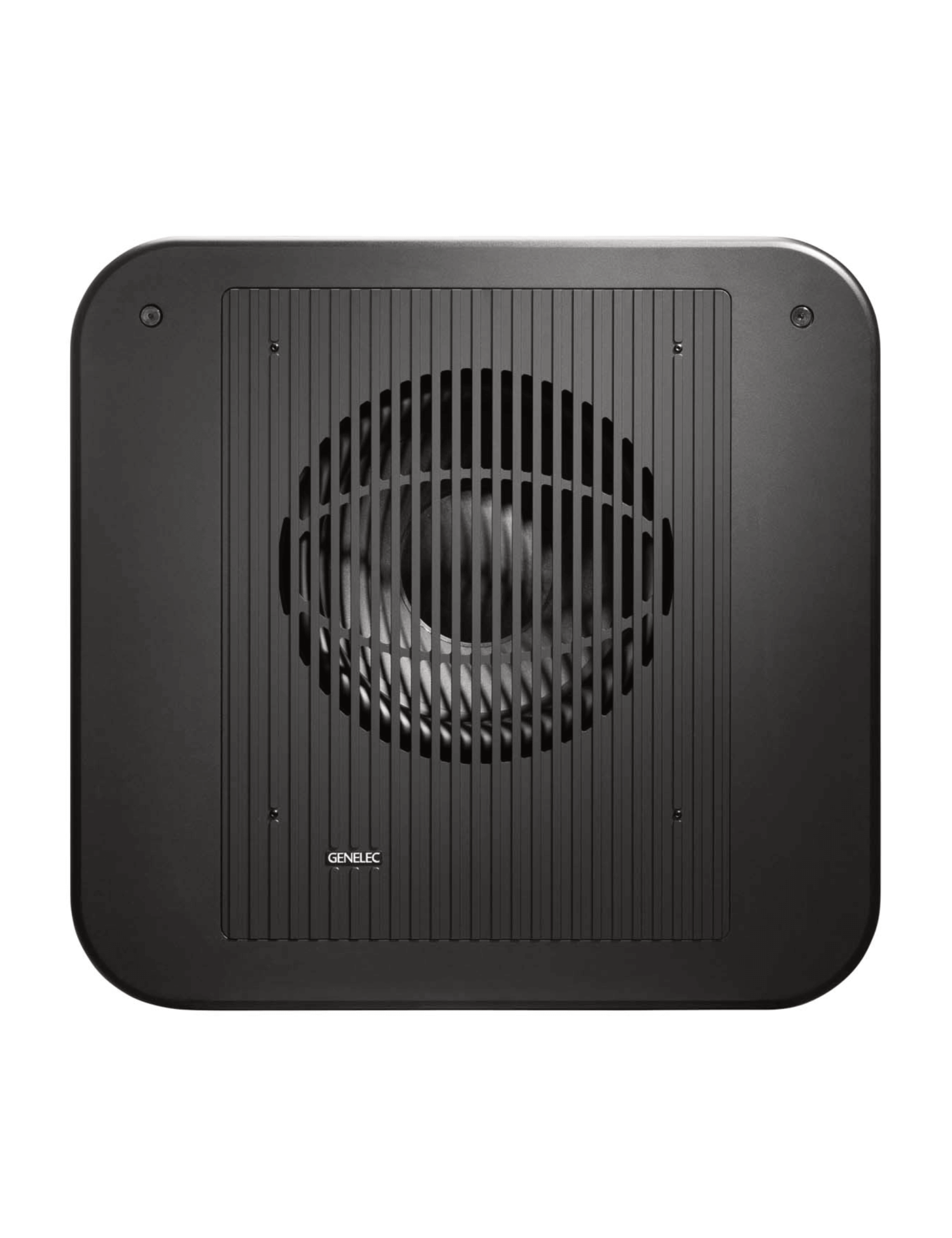

7380A SAM Subwoofer

The Genelec 7380A is a reference active subwoofer, designed to offer bass restitution of exceptional precision, even at high noise levels. With frequency response extended up to 16 Hz (-6 dB), 1 15 inches (381 mm) speaker and an amplifier in class D of 800 W, it is able to produce a Maximum SPL of 119 dB (123 dB peak). Technology Laminar Spiral Enclosure (LSETM), this box guarantees a clean, powerful and distortion-free restitution, even in demanding environments such as music production, post-production, cinema and broadcast.

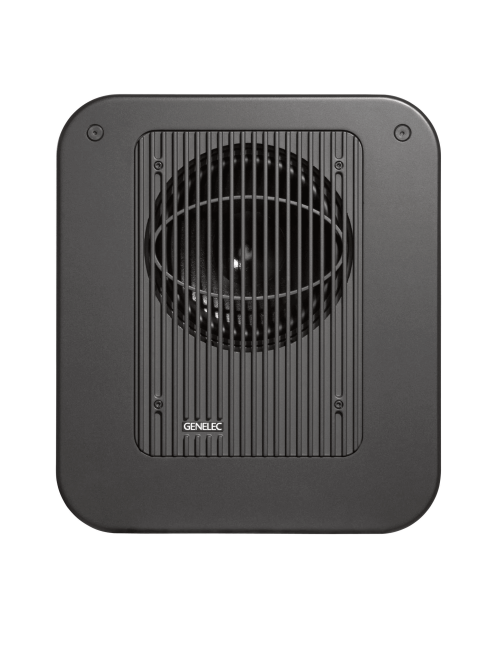

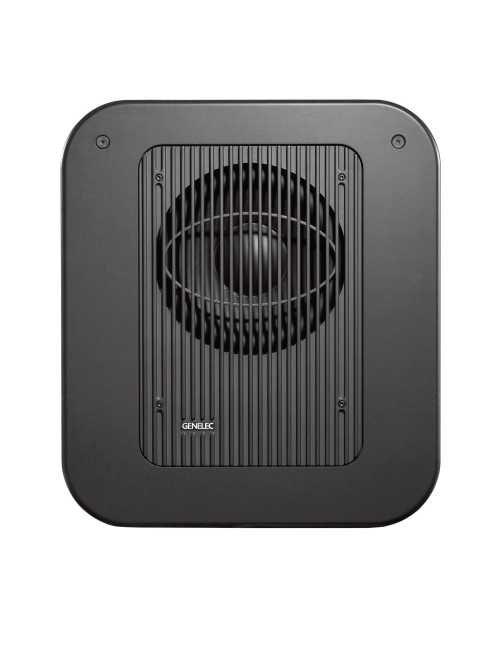

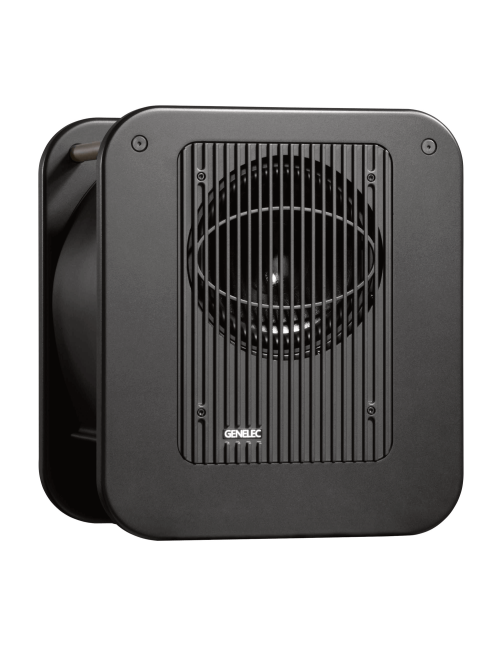

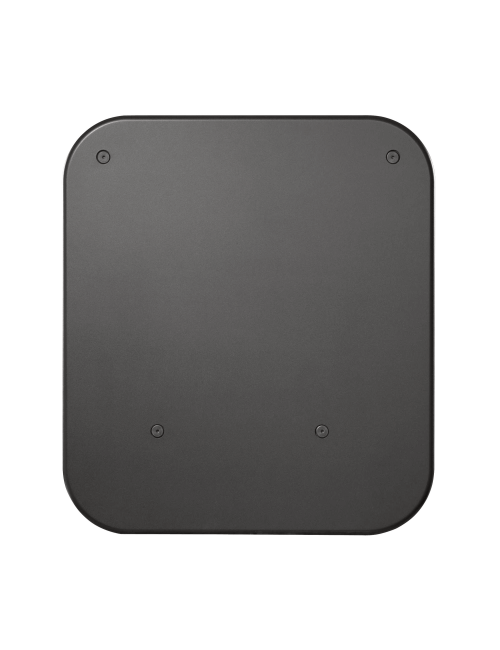

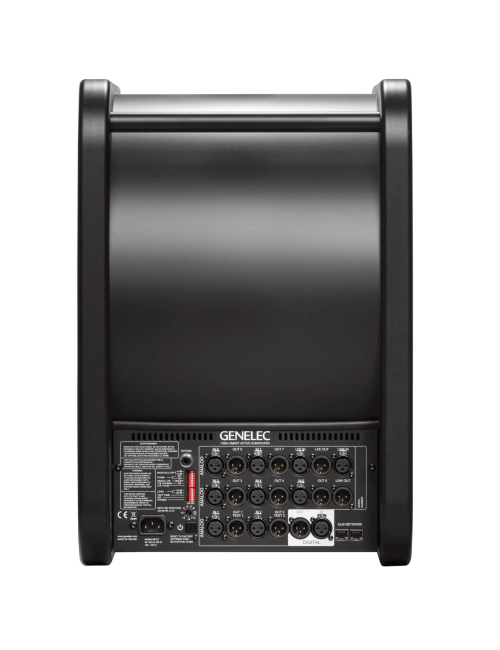

By integrating technology Smart Active Monitoring (SAMTM) 7380A can be fully configured and calibrated via software GLMTM, which automatically adjusts phase, frequency, level and delay depending on the acoustics of the room. It supports stereo or multichannel configurations, with centralized or distributed bass management modes, making it ideal for professional monitoring systems. Compared to the more compact models of the series (7350A, 7360A, 7370A), the 7380A offers superior bass power and extension, while remaining more compact than the 7382A, designed for very large installations.

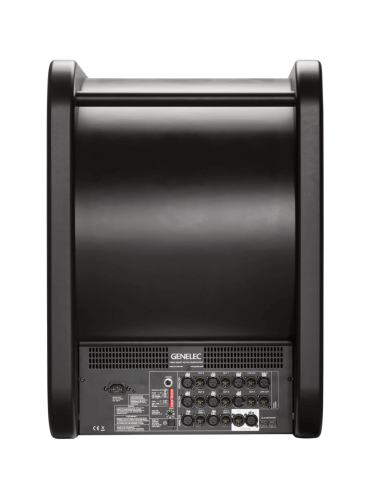

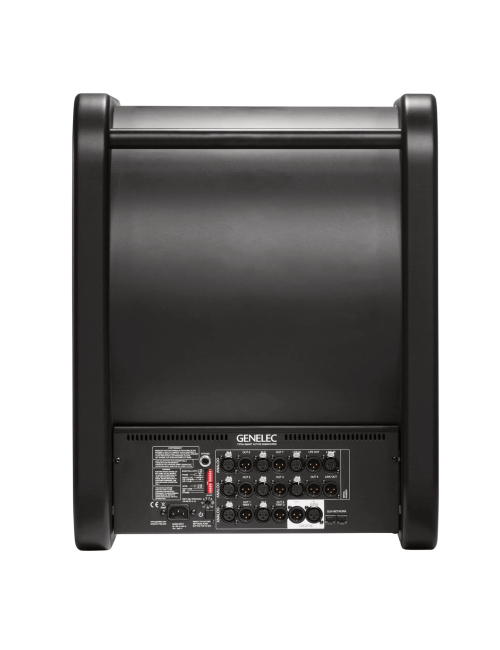

The 7380A is equipped with a complete connector, including analog XLR inputs and outputs, AES/EBU and RJ45 for network control, ensuring easy and flexible integration. Its system Intelligent Signal Sensing (ISSTM) optimizes energy consumption in standby mode. Designed to meet the requirements of sound engineers and professional mixers, this subwoofer guarantees a precise reproduction of low frequencies, ensuring mixing and audio productions faithful to acoustic reality.

Characteristics:

• Subwoofer of active monitoring studio


• Frequency response : 16 Hz - 100 Hz (-6 dB)


• Frequency response accuracy : ±3 dB (19 Hz - 100 Hz)


• SPL max : Short term : ≥119 dB / Crest ≥123 dB


• Amplification : 800 W (Class D)


• Speaker : Diameter 381 mm (15"), cone


• Case Laminar Spiral Enclosure Technology (LSETM)


• 7 x entries Analog XLR / 7 x outputs Analog XLR


• 1 x input and output AES/EBU XLR


• 1 x input Analogue XLR LFE


• 1 x output Analogue XLR LFE


• 2 x RJ45 ports (GLMTM control)


• Dimensions (W x H x P) : 718 x 685 x 492 mm


• Weight : 69 kg

Key Points:

• Ultra-extended frequency response (16 Hz - 100 Hz, -6 dB) for a deep and detailed bass restitution


• Laminar Spiral Enclosure Design (LSETM) ensuring minimum distortion even at high volume


• Smart Active Monitoring Technology (SAMTM) with GLMTM calibration for optimal adaptation to the acoustics of the room


• Class D amplifier of 800 W, offering a maximum SPL of 119 dB (123 dB peak)


• Multi-purpose connector (analog XLR, AES/EBU, RJ45 for GLMTM) compatible with stereo and multichannel systems
