AKG C104

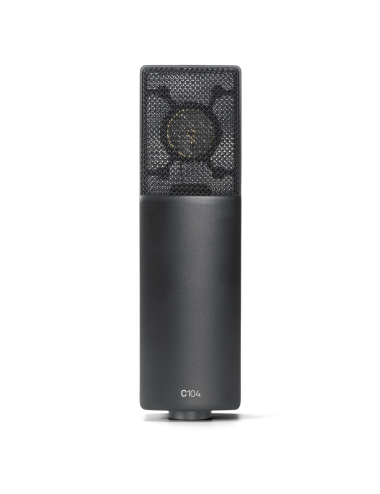

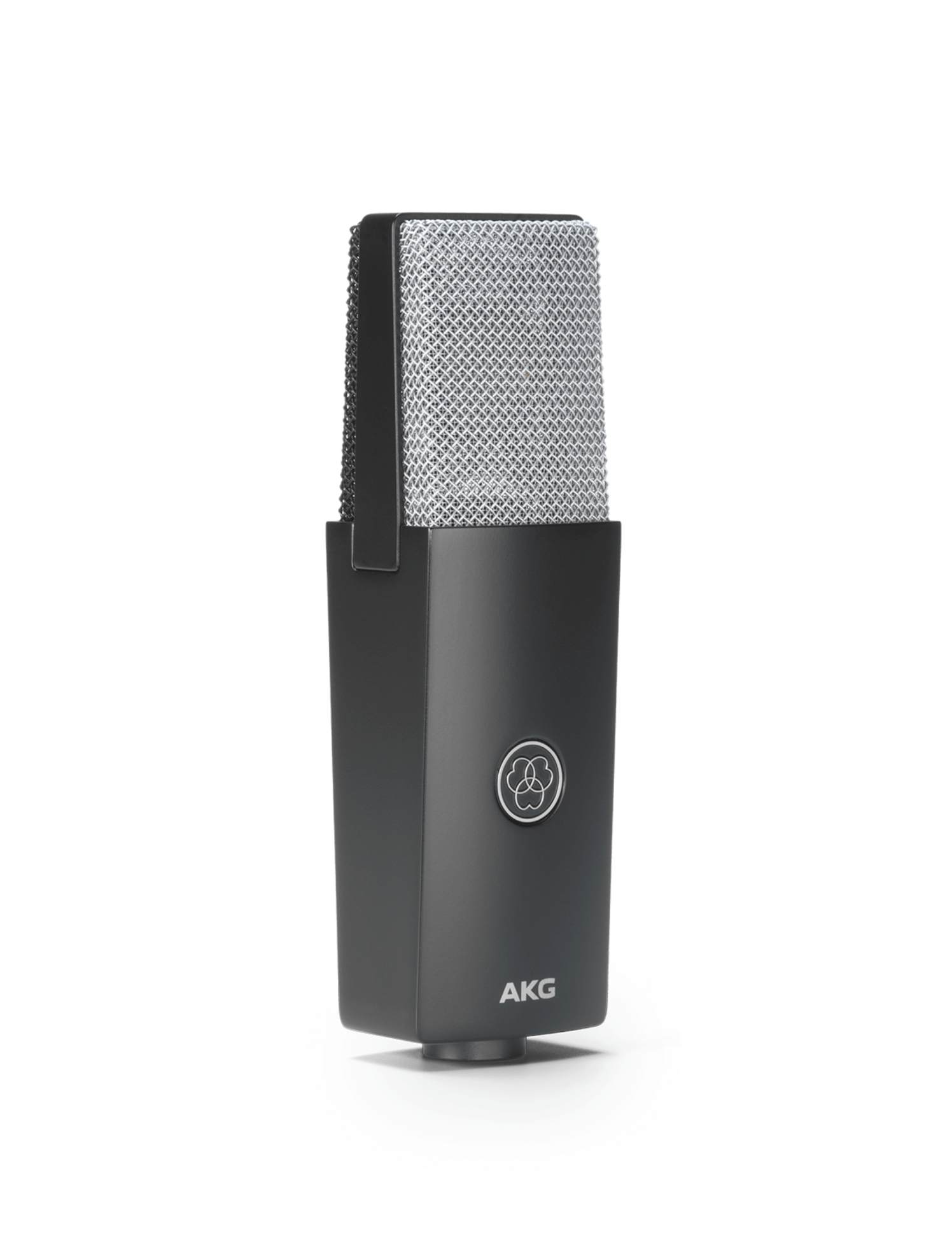

AKG C104 – High-performance large-diaphragm cardioid microphone

The AKG C104 is a large-diaphragm cardioid condenser microphone designed to deliver professional-grade audio capture for modern creators including musicians, podcasters, streamers, sound engineers and videographers. Drawing from AKG’s long-standing acoustic heritage, it captures every nuance with exceptional clarity thanks to its 22 mm electret capsule, its extended 20 Hz–20 kHz frequency response and a transformerless FET circuit ensuring an extremely low noise floor.

The C104 combines sonic precision and versatility: it excels on vocals, acoustic instruments, amps, drums, interviews or ambience recording. Its cardioid polar pattern provides optimal source isolation and effective rejection of unwanted noise, while its 143 dB max SPL allows it to handle the loudest sources without distortion.

Designed to integrate seamlessly into any modern workflow, the C104 features a robust and modern design crafted from 100% recycled PIR metal alloys. Its eco-conscious construction, combined with AKG’s renowned build quality, makes it a durable and reliable tool for intensive daily use.

Ideal for studio environments, streaming, live performance and broadcast applications, the AKG C104 redefines audio capture standards for today’s creators, offering the perfect balance of quality, simplicity and performance.

Specifications:

• Type: Large-diaphragm condenser microphone


• Capsule: 22 mm electret


• Polar Pattern: Cardioid


• Sensitivity: 13.5 mV/Pa (-37.5 dBV)


• Frequency Response: 20 Hz – 20 kHz


• Electrical Impedance: ≤ 200 ohms


• Recommended Load Impedance: ≥ 1,000 ohms


• Self-Noise Level: 14 dB(A) SPL


• Signal-to-Noise Ratio: 80 dB (ref. 1 Pa)


• Max SPL: 143 dB SPL (0.5 % THD)


• Phantom Power: 48 V ± 4 V (IEC 61938)


• Current Consumption: ≤ 5 mA


• Connector: 3-pin XLR (pin 2 hot)


• Dimensions: 158 × 47 × 35 mm


• Weight: 375 g


• Materials: Body made from 100% recycled PIR metals and alloys


• Applications: Studio, live, podcasting, streaming, broadcast



Key Points:

• Professional clarity: large-diaphragm design and low self-noise for exceptional precision.


• Optimal isolation: cardioid pattern ideal for vocals, instruments and close-miking.


• Highly versatile: perfect for music, podcasting, streaming, voice-over and broadcast.


• Wide dynamic handling: 143 dB max SPL, suitable for loud sources such as drums or amps.


• Sustainable design: recycled metals and robust construction for intensive use.
