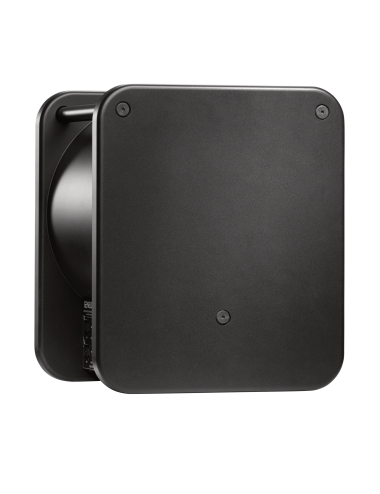

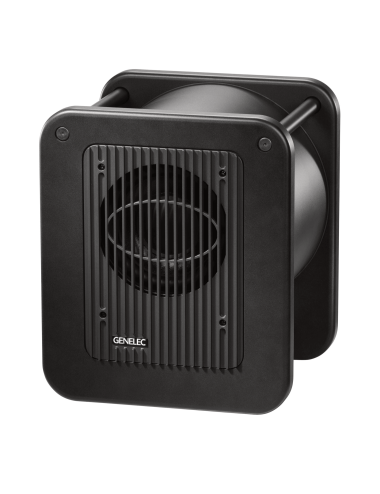

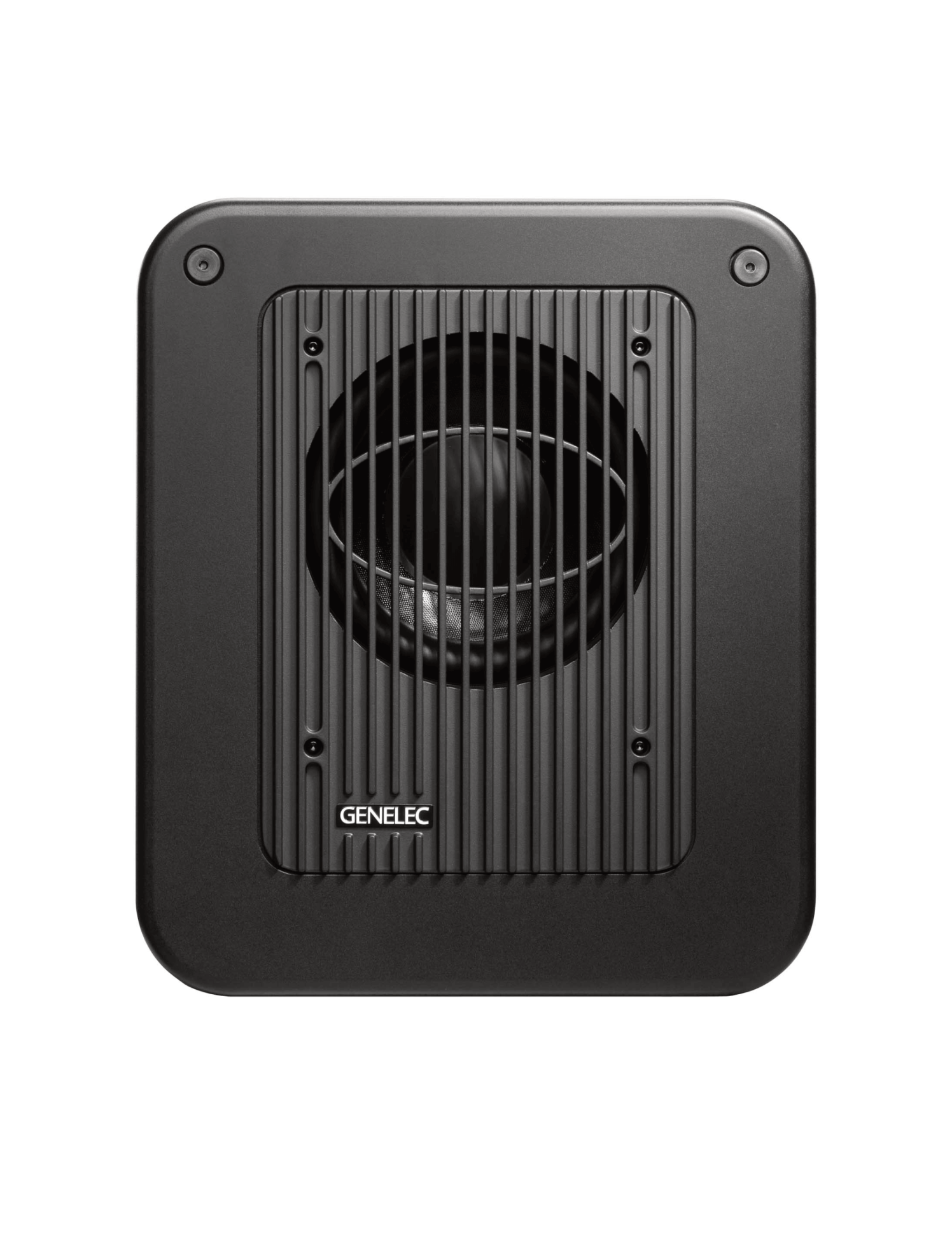

7350A SAM Subwoofer

The 7350A is a compact active subwoofer designed to offer a precise and powerful low frequency extension while perfectly integrating with Genelec monitoring enclosures, including models 8320A and 8330A. Thanks to its extended frequency response from 22 Hz to 160 Hz and its 150 W amplification in class D, it ensures a sound restitution clean and without distortion, even at high levels. Sound bass Management System makes it possible to efficiently distribute serious frequencies between the chamber and satellite speakers, thus optimizing the dynamics and headroom of the listening system.

Integrating technology Smart Active Monitoring (SAMTM) 7350A works with the software GLMTM, which analyzes the acoustics of the part and automatically adjusts levels, phase and cut-off frequencies for perfect integration with speakers. This intelligent calibration ensures that exceptional sound consistency and excellent translation of the mix into different listening systems. Its many entrances and exits Analog XLR and AES/EBU make it an ideal choice for an installation stereo or multichannel.

The 7350A belongs to the range of subwoofers Genelec SAMTM, including models 7360A, 7370A and 7380A, which offer higher sound pressure levels and even deeper bass extension capabilities to adapt to the needs of mixing and post-production studios. With his sober and compact design, sound robust low-reflex housing, and sound 205 mm speaker 7350A is a versatile and efficient solution for demanding audio production environments.

Characteristics:

• Subwoofer of active monitoring studio


• Frequency response : 22 Hz - 160 Hz (-6 dB)


• Frequency response accuracy : ±3 dB (25 Hz - 150 Hz)


• SPL max : 104 dB


• Amplification : 150 W (Class D)


• Speaker : diameter 8" (205) mm, magnetically shielded cone


• Case : optimized bass-reflex


• 6 x entries Analog XLR / 5 x outputs Analog XLR


• 1 x input and output AES/EBU XLR


• 2 x RJ45 ports (GLMTM control)


• Dimensions (W x H x P) : 350 x 410 x 319 mm


• Weight : 19 kg

Key Points:

• Compact and powerful bass box, ideal for speakers 8320A and 8330A


• Frequency response from 22 Hz to 160 Hz, (-6 dB) for a precise refund of serious


• Smart Active Monitoring (SAMTM) and GLMTM calibration for perfect integration


• Bass Management System to optimize system dynamics


• Multi-purpose connectors (analog XLR, AES/EBU, RJ45) for stereo and multichannel configurations
