DPA 4099-DP-1-201-B - Instrument Core+ supercardioid microphone with Double-bass Clip
The 4099 core+ by DPA is a supercardioid condenser microphone designed to capture with remarkable precision the most demanding acoustic instruments. Its 5.7 mm miniature capsule integrates technology Core+, offering a Extended dynamic range a ultra-low distortion and a sound restitution of a exceptional fidelity. He reveals the most subtle shades of each instrument, with a perfect balance between clarity, heat and definition, whether in the studio or on stage. Designed and manufactured in Denmark, this microphone illustrates the excellence of DPA Microphones, recognized around the world for its acoustic precision and the irreproachable quality of its components.
Thanks to his supercardioid directivity, the 4099 core + ensures optimal insulation and a high gain before Larsen while maintaining an open and natural sound image. Its compact and modular design, equipped with the connector MicroLock® Microdot, guarantees complete compatibility with DAD9000 adapters for wired or wireless systems. Its integrated suspension effectively minimizes manipulation sounds and vibrations, while its certified housing Ip58 offers excellent resistance to moisture and dust. A real reference for sound engineers, this microphone offers a neutral, balanced and faithful rendering of the natural sound of each acoustic instrument.

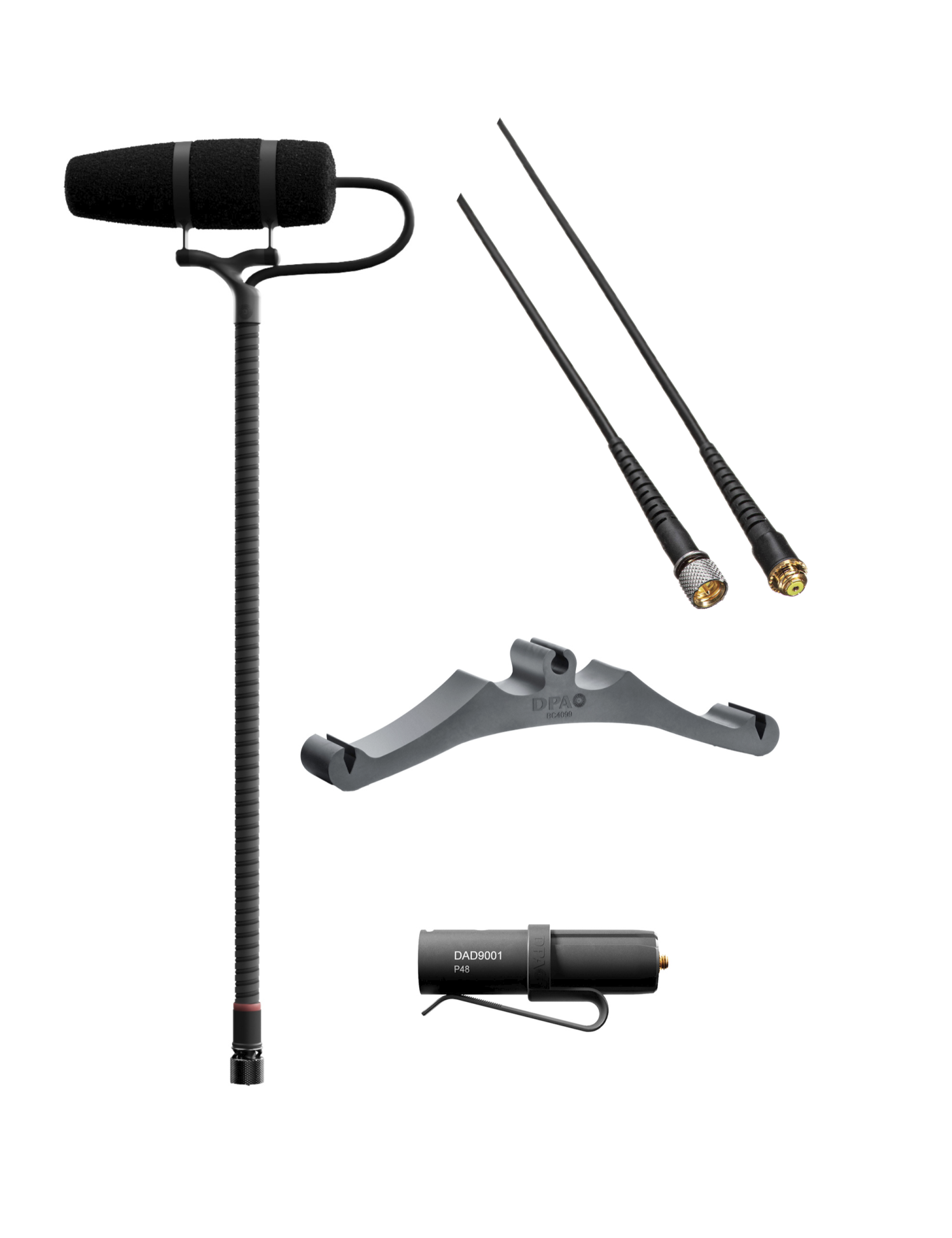

The version DPA 4099-RFP-1-201-b is specially designed for the bass. It understands the Clip BC4099, an optimized support that secures securely on the mi and floor strings, under the easel, for an ideal placement between the key and the easel. This positioning guarantees a perfect balance between attack and resonance, offering a clear and powerful capture, perfectly adapted to the requirements of the game on stage as in the studio. The fastening system has been studied to never damage the finish of the instrument while offering several positioning options according to the musician preference. The whole is completed by theXLR DAD9001 adapterequipped with a bottom-down filtera belt clip and a symmetric active signal Guaranteeing an excellent rejection of electromagnetic noise (CMRR> 60 dB from 50 Hz to 15 kHz). Powered in 48 V ghost, this kit offers a powerful, balanced sound restitution and exceptional purity.
Features and specifications:
- Type : SuperCardioid Miniature condenser Microphone
- Technology : DPA Core + - Ultra-low distortion, extended dynamic range
- Version : Loud SPL (red ring) - up to 145 dB SPL before saturation
- Frequency response : 20 Hz - 20 kHz (+2 dB to 10-12 kHz)
- Sensitivity : 6 MV / PA (-44 dB Re. 1 V / PA)
- Equivalent noise : TYP. 23 dB (a) re. 20 μPa
- Directivity : Supercardioid - Excellent insulation and gain before Larsen
- Signal / noise ratio : 71 dB (A), dynamic range 108 dB (a)
- Output impedance : 30-40 Ω (micro) / 100 Ω via DAD9001 adapter
- Power source : 5-10 V (wireless) or 48 V via DAD9001 (ghost)
- Connector : Detachable MicroLock® (MicroDot compatible)
- Gooseneck length : 140 mm
- Dimensions of the capsule : Ø 5.7 mm × 50 mm
- Weight (kg) : approx. 30 g (micro + clip)
- Protection : IP58 - Resistance to moisture and dust
- Accessories included : Clip BC4099, DAD9001 adapter, windshield
Key Points:
- Technology DPA Core + : natural and ultra-detailed restitution
- Supercardioid directivity : Insulation and maximum resistance to Larsen
- Clip BC4099 : Optimized fixing on bass, stable and safe for the instrument
- XLR DAD9001 adapter : Symmetrical output, cut-out filter and CMRR> 60 dB
- Robust and modular design : Ideal for live and acoustic recording
