Audio-Technica AT4047/SV - The vintage heat of the first FET microphones
The Audio-Technica AT4047/SV is a wide diaphragm capacitor microphone Designed to restore the warm and rich tone of the first FET transistor studio microphones. Thanks to its diaphragm double capsule, it maintains a stable and precise cardioid directivity over the entire spectrum, ensuring a natural, coherent and controlled sound take.
Sound output transformer and its specially adjusted capsule offer a sound colour reminiscent of the classic studio's legendary FET microphones, ideal for voices, strings, acoustic guitars, brass, vocal ensembles or overheads. His great dynamic range, sound low clean noise and its High PLS Make it a versatile tool, capable of managing a wide variety of sound sources, from studio to broadcast, to the most demanding live applications.
Protection in High-tech nickel copper ensures greater stability and sensitivity, while maintaining system minimizes internal reflections for a more open and natural sound reproduction. It also has a low-cut filter 80 Hz and one attenuator 10 dB, allowing to expand its scope of use on powerful sources or in difficult environments.
With its elegant and retro look thanks to a matt silver finish, it comes with the suspension AT8449SV matching, effectively reducing vibration and mechanical noise. A microphone designed according to the strict standards of quality and reliability of Audio-Technica.
Technical specifications:
- Type: Static microphone with wide capacitor diaphragm
- Directivity: Cardioid
- Double diaphragm capsule: Accurate management across the spectrum
- Sound signature: Transformer coupling output for increased harmonic richness
- Construction: Nickel copper capsule protection
- Commands:
• Low-cut filter 80 Hz (12 dB/octave)
• 10 dB switchable attenuator
- Frequency response: 20 - 18000 Hz
- Sensitivity: –35 dB (17.7 mV) ± 2 dB, 1V/Pa
- Maximum sound pressure: 149 dB SPL (1 kHz, 1% THD); 159 dB SPL with pad -10 dB
- Dynamics: 140 dB (1 kHz, SPL max.)
- Signal to noise ratio: 85 dB (1 kHz, 1 Pa)
- Phantom power : 48V DC, 3.0 mA
- Dimensions: 170 mm (L); Ø 53.4 mm
- Weight: 410 g
- Connector: Integrated 3-pin XLRM output
- Accessories provided:
• Suspension AT8449aSV
• Dust protection

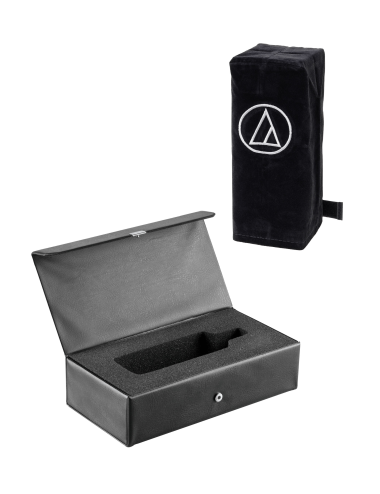

• Portable protective case
Key Points:
- Its rich and warm vintage inspired by the first FET microphones.
- Double diaphragm capsule providing stable and accurate cardioid directivity.
- Output transformer ensuring unique musicality and harmonic warmth.
- Low clean noise and extended dynamic range for the most demanding recordings.
- Lower cut filter 80 Hz and pad -10 dB for maximum versatility.
- Matte silver finish for an elegant and retro design.
- Ideal for voice, strings, acoustic guitars, brass, vocal ensembles and overheads.
- Delivered with AT8449aSV suspension to reduce vibration and mechanical noise.
